User Manual for Husqvarna 230iB Blower
Comprehensive user guide for the Husqvarna 230iB electric blower. Includes detailed instructions on assembly, operation, maintenance, safety protocols, and technical specifications.
PDF source: Français · summary: English
Quick answers from the manual
Quick answer
- The Husqvarna 230iB is a 36V battery-powered electric blower. It features a brushless motor, cruise control, and a power boost function. It is designed for clearing leaves and debris from lawns and pathways. p. 2
Key actions
- Start the blower p. 12
- Stop the blower p. 12
- Charge the battery p. 12
First start
- Ensure the battery is fully charged, attach the blower tube and nozzle, check the air inlet for obstructions, and power on using the keypad. p. 11, 12
Show 4 more answers Show less
Problems and fixes
Green LED flashing
Charge the battery.
p. 15Maintenance and reset
- No specific reset procedure is listed; maintenance involves regular cleaning and inspection. p. 14
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Motor | BLDC (brushless) 36V | Motor type | p. 16 |
| Weight | 2.5 kg / 5.5 lb | Weight without battery | p. 16 |
| Max. air velocity | 60.8 m/s / 136 mph | Impeller fan performance | p. 16 |
Where to find it in the PDF
- Introduction and Overview p. 2
- Safety Instructions p. 3, 4, 5, 6
- Assembly p. 10, 11
- Operation p. 11, 12, 13
- Maintenance p. 13, 14
- Troubleshooting p. 15
- Technical Data p. 16, 17
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Husqvarna 230iB is a battery-powered electric blower designed for clearing leaves and debris. Before operating, ensure you wear appropriate personal protective equipment (hearing protection, eye protection, gloves, and boots). Maintain a safety distance of at least 15 meters from other people or animals. Always remove the battery before performing maintenance or assembly.

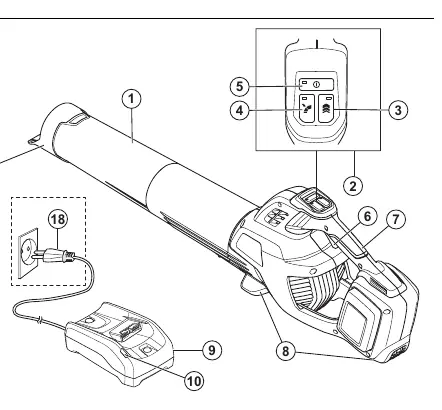

Product overview
The blower features a keypad with a power button, power boost button, and cruise control. The battery compartment is located at the rear, and the unit includes a blower nozzle and a scraper tool for loosening debris.
Assembly
- Blower tubes: Attach the blower nozzle to the tube until the tab locks into the hole. Apply water-based lubricant to the tube ends to facilitate assembly.
- Scraper tool: Attach the scraper tool to the blower nozzle until it locks into place.
- Wall charger: Install the battery charger on a wall using the provided screws and wall plugs. Do not use an electric screwdriver to avoid damaging the charger.
Operation
- Starting: Push and hold the power button until the green LED light turns on. Use the power trigger to control the speed.
- Cruise control: Press the cruise control button to set the desired airflow without holding the trigger. Press again to stop.
- Power boost: Press the power boost button for maximum airflow. Release to return to the initial airflow.
- Stopping: Release the power trigger and hold the power button until the green LED turns off.
Maintenance
Regular maintenance is essential for safety and performance. Follow the schedule below:
- Daily: Clean the exterior with a dry cloth (never use water), check handles, ensure the power button and trigger function correctly, check nuts/screws, inspect battery integrity, and check charger functionality.
- Weekly: Check that all connections are intact and free from dirt.
- Monthly: Check connections between the battery and the machine, and between the battery and the charger.
Troubleshooting
If the keypad green LED flashes, the battery power is low; charge the battery. If the battery warning LED flashes, there is a temperature deviation (too hot or too cold) or the battery is empty. If the battery warning LED stays on, there is a permanent battery error; contact your dealer.
Technical data
The 230iB uses a 36V BLDC (brushless) motor. It weighs 2.5 kg (5.5 lb) without the battery. The maximum air velocity is 60.8 m/s (136 mph), and the maximum air volume is 18.4 m³/min (650 cfm).
Manufacturer information
Husqvarna
Practical help
Common problems
Green LED on keypad flashing
Battery power is low. Charge the battery.
Battery warning LED flashing
Temperature deviation (battery too hot or cold) or battery is empty. Let the battery reach a safe temperature or charge it.
Battery warning LED stays on
Permanent battery error. Contact your dealer.
Charging LED is red
Permanent battery charger error. Contact your dealer.
Before use
- Check the air inlet for dirt and cracks.
- Clean off grass and leaves from the product.
- Ensure the product works correctly.
- Check that all nuts and screws are tight.
- Ensure the battery is fully charged.
- Wear approved hearing and eye protection.
Show more Show less
Specs in practice
- Weight (without battery)
- 2.5 kg / 5.5 lb
- Max. air velocity
- 60.8 m/s / 136 mph
- Max. air volume
- 18.4 m³/min / 650 cfm
Images and diagrams
- Overview of the blower, keypad, and battery components.
- Assembly instructions for the blower tubes and scraper tool.
- Wall mounting instructions for the battery charger.
- Battery insertion and removal procedure.
- Keypad operation for power, cruise control, and boost.
Model compatibility
- Use only Husqvarna original batteries (BLi22).
- Use only Husqvarna branded chargers (QC250, 40-C80).
