This document provides the technical specifications and operating parameters for the Hviero 100X 3mm Flat Top LED. It is intended for use by electronics hobbyists and engineers integrating these components into circuits. Always ensure proper current limiting is applied to prevent damage to the diode.
Product Overview

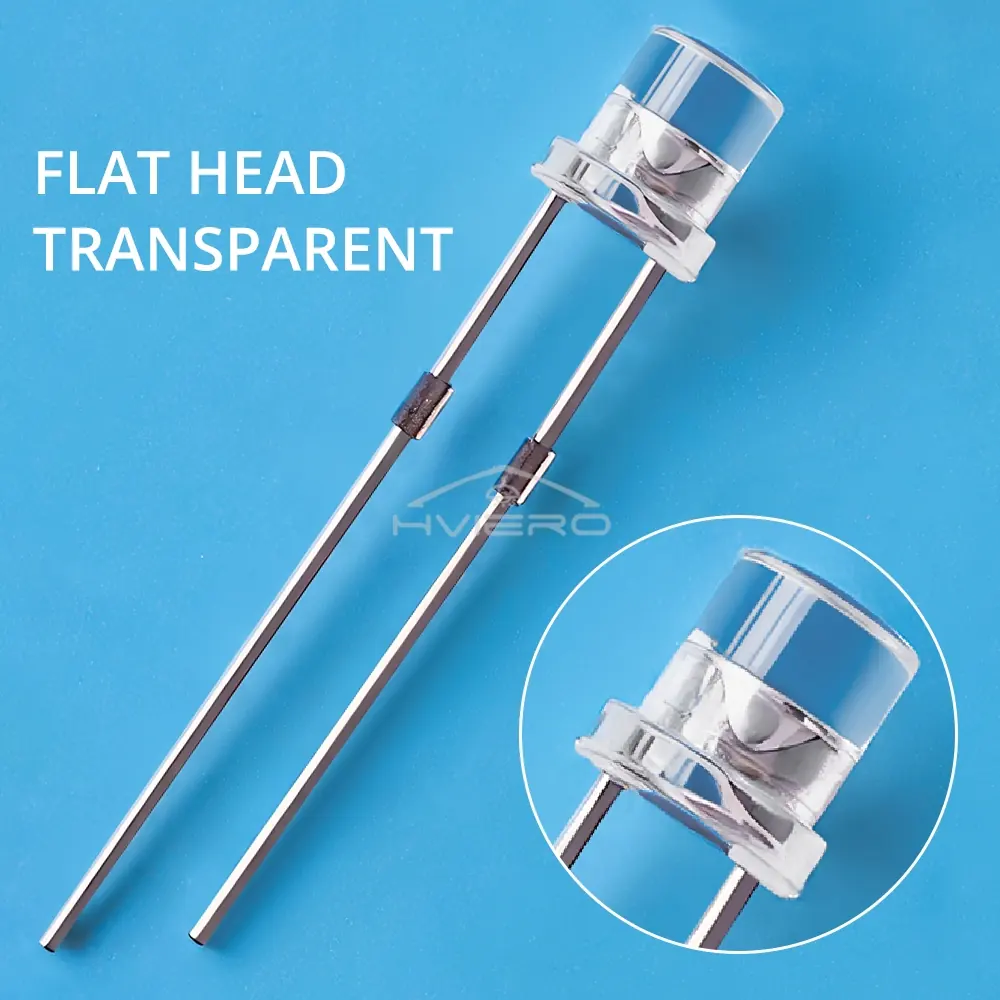

The Hviero 100X is a 3mm flat-head transparent LED diode. It is designed for various lighting and indication applications, offering a 180-degree viewing angle and a long operational lifespan of up to 100,000 hours.

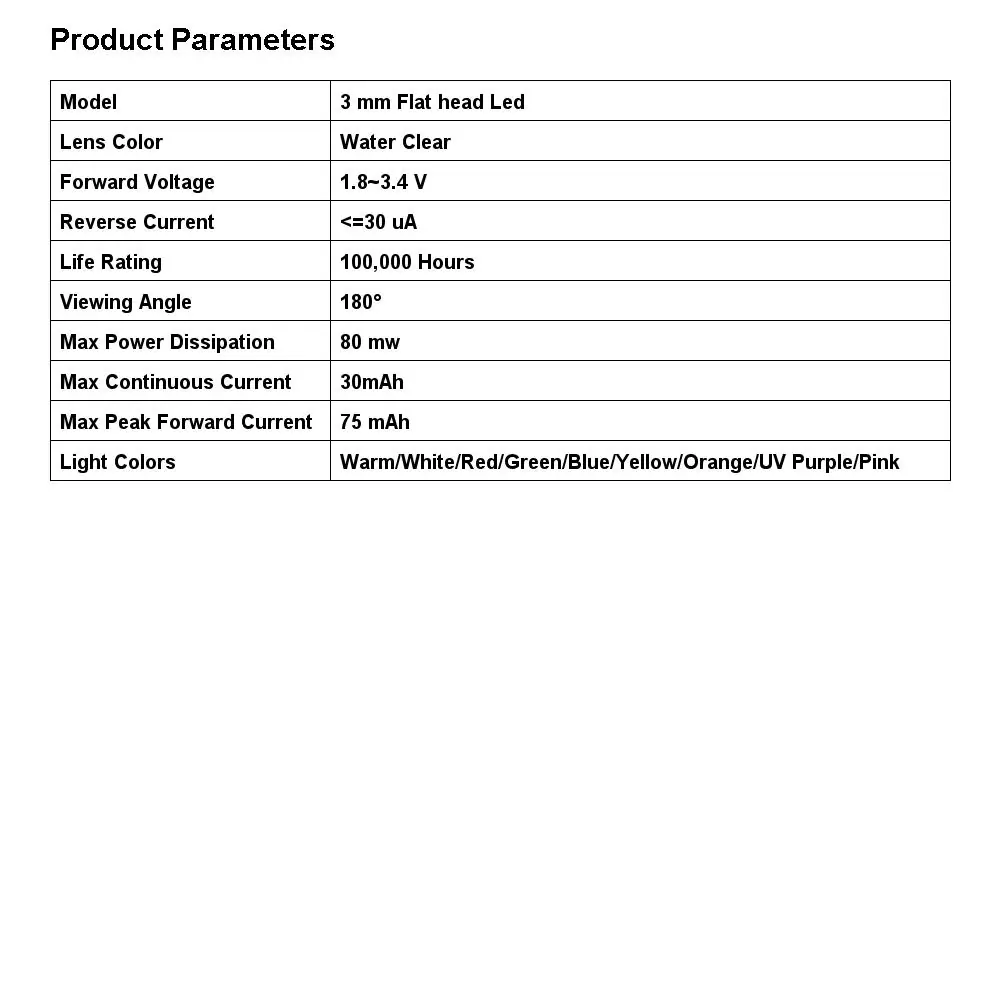

Technical Specifications
The following parameters apply to the 3mm Flat Head LED:
- Lens Color: Water Clear
- Forward Voltage: 1.8V - 3.4V (varies by color)
- Reverse Current: <=30 uA
- Life Rating: 100,000 Hours
- Viewing Angle: 180°
- Max Power Dissipation: 80 mW
- Max Continuous Current: 30 mA
- Max Peak Forward Current: 75 mA
Operating Data
The electrical characteristics vary depending on the color of the LED. Please refer to the following data for your specific component:
- Blue: 3.0-3.2V, 1000-1500mcd, 460-465nm
- Green: 3.0-3.2V, 2000-3000mcd, 520-525nm
- Red: 1.8-2.0V, 600-800mcd, 620-625nm
- Warm White: 3.2-3.4V, 2000-3000mcd, 3000-3200k
- Yellow: 2.0-2.2V, 600-800mcd, 587-590nm
- White: 3.2-3.4V, 2000-3000mcd, 6500-7000k
- Pink: 3.0-3.2V, 600-800mcd, 649-651nm
- Purple: 3.0-3.2V, 100-200mcd, 395-400nm
- Orange: 2.0-2.2V, 600-800mcd, 605-610nm
Dimensions
The LED features a standard 3mm head diameter. The total length of the component is 22mm, with a head height of approximately 3.1mm.
Practical help
Common problems
LED does not light up
Check the polarity (the long leg is the positive anode, the short leg is the negative cathode) and ensure the power source voltage matches the specific color requirements (1.8V-3.4V).
LED burns out or dims quickly
Ensure the current does not exceed the Max Continuous Current of 30mA. Use an appropriate current-limiting resistor in your circuit.
Before use
- Verify the forward voltage requirements for the specific LED color.
- Ensure the power source is current-limited to prevent damage.
- Check polarity before soldering or inserting into a breadboard.
- Confirm the operating environment is within the power dissipation limits (80mW).
Specs in practice
- Forward Voltage
- The voltage range required to operate the LED, which varies by color (1.8V to 3.4V).
- Luminance (mcd)
- The brightness intensity of the LED, measured in millicandelas.
Images and diagrams

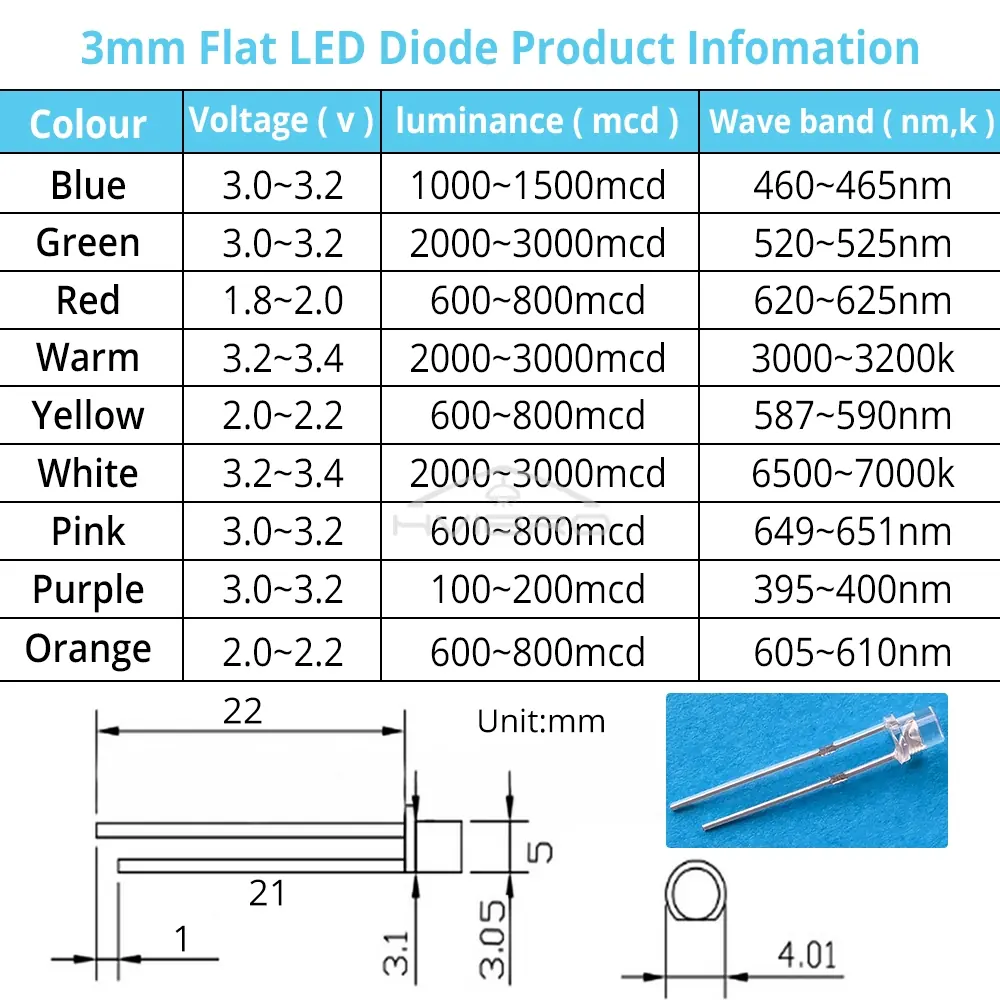

- The technical drawing shows the LED dimensions: 22mm total length, 5mm head diameter, and 3.1mm/3.05mm head height.
Model compatibility
- Compatible with standard 3mm LED mounting hardware.
- Requires current-limiting resistors in most circuit applications.
