User Manual for Hviero 10LED Work Light
Quick guide for the Hviero 10LED work light. Includes wiring instructions, beam pattern details, dimensions, and technical specifications for 12V automotive lighting.
Table of contents
Manual images
Click an image to enlargeQuick Guide
The Hviero 10LED work light is a high-performance lighting solution designed for 12V DC automotive and off-road applications. It features a combination beam pattern, IP67 waterproof rating, and an adjustable mounting bracket.
Wiring Instructions
The device features a three-wire connection system. Ensure proper insulation and secure connections during installation:
- Positive: Connect to the positive terminal of the power source.
- Negative: Connect to the negative terminal (ground).
- Flash Mode: Connect as required to activate the flash functionality.
Beam Pattern
The light is engineered with a dual-purpose beam design to maximize visibility:
- Spot Beam: 30-degree angle for long-distance illumination.
- Flood Beam: 60-degree angle for wide-area coverage.
Installation and Adjustment

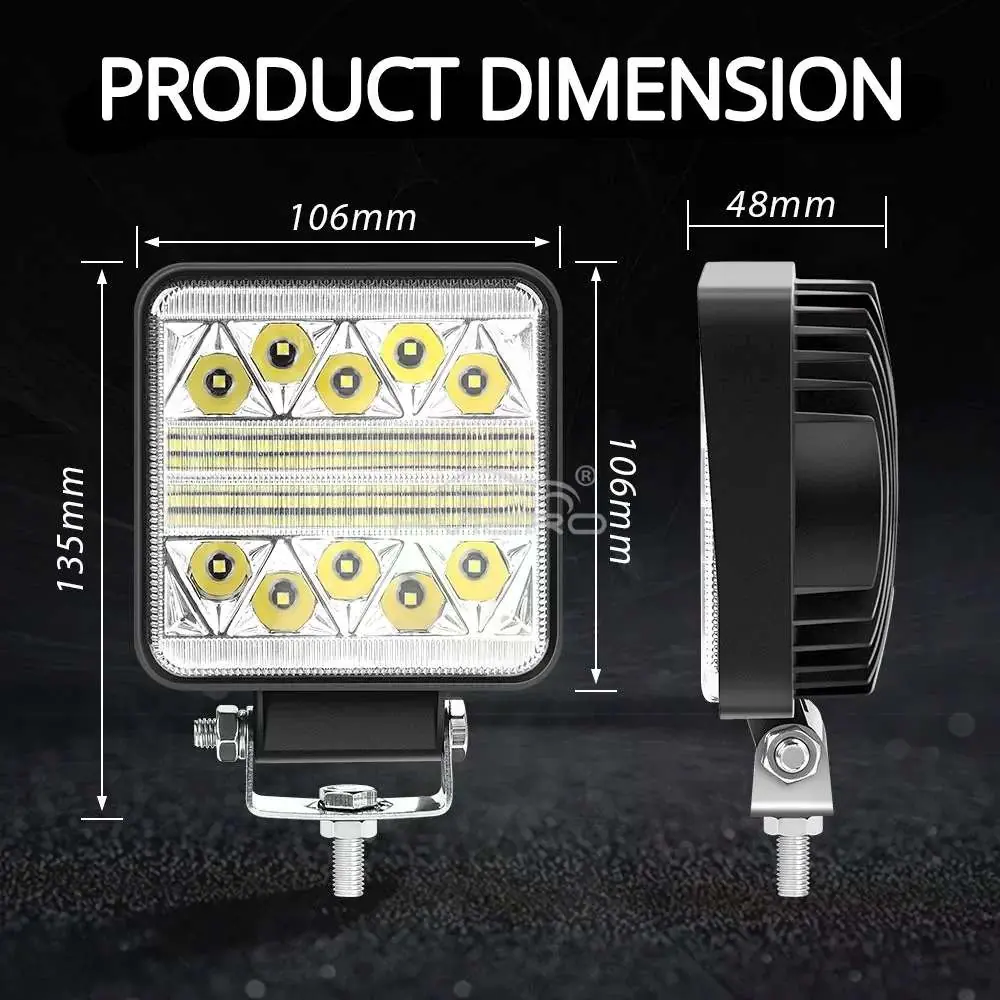

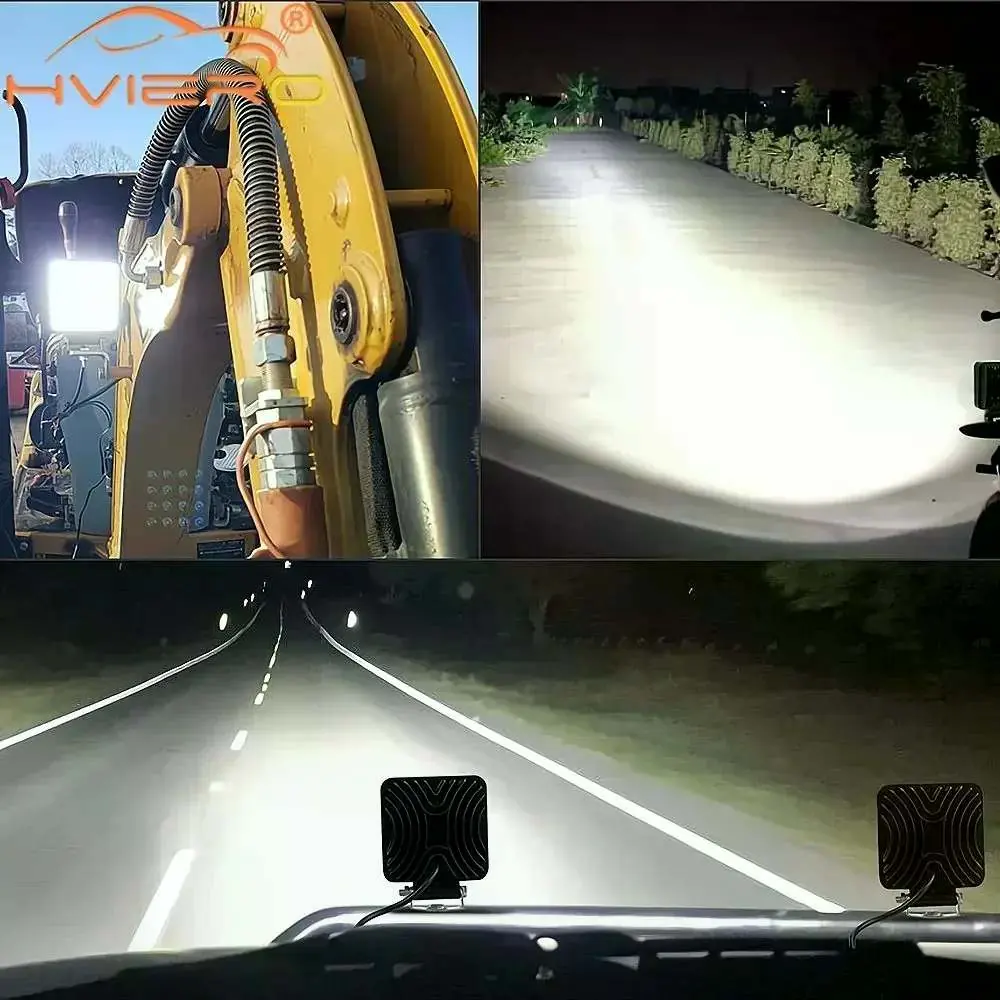

The unit comes with an adjustable bracket that allows for 180-degree rotation, enabling precise aiming of the light beam. Ensure the mounting surface is stable and capable of supporting the weight of the unit. The compact design (approximately 4 inches) allows for versatile installation locations, such as roof racks, bumpers, or specialized work equipment.

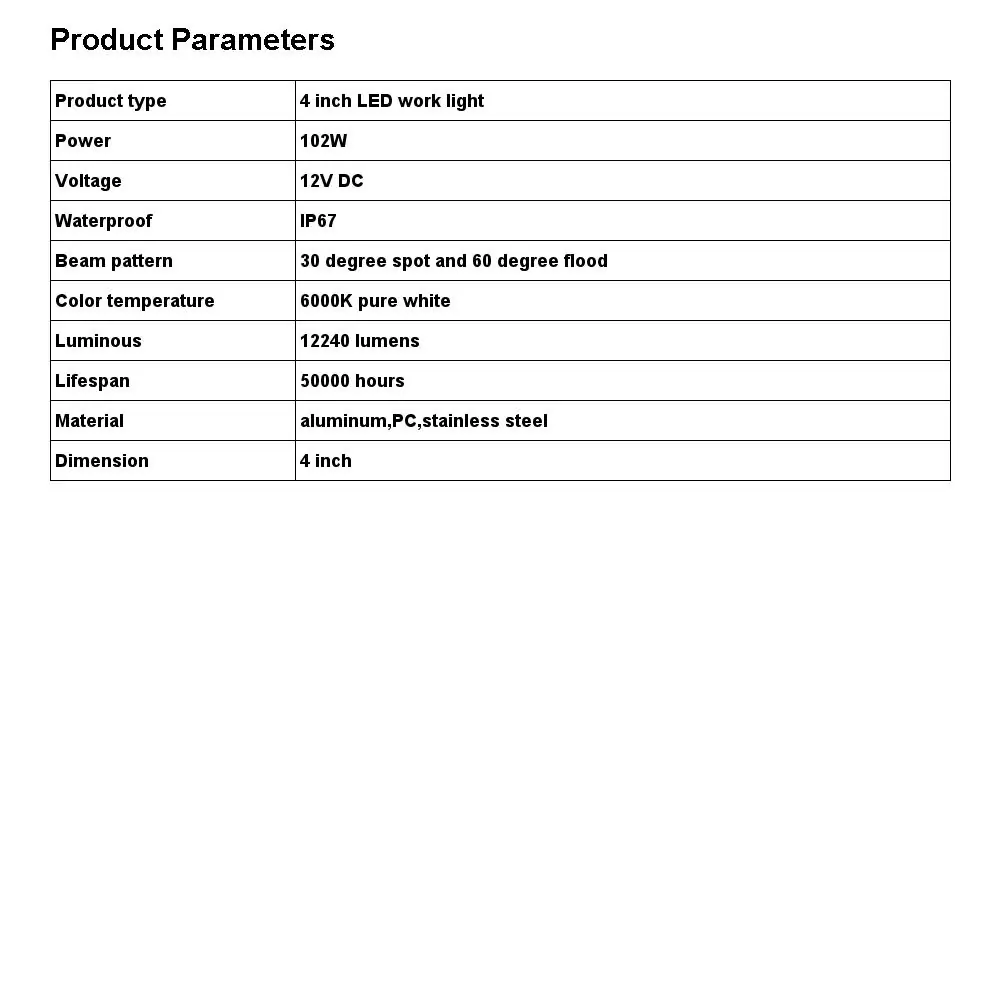

Technical Specifications
The following parameters define the operational capabilities of the unit:
- Power: 102W
- Voltage: 12V DC
- Waterproof Rating: IP67
- Color Temperature: 6000K (Pure White)
- Luminous Flux: 12240 lumens
- Lifespan: 50,000 hours
- Material: Aluminum, PC, Stainless Steel
Practical help
Common problems
Light does not turn on
Verify that the power source is 12V DC and check that the Positive and Negative wires are securely connected.
Water ingress

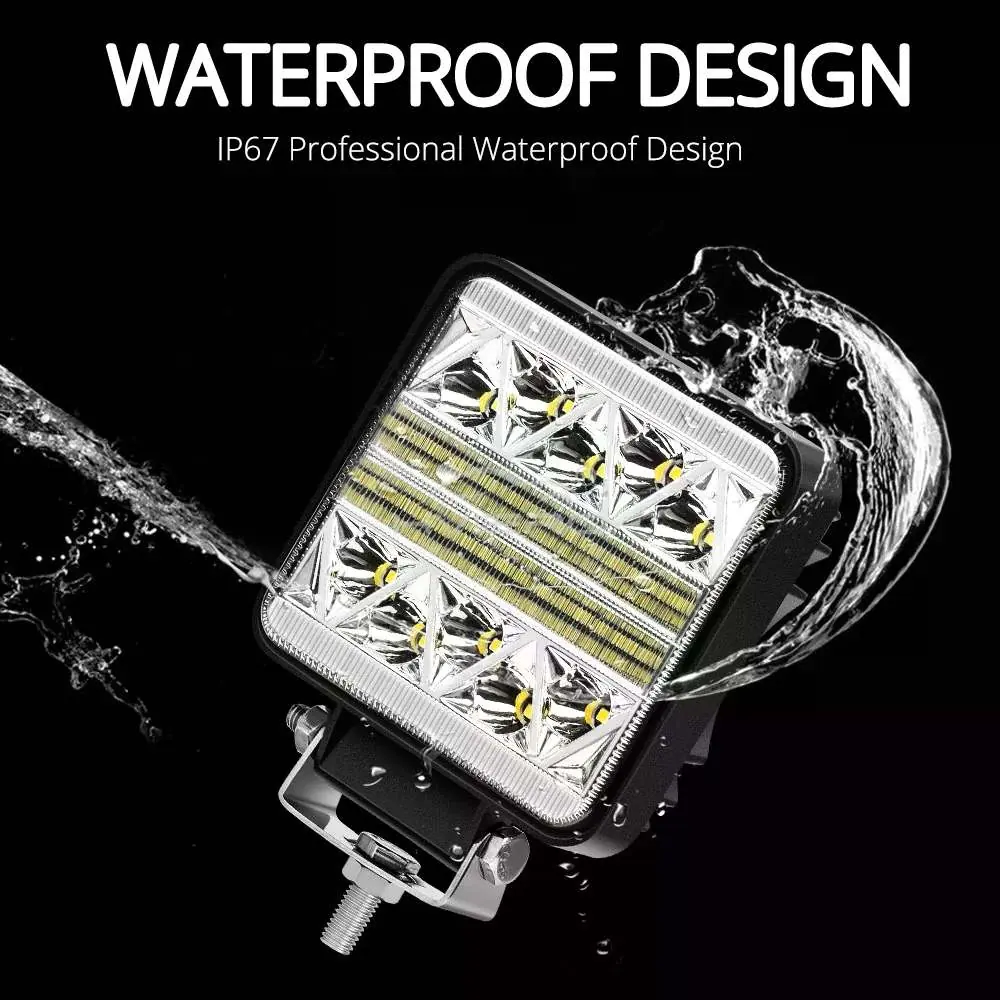

While the unit is IP67 rated, ensure the housing is not cracked and that all mounting hardware is tightened correctly to maintain the seal.
Before use
- Confirm the vehicle or power system provides 12V DC.
- Identify the three wires: Flash Mode, Negative, and Positive.
- Ensure the mounting surface is flat and stable.
- Check that the bracket hardware is included and intact.
Specs in practice
- 12240 Lumens
- The total light output intensity.
Images and diagrams

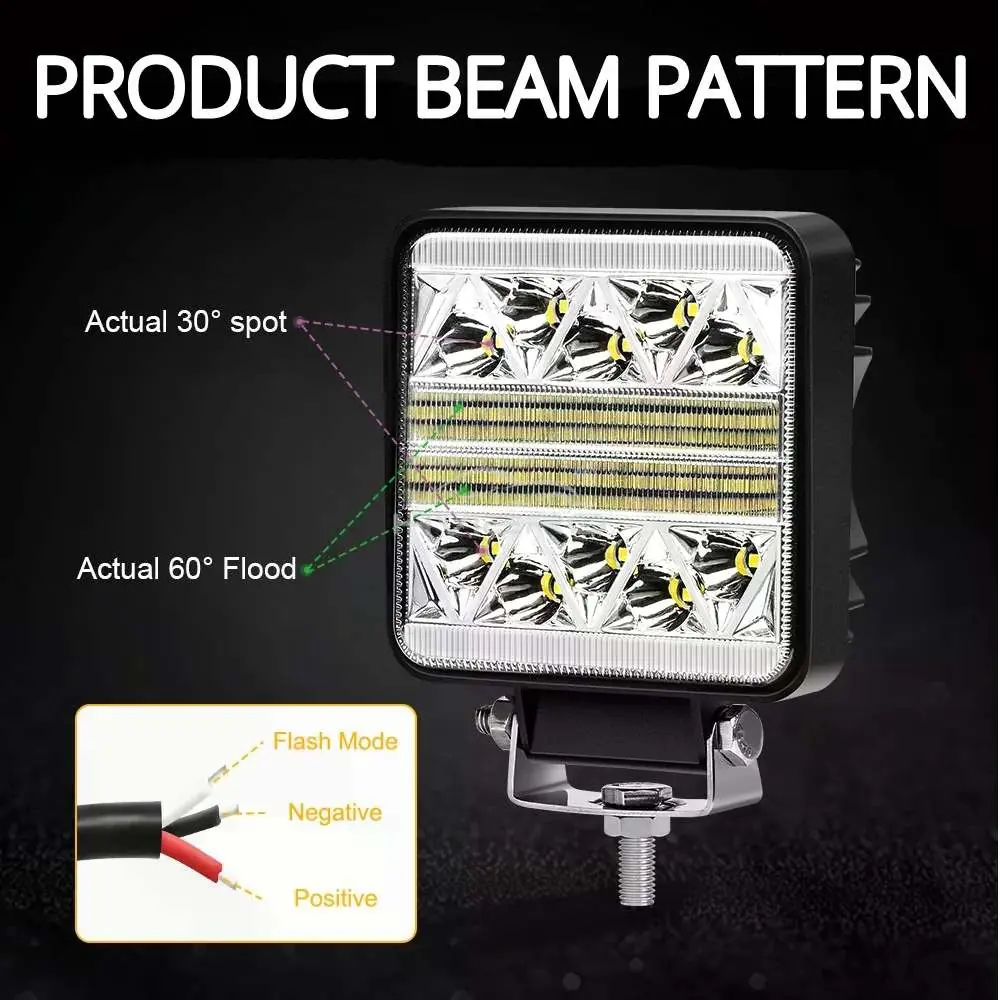

- The wiring diagram identifies the three-wire configuration: Flash Mode, Negative, and Positive.

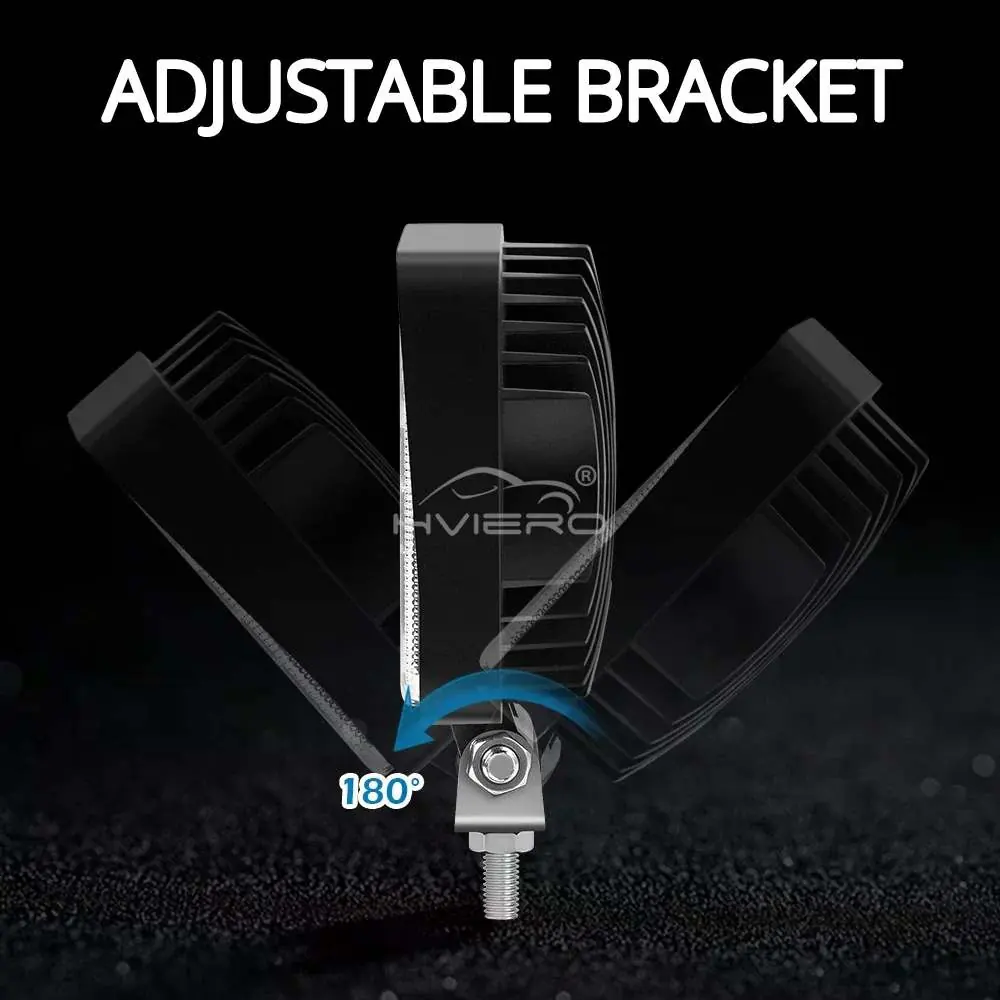

- The bracket diagram illustrates the 180-degree adjustment range for aiming the light.
Model compatibility
- Designed exclusively for 12V DC electrical systems.
