Hyundai MWM 1417W Microwave Oven User Manual

Quick guide from the manual

This document provides essential instructions for the safe and proper use of the Hyundai MWM 1417W microwave oven. Key safety measures include never operating the oven with the door open, ensuring the oven is properly grounded, and never running the oven empty, as this can damage the magnetron. Always keep the oven clean to prevent surface damage and potential hazards.

Device description

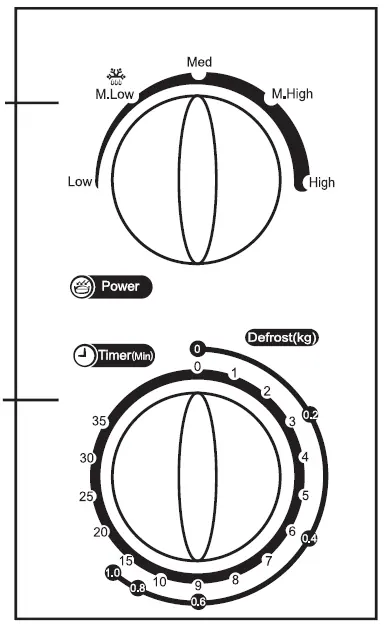

The oven comes with a glass tray and a turntable ring assembly. The control panel features a power level knob and a timer knob.

Installation

• Place the oven on a level surface with at least 20 cm of clearance from adjacent walls.
• Maintain at least 30 cm of free space above the oven.
• Do not remove the feet from the bottom of the oven.
• Ensure the voltage and frequency of your power outlet match the rating label on the oven.
• Do not install the oven near heat sources or in damp areas.

Operation

To operate the oven:

1. Turn the power knob to the desired power level.
2. Turn the timer knob to the required cooking time.
3. The oven will start automatically.
4. When the time expires, a signal will sound.
5. Always set the timer to 0 when the oven is not in use.

Cleaning and maintenance

• Always disconnect the oven from the power supply before cleaning.
• Clean the interior with a slightly damp cloth after each use.
• Wash accessories in soapy water.
• Keep the door frame, seals, and surrounding parts clean.

Troubleshooting

If the oven does not start, check if the power cord is plugged in securely, check the fuse or circuit breaker, or test the outlet with another appliance. If the oven does not heat, ensure the door is closed properly. If the glass tray makes noise, clean the roller rest and the bottom of the oven.

Technical specifications

• Capacity: 17 liters
• Power levels: 5
• Microwave power: 700 W
• Power consumption: 1050 W
• Timer: 35 minutes
• Turntable diameter: 255 mm
• Dimensions: 44 x 25.8 x 33.5 cm
• Weight: 10 kg
