Installation guide for IKEA ONNERUP kitchenette

Important Safety Information

Warning: Serious or fatal crushing injuries can occur from furniture tip-over. To prevent this, the furniture must be permanently fixed to the wall using the provided wall attachment devices. Screws and plugs for wall mounting are not included, as they depend on your specific wall material. Consult a professional if you are unsure about the appropriate hardware for your walls.

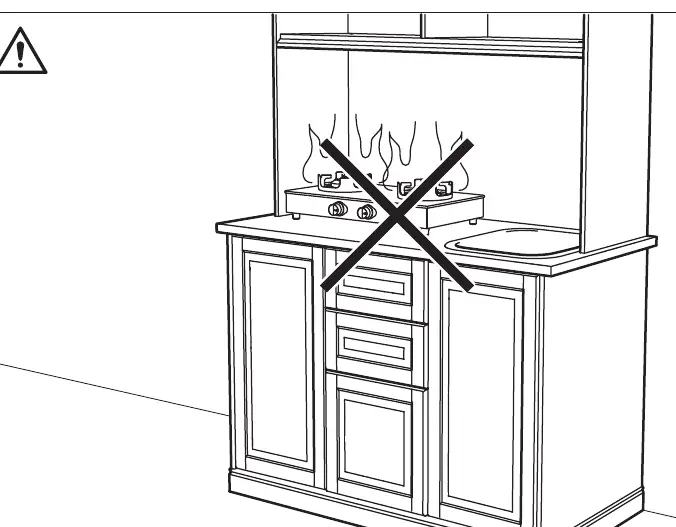

Usage Restriction: Do not place gas stoves on the kitchenette surface.

Tools Required

For assembly, you will need a flat-head screwdriver, a cross-head screwdriver, and a spirit level to ensure the unit is installed correctly.

Assembly Instructions

The assembly process involves multiple steps, requiring careful attention to the provided diagrams. Ensure you have all parts listed in the manual before beginning. The assembly requires two people for lifting and positioning the unit.

• Follow the numbered steps sequentially (1-101).

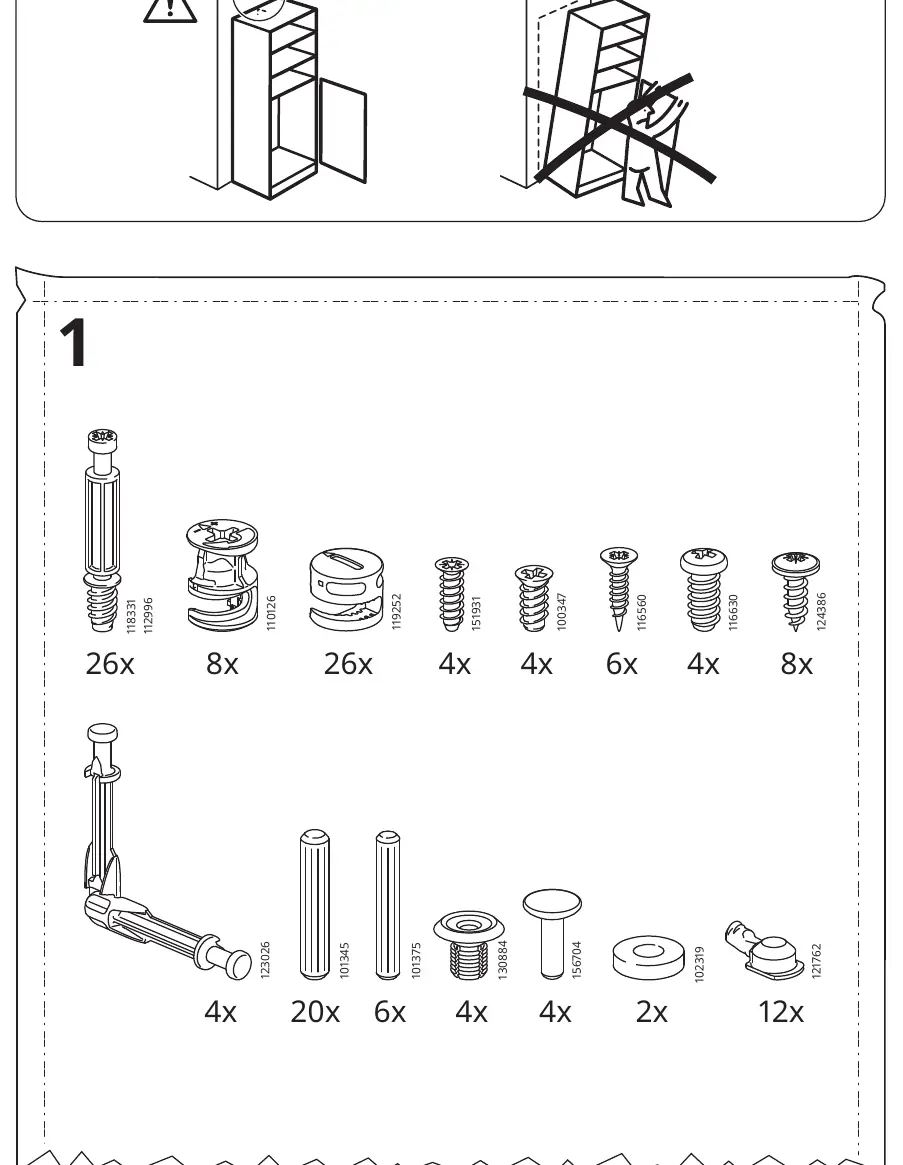

• Use the provided hardware (screws, dowels, cam locks) as indicated in each step.
• Ensure all cam locks are tightened correctly to secure the panels.
• The unit must be leveled during installation using the adjustable feet.

Sink Installation

When installing the sink, note that silicone is not included in the package. You must purchase suitable silicone sealant separately to seal the sink to the countertop.

Adjustments and Maintenance

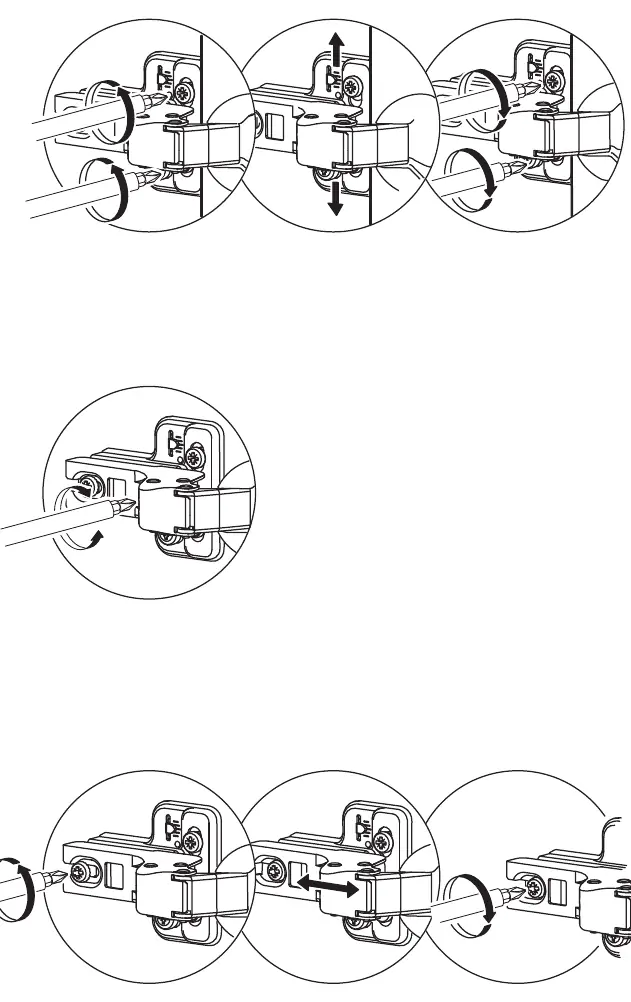

Once assembled, you may need to adjust the hinges to ensure doors and drawers align correctly. The manual provides specific diagrams for hinge adjustment (page 72) to ensure smooth operation.
