Assembly instructions for Tchibo 2-Sided Stock Picking Cage Cart 148200CE28XXV
Quick guide for assembling and using the Tchibo 2-Sided Stock Picking Cage Cart (148200CE28XXV). Includes safety warnings, assembly steps, and weight limits.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides assembly and safety instructions for the Tchibo 2-Sided Stock Picking Cage Cart. Before starting, ensure you have all parts listed in the parts list. Assemble the product on a soft, even surface to prevent damage. Always wear work gloves during assembly to avoid injury from metal parts.
Safety information
- Danger to children: Keep packaging materials (bags, films) away from children to prevent suffocation. Keep children away during assembly due to small parts that pose a choking hazard.
- General safety: Always place the product on a level, non-sloping surface. Do not stand or sit on the product.
- Intended use: This product is for indoor use only. Protect it from moisture. It is designed for private household use and is not suitable for commercial purposes.
Assembly instructions
Follow the steps provided in the manual carefully:
- Step 1-2: Assemble the frame using the provided screws (S1) and parts (1, 5, G). Attach the wheels (D, E) to the frame. Ensure wheels with the brake function are positioned at the front.
- Step 3-4: Attach the shelves (2) to the frame until they click into place.
- Step 5-6: Attach the hinge mechanisms (A, B) to the shelves using screws (S2) and nuts (H).
- Step 7-8: Finalize the assembly by securing the hinges and attaching the caps (C1, C2).
- Step 9: When pulling out the hinge, be careful to avoid getting fingers caught.

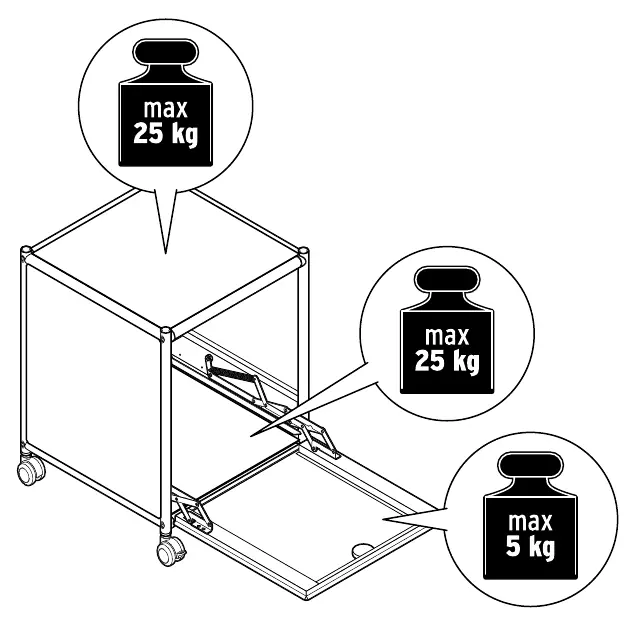

Usage and weight limits
Observe the following maximum load capacities to ensure safety and prevent damage:
- Top shelf: Max 25 kg
- Middle shelf: Max 25 kg
- Bottom/Front shelf: Max 5 kg
Care and maintenance
Do not use abrasive or caustic cleaning agents or hard brushes. Clean surfaces with a slightly damp cloth and wipe dry with a dry cloth.
Service and support
If a part is missing or broken, refer to the service information on the last page of the manual. For further assistance, visit the Tchibo website for your specific region (e.g., www.tchibo.de/service, www.tchibo.cz/contact, www.tchibo.pl/contact).
Official resources from the manual
Manufacturer information
Tchibo GmbH
Practical help
Common problems
Part missing or broken
Refer to the service information on the last page of the manual to contact customer support.
Difficulty assembling metal parts
Wear work gloves to protect hands from sharp edges and ensure you are working on a soft, even surface.
Wheels not locking or positioning correctly
Ensure wheels with the brake function are installed at the front of the cart.
Before use
- Check all parts against the parts list on page 7-8.
- Wear work gloves during assembly.
- Assemble on a soft, even surface (use transport cardboard).
- Ensure wheels with brake function are at the front.
- Verify all screws are tightened securely.
Specs in practice
- Max load (top/middle)
- 25 kg
- Max load (bottom/front)
- 5 kg
Images and diagrams

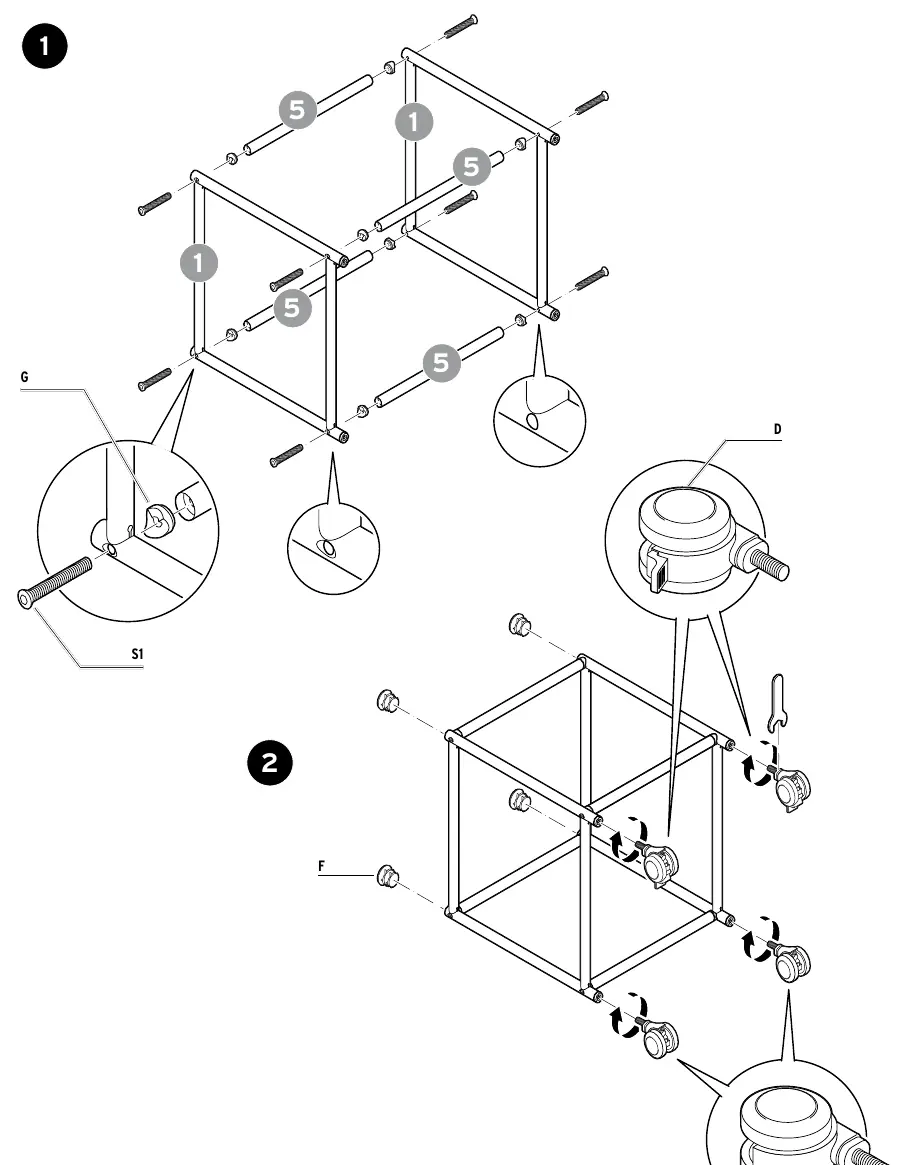

- Steps 1-2: Frame assembly and wheel attachment.

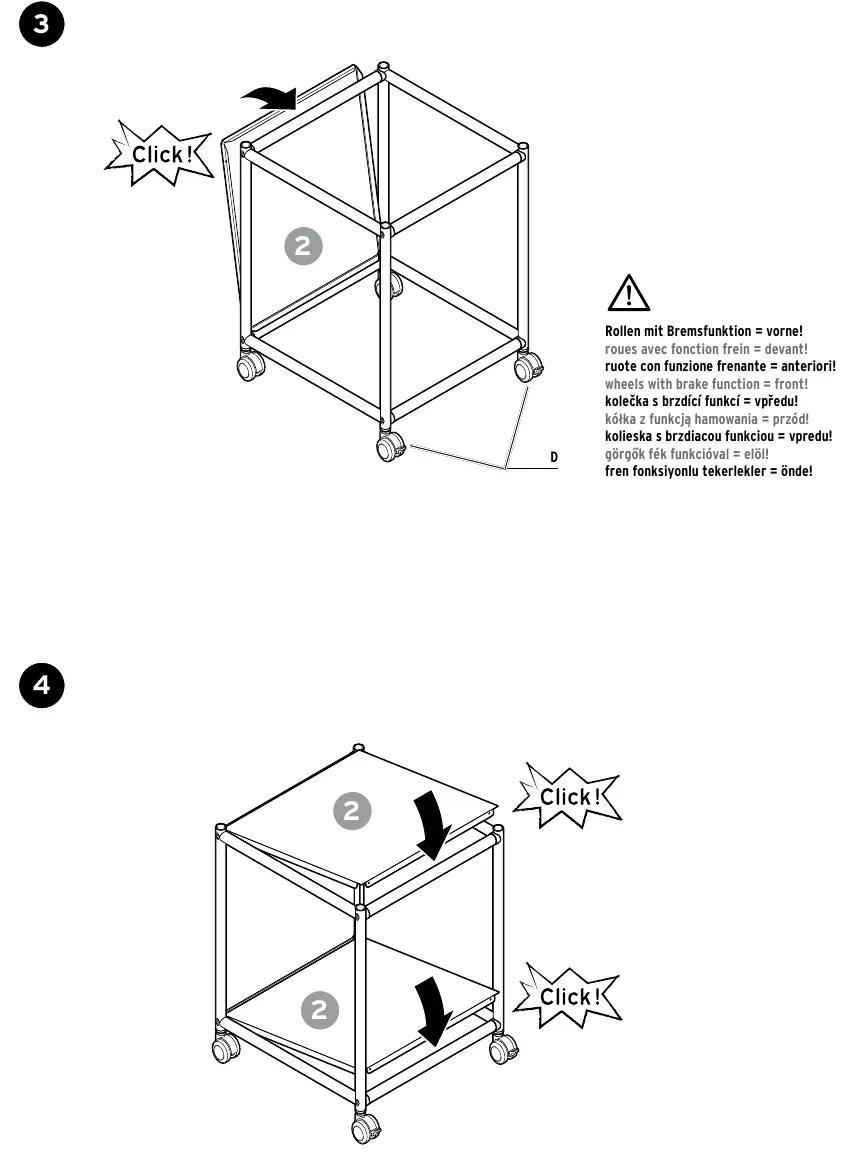

- Steps 3-4: Attaching shelves and verifying wheel orientation.
- Steps 5-6: Attaching hinge mechanisms.
- Step 9: Hinge adjustment and safety warning.
Model compatibility
- Indoor use only.
- Not for commercial use.
