IKEA VIHALS Storage Unit 105x37x140 cm
Assembly and safety instructions for the IKEA VIHALS storage unit, featuring a combination of shelves, drawers, and doors for versatile home organization.
Table of contents
Manual images
Jump to the sectionProduct Overview
The IKEA VIHALS storage unit is a versatile furniture piece designed for home organization. It features a combination of open shelving, drawers, and doors, providing flexible storage options for various items. The unit is designed to be stable and functional, but it requires proper assembly and wall anchoring to ensure safety.
Safety and Stability
Warning: Serious or fatal crushing injuries can occur from furniture tip-over. It is mandatory to secure this furniture to the wall using the provided tip-over restraints. To further reduce the risk of injury, always place the heaviest items in the lower drawer. Do not set televisions or other heavy objects on top of the unit, and never allow children to climb, hang, or swing on the drawers, doors, or shelves.
Assembly Instructions
The assembly process requires two people for certain steps to ensure safety and proper alignment. Before starting, ensure you have the necessary tools, including a screwdriver, hammer, pencil, and a power drill with appropriate bits for your wall type. The package includes all necessary hardware, such as screws, dowels, and cam locks. Follow the numbered steps in the manual carefully, paying close attention to the orientation of panels and the correct use of fasteners. Use the provided wall-anchoring kit to fix the unit to the wall according to the instructions for your specific wall type (solid or hollow).
Maintenance and Adjustments
Once assembled, you can adjust the hinges on the doors to ensure they hang straight and close properly. Use the adjustment screws on the hinge mechanism to move the doors horizontally or vertically. Regularly check all fasteners and tighten them if necessary to maintain the structural integrity of the unit. Clean the surfaces with a damp cloth and mild cleaner, avoiding harsh chemicals that could damage the finish.
Manufacturer information
IKEA
Practical help
Common problems
Furniture instability or tipping risk
Always secure the unit to the wall using the included tip-over restraints.
Doors not aligned
Use the adjustment screws on the door hinges to align the doors horizontally and vertically.
Before use
- Verify all parts and hardware are present according to the manual.
- Ensure you have the correct tools: screwdriver, hammer, pencil, and drill.
- Identify your wall type (solid or hollow) to use the correct mounting hardware.
- Clear a large, flat area for assembly.
- Ensure two people are available for lifting and positioning the unit.
Images and diagrams
- The manual uses icons to indicate when two people are required for assembly.
- Specific icons show the correct orientation for inserting dowels and cam locks.

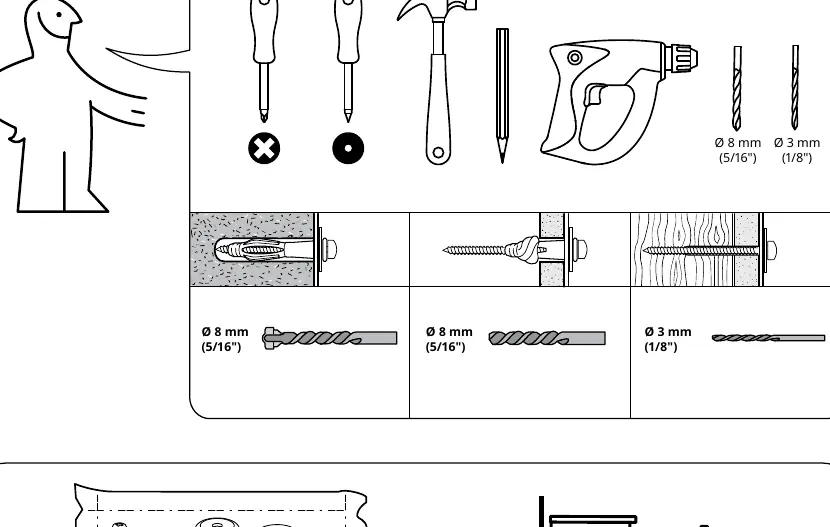

- Drill bit sizes are specified for different wall types (8mm for masonry/hollow, 3mm for solid wood).

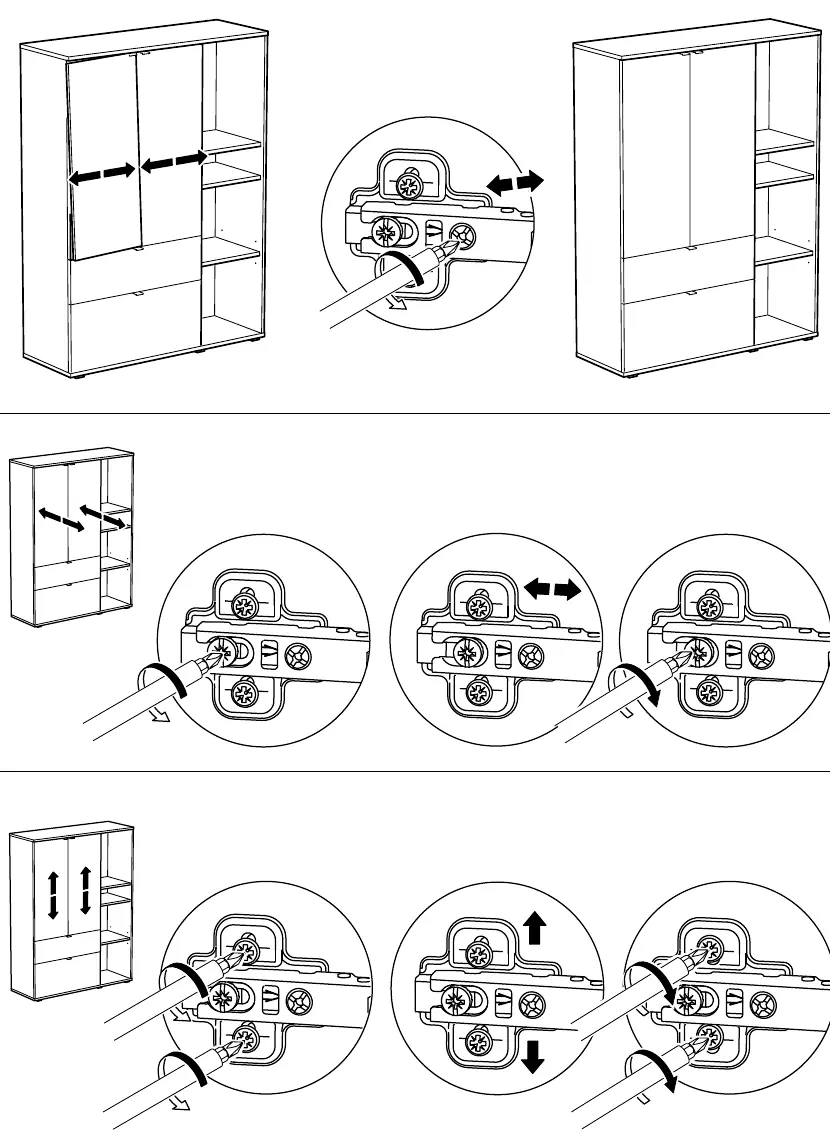

- Hinge adjustment diagrams show which screws control horizontal and vertical movement.
Model compatibility
- The included wall plugs and screws are suitable for most solid and hollow walls.
- For solid wood walls, use the screws without the plastic plugs.
