Installation guide for Invicta Interior 46658 Sideboard
Quick installation and adjustment guide for the Invicta Interior 46658 sideboard. Includes assembly steps for legs and hardware, plus instructions for aligning cabinet doors.
Table of contents
Quick guide from the manual
This sideboard assembly requires two people to complete safely. Ensure you have a soft surface to work on to prevent damage to the furniture. The maximum load capacity for the sideboard is 80 kg, with a limit of 8 kg per shelf.
Assembly instructions
Before starting, verify that all parts (P1, P2, H1, H2, T1, H3, H4, H5) are present. Follow the diagrams carefully to attach the legs to the cabinet body.

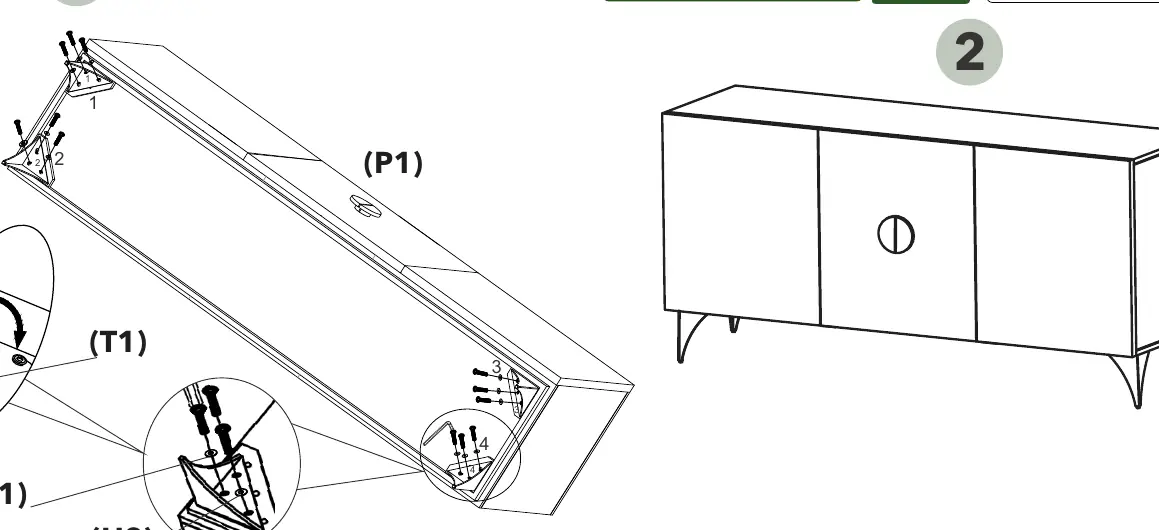

- Leg Attachment: Use the provided screws (H1) and washers (H2) to secure the legs (P2) to the main body (P1). Use the included tool (T1) to tighten the screws.
- Hardware: Ensure all screws are tightened securely but do not overtighten to avoid damaging the wood.
Door adjustment
If the doors are not aligned correctly, you can adjust the hinges using the following methods:
- Height adjustment: Adjust the small screws on the hinge, then tighten the screws in the larger holes to set the height.
- Depth adjustment: Use the back screw on the hinge to change the distance between the door and the cabinet body.
- Sideways alignment: If the door is crooked, use the front screw on the hinge to correct the alignment.
Manufacturer information
Invicta Interior GmbH & Co. KG
Practical help
Common problems
Door is crooked
Use the front screw on the hinge to adjust the door sideways until it is straight.
Door depth is incorrect
Use the back screw on the hinge to adjust the distance between the door and the cabinet body.
Door height is incorrect
Adjust the small screws on the hinge, then tighten the screws in the larger holes to fix the height.
Before use
- Ensure two people are available for assembly.
- Check that all parts (P1, P2, H1, H2, T1, H3, H4, H5) are included.
- Prepare a soft surface to protect the furniture during assembly.
- Verify the maximum load capacity of 80 kg (8 kg per shelf).
Images and diagrams
- The assembly diagrams illustrate the correct placement of legs and hardware.
- The hinge diagrams show which specific screws control height, depth, and sideways alignment.
