Kuryakyn Phantom Brake Pedal Pad Installation Instructions
Quick installation guide for Kuryakyn Phantom Brake Pedal Pad for FL Softail. Includes step-by-step mounting instructions, required tools, and safety warnings.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides installation instructions for the Kuryakyn Phantom Brake Pedal Pad designed for FL Softail motorcycles. Before beginning, ensure the motorcycle is parked on a hard, level surface and the ignition is turned off. Crucial: Allow the engine and exhaust system to fully cool to prevent injury during installation.
Parts included
- 1 FL Brake Pad
- 1 5/16-18 x 3/4” Button Socket Cap Screw
- 1 5/16” Flat Washer
Installation steps
- Remove the existing brake pedal pad and set it aside; it will not be reused.
- Locate the provided FL Brake Pedal Pad and align it over the brake lever.
- Prepare the mounting hardware: place the Flat Washer onto the Button Socket Cap Screw and apply a small amount of blue Loctite to the threads of the screw.
- Insert the screw and washer assembly through the mounting hole on the bottom of the brake pedal and pedal pad.
- Fully tighten the hardware.
Maintenance
It is the installer's responsibility to ensure that all fasteners, including pre-assembled ones, are tightened before operating the motorcycle. Periodic inspection and maintenance are required on all fasteners to ensure safety and product longevity.
Practical help
Common problems
Fasteners coming loose
Perform periodic inspections and ensure all hardware is fully tightened before operation.
Warranty void
Ensure proper installation and maintenance; Kuryakyn does not cover products lost due to improper installation.
Before use
- Allow engine and exhaust to fully cool
- Gather socket bit set and ratchet
- Obtain blue Loctite
- Ensure motorcycle is on a hard, level surface
Specs in practice
- 5/16-18 x 3/4” Button Socket Cap Screw
- The specific mounting bolt size required for installation.
- Blue Loctite
- Thread-locking compound required to secure the screw during installation.
Images and diagrams

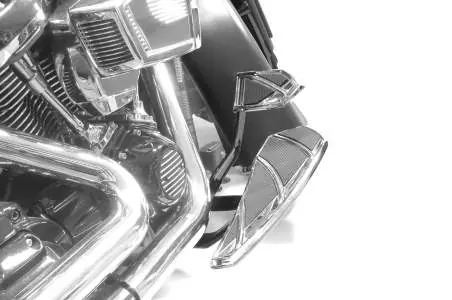

- The installation involves aligning the pad over the lever and securing it from the bottom using the provided screw and washer assembly.
Model compatibility
- Designed specifically for FL Softail models.
