Locinox 05LV40 Valentino Battery Powered Code Lock
Quick guide for the Locinox 05LV40 Valentino surface-mounted battery-powered code lock. Learn about installation, battery operation, code management, and technical specifications.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
The Locinox 05LV40 Valentino is a surface-mounted, battery-powered code lock designed for outdoor gate access. This document provides an overview of its key features, installation capabilities, and technical specifications. The lock is designed for durability, featuring a weather-protected illuminated keypad on both sides and a vandal-proof battery compartment.
Device Overview
The Valentino lock system is engineered for high-traffic use with an energy-efficient design. Key components include:
- Weather-protected illuminated electronic code panel (both sides)
- Vandal-proof battery compartment
- Roller bolt for smooth closing
- Adjustable bolt (20mm range)
- Robust e-coated and powder-coated lock box
Installation and Operation
The lock supports flexible installation options, including free-exit, pushbar, and code-controlled handles. It allows for the configuration of up to 100 different entry and exit codes, including support for permanently open codes. Programming and emergency unlocking can be performed via the integrated key-operated mechanism.
Technical Specifications
- Power: 6 Lithium-metal AA batteries (included)
- Durability: Up to 150,000 open/close cycles on one set of batteries
- Weather Resistance: ISO 9227 KTL / E-coated lock box, tested for 1000 hours of salt spray
- Bolt Adjustment: 20mm
Maintenance and Warnings
The device includes a low battery warning light to indicate when power levels are insufficient. Ensure the battery compartment remains secure to maintain its vandal-proof integrity. For technical support or inquiries, contact Locinox HQ at +32 56 77 27 66 or email [email protected]. For US-based support, contact 877-LOCINOX or [email protected].
Practical help
Common problems
Low battery indication
Replace the 6 Lithium-metal AA batteries when the warning light activates.
Difficulty closing the gate
Adjust the bolt using the 20mm adjustability feature to ensure smooth operation with the roller bolt.
Before use
- Verify the gate configuration for free-exit or code-controlled handle requirements.
- Ensure 6 Lithium-metal AA batteries are installed in the compartment.
- Test the illumination of the keypad on both sides.
- Configure the desired entry and exit codes (up to 100 codes supported).
Specs in practice
- ISO 9227 KTL
- High-grade corrosion resistance, tested to withstand 1000 hours of salt spray.
- 150,000 cycles
- The expected lifespan of the battery set under normal operating conditions.
- 20mm bolt adjustment
- Allows for fine-tuning the latching mechanism to fit the gate gap.
Images and diagrams

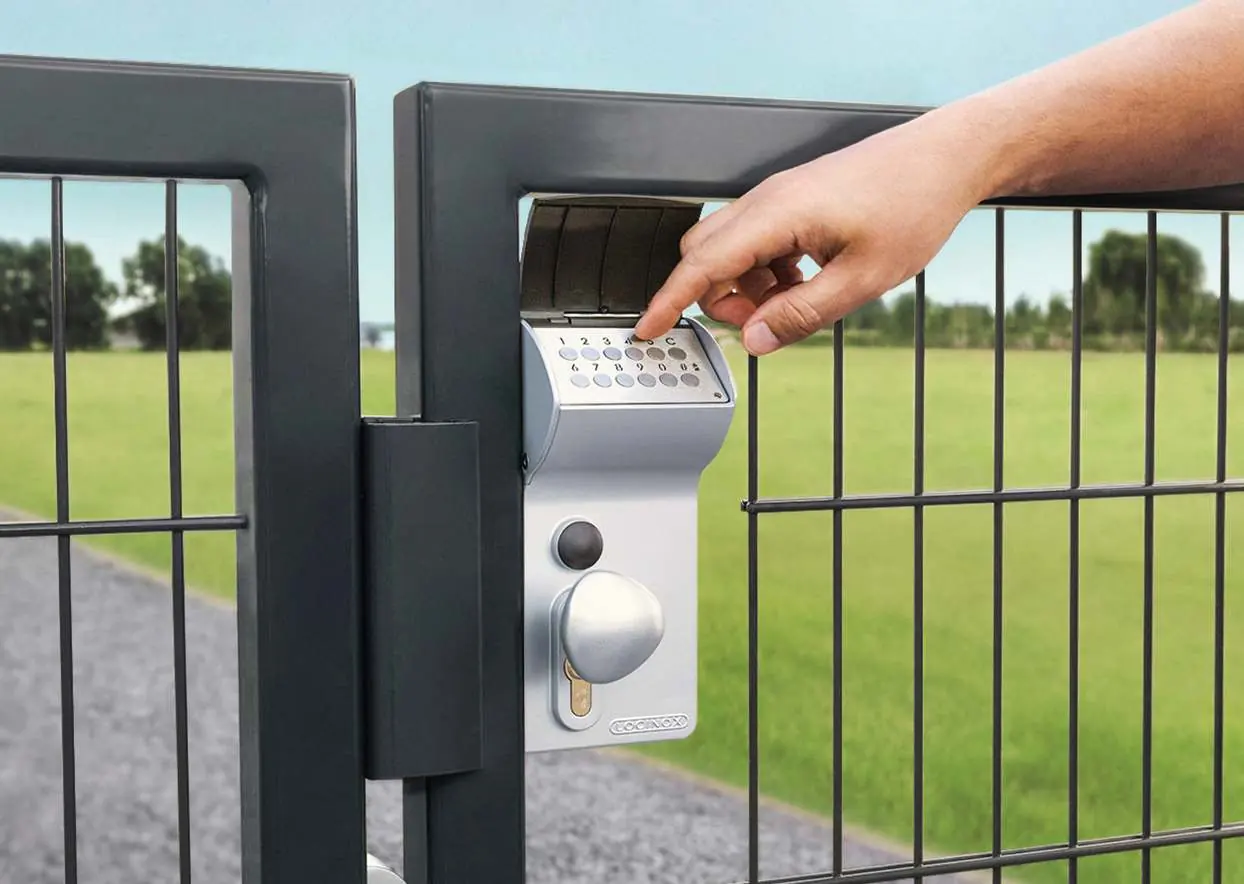

- The keypad is located on the upper section of the lock, protected by a cover.
- The battery compartment is integrated into the lock body for vandal protection.
- The lock supports both controlled entrance and controlled exit configurations.
Model compatibility
- Compatible with free-exit systems.
- Compatible with pushbar installations.
- Supports code-controlled handles.
