NEO TOOLS 17-084A Glue Gun

Product Description

The NEO TOOLS 17-084A is a 4V cordless glue gun designed for 8 mm glue sticks. It features a built-in 2600 mAh battery, rechargeable via USB, providing 60-100 minutes of operation. The device is suitable for various bonding tasks, offering a glue temperature range of 80°C - 140°C.

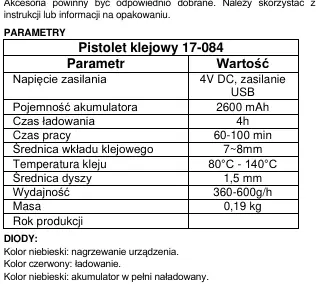

Technical Specifications

• Power Supply: 4V DC, USB
• Battery Capacity: 2600 mAh
• Charging Time: 4 hours
• Operating Time: 60-100 minutes
• Glue Stick Diameter: 7-8 mm
• Glue Temperature: 80°C - 140°C
• Nozzle Diameter: 1.5 mm
• Weight: 0.19 kg

Safety Instructions

Read all instructions carefully to minimize the risk of fire or injury. Always wear eye protection during operation. Do not dismantle, crush, or throw the device into fire. The device should be charged in a room temperature between 5°C and 40°C. Mechanical damage to the battery can cause short circuits, ignition, or explosions.

Operation

Before first use, fully charge the device using a suitable power supply. Insert a glue stick through the rear opening until it stops. Switch the device to the ON position to begin the 3-5 minute warm-up phase, indicated by a blue LED. Press the trigger to dispense glue. Do not remove partially used glue sticks during operation; simply reheat the device for the next use.

Maintenance and Troubleshooting

If the glue does not flow immediately after the first charge, it is normal as the flow channel needs to be filled with melted glue. If charging times or operating times vary, this is often due to ambient temperature or battery discharge levels. Ensure the battery is fully discharged and taped before disposal to prevent short circuits.

Disposal

Do not dispose of this product with household waste. The device and its battery contain materials that must be recycled according to local regulations. The battery contains substances that may be harmful for up to 10 years.
