Installation Guide for Philips 18952C2 CANbus Adapter Modules
A comprehensive installation guide for the Philips 18952C2 CANbus adapter modules for H7 LED headlights. Includes step-by-step instructions for soft cover modification, wiring, and mounting, specifically for the VW Passat B6.
Quick answers from the manual
Quick answer
- The Philips 18952C2 CANbus adapter is used to prevent dashboard error messages when upgrading to H7 LED headlights. Installation involves modifying the headlamp's rubber soft cover, connecting the wiring, and securing the module to the vehicle. p. 1, 4, 6
Key actions
- Modify the soft cover by cutting a 25mm hole. p. 4
- Secure the CANbus module to the vehicle using cable ties. p. 6, 8
First start
- Turn on the ignition and lights to verify the CANbus function. p. 9
Show 1 more answers Show less
Where to find it in the PDF
- Preparation and Soft Cover Modification p. 4
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual

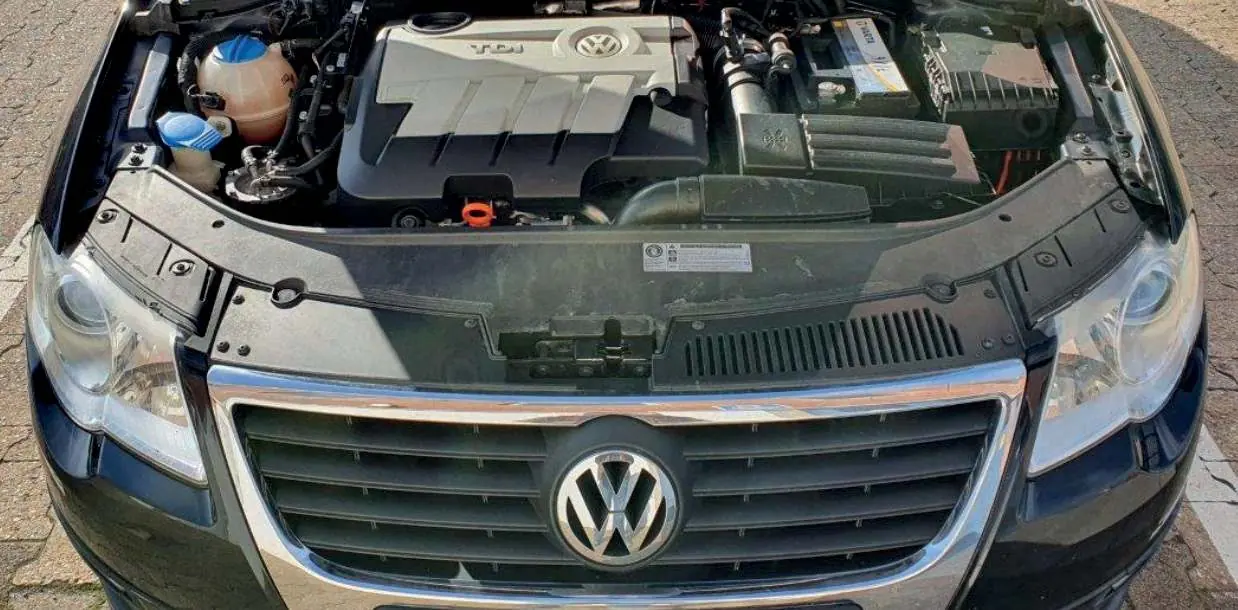

This document provides instructions for installing the Philips 18952C2 CANbus adapter modules, which are designed to prevent dashboard error messages when upgrading to H7 LED headlights. The guide focuses on the specific installation procedure for the VW Passat B6, including modifying the headlamp soft cover and securing the adapter module.
Preparation
Before beginning the installation, ensure the following:
- The vehicle ignition is switched off.
- The vehicle lighting system is switched off.
- You have the necessary tools, including a knife and scissors, to modify the headlamp soft cover.
- Ensure you are working in a safe, well-lit environment.

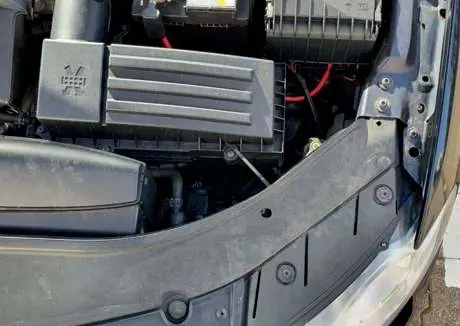

Soft cover modification
To install the CANbus adapter, the headlamp's rubber soft cover must be modified to allow cable passage:
- Remove the soft cover from the back of the headlamp.
- Draw a 25mm circle on the center of the soft cover.
- Use a knife to make a cross-shaped cut within the drawn circle.
- Use scissors to cut out the 25mm circle along the marked line.
Installation and wiring
Once the soft cover is prepared, proceed with the installation:

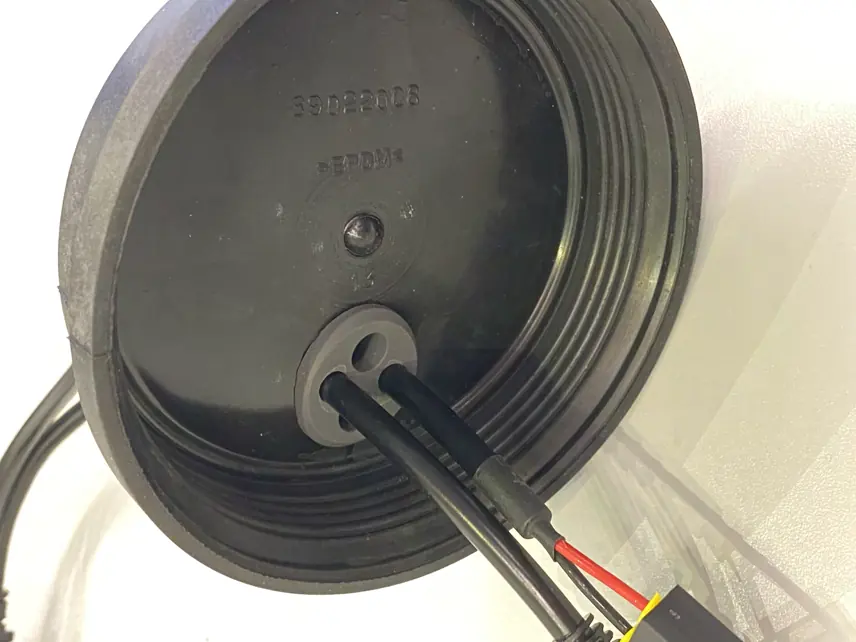

- Insert the CANbus cable grommet into the newly cut hole in the soft cover to ensure a proper seal.

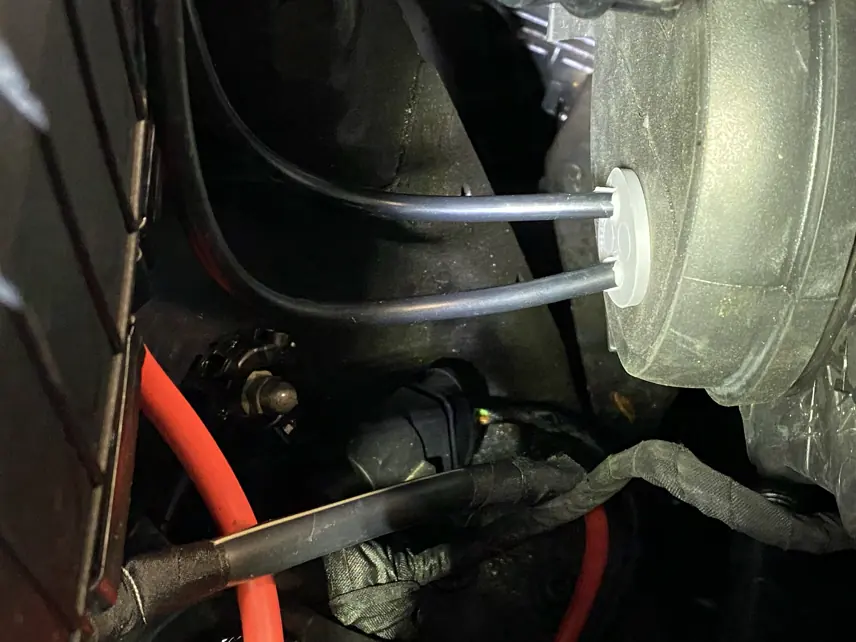

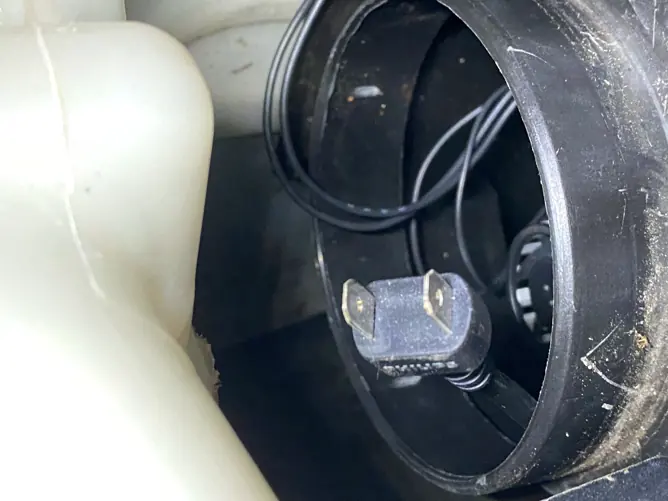

- Connect the electric plugs of the CANbus adapter to the vehicle's headlight wiring. Ensure the connections are secure.
- Mount the soft cover back onto the headlamp, ensuring it is sealed correctly to prevent moisture ingress.
Mounting and verification
After the electrical connections are made and the cover is sealed:

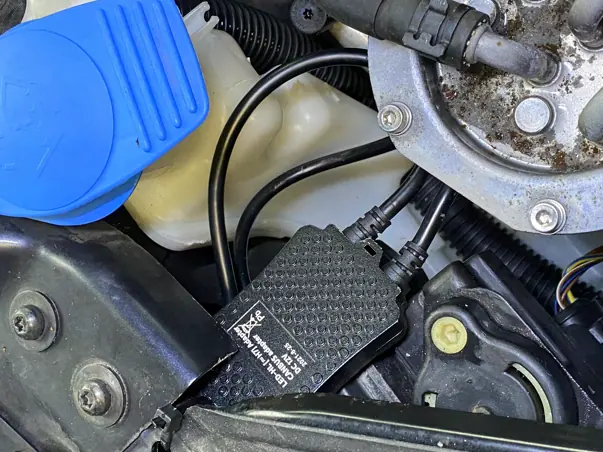

- Fix the CANbus adapter module to the vehicle chassis or a secure part of the engine bay using the provided cable ties. Ensure the module is not resting against hot components.
- Turn on the vehicle ignition and the headlights to verify the system is functioning correctly and that no error messages appear on the dashboard.
Manufacturer information
Philips
Practical help
Common problems
Dashboard error message persists
Verify that the CANbus adapter is correctly connected and that the LED headlight is properly installed.
Soft cover does not seal properly
Ensure the grommet is fully seated in the hole and the rubber cover is pressed firmly onto the headlamp housing.
Before use
- Ensure the vehicle ignition is off.
- Ensure the headlight switch is in the OFF position.
- Prepare a knife and scissors for modifying the rubber cover.
- Verify the compatibility of the H7 LED kit with your vehicle model.
Show more Show less
Images and diagrams
- The manual includes visual steps for modifying the rubber soft cover, including drawing and cutting a 25mm hole.
- Visual guides are provided for connecting the electrical plugs and securing the module with cable ties.
Model compatibility
- Designed for H7 LED headlight systems.
- Specific installation steps provided for VW Passat B6.
