Installation Guide for Philips Cinnabar LED Ceiling Light
Step-by-step installation guide for the Philips Cinnabar LED ceiling light. Includes instructions for mounting, wiring, and safety precautions.
Quick answers from the manual
Quick answer
- This document provides visual instructions for installing the Philips Cinnabar LED ceiling light, covering power safety, mounting, and wiring. p. 1
Key actions
- Turn off power at the main breaker p. 1
- Connect wires to the terminal block p. 1
First start
- Turn on the power at the main breaker after installation is complete. p. 1
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Wire stripping length | 8mm | Length of insulation to remove from wires | p. 1 |
Where to find it in the PDF
- Installation Instructions p. 1
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides visual instructions for the safe installation of the Philips Cinnabar LED ceiling light. Before beginning, ensure the main power supply is switched off at the circuit breaker to prevent electrical shock.

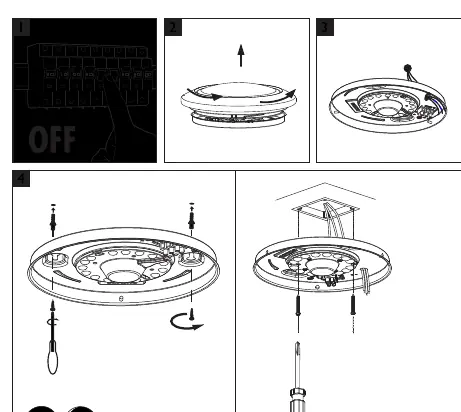

Installation steps
- Power Off: Ensure the electricity is turned off at the main breaker before starting any work.
- Remove Cover: Carefully remove the diffuser/cover from the light fixture.
- Remove Base: Detach the mounting plate/base from the fixture.
- Mounting: Drill the necessary holes in the ceiling, insert wall anchors if required, and screw the mounting base securely to the ceiling.
- Wiring: Connect the supply wires to the terminal block. Ensure the wires are stripped to 8mm. Connect the Live (L), Neutral (N), and Earth/Ground wires according to the markings on the terminal block.
- Attach Fixture: Secure the light fixture back onto the mounted base.
- Power On: Restore power at the main breaker to test the light.
Safety and Maintenance
Always ensure the fixture is properly grounded. Do not attempt to modify the internal wiring. If the light fails to turn on, verify the power supply and check that all wire connections in the terminal block are secure.
Manufacturer information
Philips
Practical help
Common problems
Light does not turn on
Check if the power is turned on at the main breaker and ensure all wires are securely connected in the terminal block.
Before use
- Ensure power is switched off at the main circuit breaker
- Verify the ceiling surface can support the fixture weight
- Ensure you have a screwdriver and wire strippers
- Check that wires are stripped to 8mm
Show more Show less
Specs in practice
- Wire stripping
- Strip 8mm of insulation from the wires for proper connection in the terminal block.
Images and diagrams
- The diagram shows a standard 3-wire connection (Live, Neutral, Earth/Ground) to the terminal block.
- The installation sequence follows a logical order from power disconnection to final assembly.
Model compatibility
- Ensure the ceiling material is suitable for screw mounting.
