User Manual for Simon K45 Italian Bipasso Socket K06/6
Quick guide for the Simon K45 Italian Bipasso socket (K06/6). Includes installation requirements, wire stripping, compatibility, and maintenance instructions.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides technical specifications and installation guidelines for the Simon K45 Italian Bipasso socket (Ref. K06/6). It is designed for professional installation in various Simon K45 and 500 Cima enclosures. Always ensure the circuit is powered off before beginning any installation work.
Product Description
The Simon K45 Italian Bipasso socket is a 1-element electrical outlet designed for 10/16A current. It features a red finish and is constructed from plastic.
Compatibility
This socket is compatible with Simon K45 envelopes for installation in walls, floors, ceilings, and furniture. It can also be used with Simon 500 Cima envelopes, provided it is combined with the K45 to 500 Cima adapter (Ref. 50012088-030).
Installation and Wiring
The socket utilizes screw terminals for wire connection. To ensure a proper connection, strip 12mm of insulation from the wire. Note that the removal of the socket from its enclosure requires the use of a tool.
Maintenance
To clean the socket, use only a soft, dry cloth. Do not use abrasive detergents or cleaning agents that contain chlorine, as these may damage the surface.
Technical Specifications
- Format: Bipasso
- Current Rating: 10 / 16 A
- IP Rating: IP20
- RAL Color: 3002
- Wire Stripping: 12 mm
- Terminal Connection: Screw type
- Fire Resistance: +850 °C / 30 seconds (GWFI according to IEC 60695-10-2)
Manufacturer information
Simon
Practical help
Common problems
Socket removal
The socket cannot be removed by hand; a tool is required for safe removal from the enclosure.
Cleaning damage
Avoid using chlorine-based or abrasive cleaners. Use only a soft, dry cloth.
Before use
- Verify the enclosure is a compatible Simon K45 or 500 Cima type.
- If using a 500 Cima enclosure, ensure you have the required adapter (Ref. 50012088-030).
- Ensure the electrical circuit is disconnected before starting installation.
- Strip exactly 12mm of insulation from the electrical wire.
- Ensure the screwdriver used for terminals is the correct size for the screw heads.
Images and diagrams

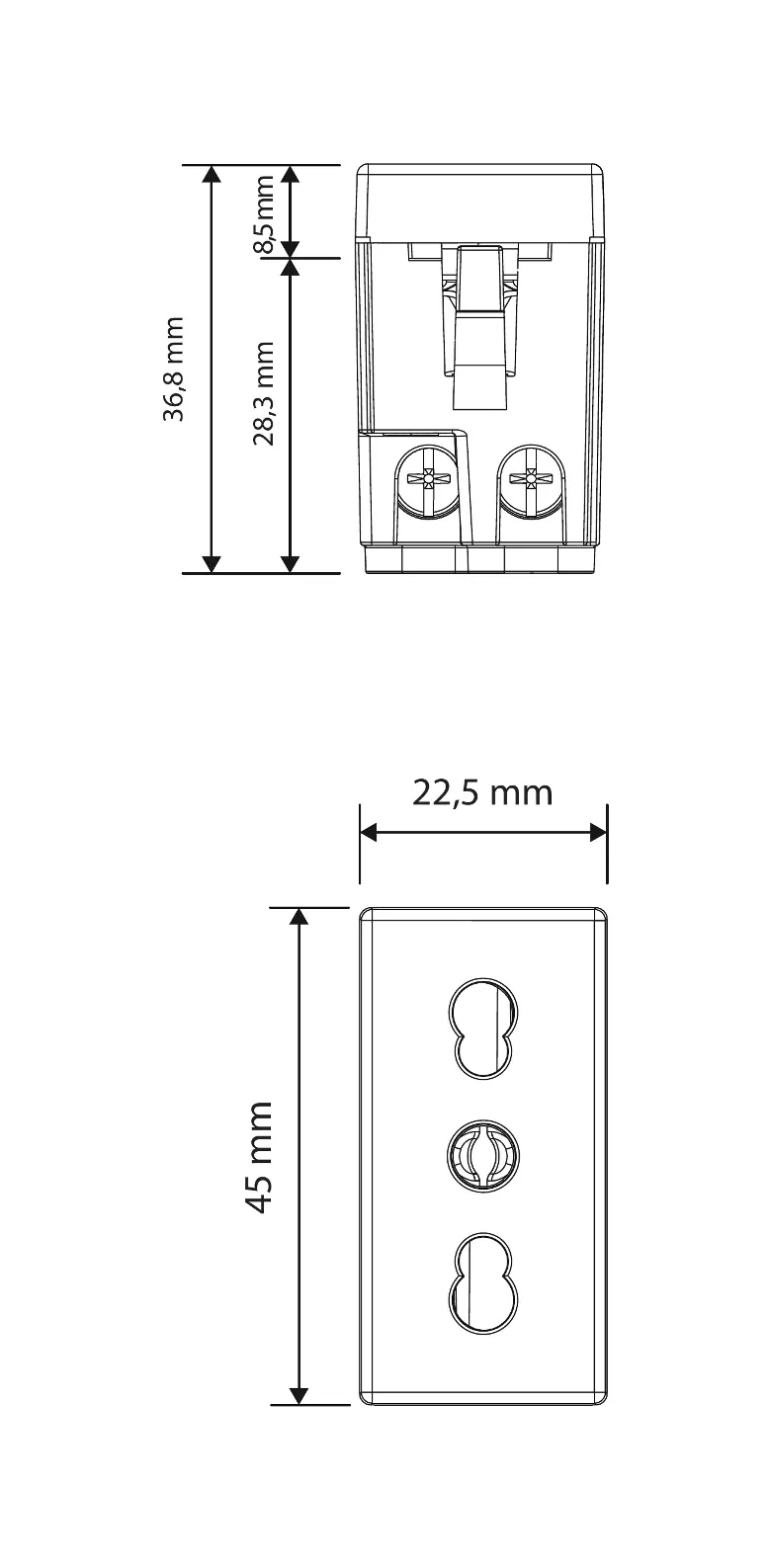

- The technical drawing illustrates the physical dimensions of the socket: 45mm height, 22.5mm width, and a total depth of 36.8mm.
Model compatibility
- Compatible with Simon K45 wall, floor, ceiling, and furniture enclosures.
- Requires an adapter (Ref. 50012088-030) when installing in Simon 500 Cima enclosures.
