Simon 270 Schuko Socket with 10.5W USB-C Charger
Quick guide for the Simon 270 Schuko socket with integrated 10.5W USB-C charger. Includes installation instructions, wiring diagrams, and technical specifications.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides essential information for the installation and operation of the Simon 270 Schuko socket with an integrated 10.5W USB-C charger. The device is designed for flush mounting and requires a wire section between 1.5 mm and 2.5 mm. Always ensure the power is disconnected before beginning any installation work.
Product Description
The Simon 270 Schuko socket is a 16A, 250V~ electrical outlet that includes a built-in 10.5W USB-C charger. It is part of the Simon 270 series and is intended for horizontal installation.
Technical Specifications
- Electrical Rating: 16A, 250V~
- USB Output: 5Vdc, 2.1A (10.5W)
- Wire Section: 1.5 mm to 2.5 mm
- Protection Rating: IP20
- Operating Temperature: 5°C to 40°C
- Installation Type: Flush-mounted, horizontal
Installation
The device is designed for flush mounting. Ensure the installation is performed in a horizontal orientation. Connect the electrical wires to the corresponding terminals marked L (Live), N (Neutral), and the Ground symbol. Use cables with a cross-section between 1.5 mm and 2.5 mm.
Maintenance
To clean the device, use a soft, dry cloth. Do not use abrasive cleaners or products containing chlorine, as these may damage the finish.
Manufacturer information
Simon
Practical help
Common problems
USB charger not working
Ensure the socket is correctly wired to the L (Live) and N (Neutral) terminals according to the wiring diagram.
Difficulty inserting wires
Ensure the wire section is between 1.5 mm and 2.5 mm.
Before use
- Verify the wall box is suitable for flush mounting.
- Ensure the power supply is disconnected before installation.
- Check that the wire gauge is between 1.5 mm and 2.5 mm.
- Confirm the installation orientation is horizontal.
Images and diagrams

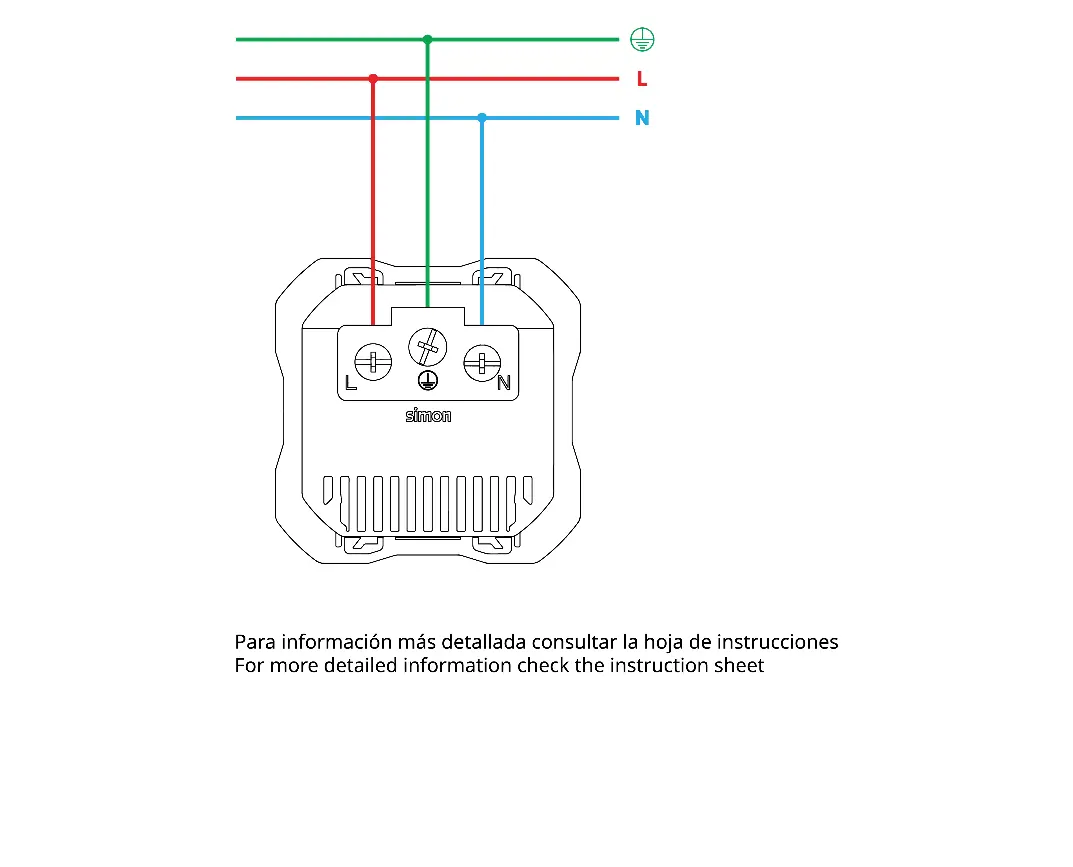

- The wiring diagram shows the connection points for Live (L), Neutral (N), and Ground (Earth symbol). Ensure wires are connected to the corresponding terminals.
Model compatibility
- Compatible only with Simon 270 frames.
