Singer 168w101 Sewing Machine Parts & Instructions

Product Overview

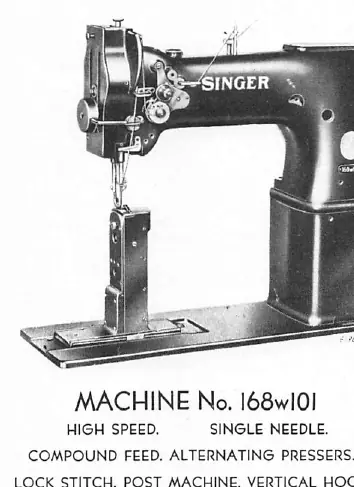

The Singer 168w101 is a high-speed, single-needle post sewing machine featuring a compound feed and alternating pressers. It is specifically engineered for stitching medium-weight fabrics and leather, particularly in applications where cross seams are encountered. The machine utilizes a vertical hook and lock stitch mechanism to ensure reliable performance.

Maintenance and Oiling

To ensure smooth operation and prevent premature wear of moving parts, the machine requires regular lubrication. When in continuous use, apply Singer Type B or Type D oil to all designated oil holes marked OIL at least twice daily. Type D oil is stainless, making it ideal for delicate fabrics.

Ordering Replacement Parts

When ordering replacement parts, use only the part number listed in the first column of the parts tables. Note that some parts are furnished as combinations; always use the specific combination number provided. Letters following a part number indicate the specific finish (e.g., hardened, polished, nickel-plated). Parts marked with an asterisk (*) are available only for factory repairs. Figures in the second column refer to the corresponding plate illustration and should not be used for ordering.

Accessories and Setup

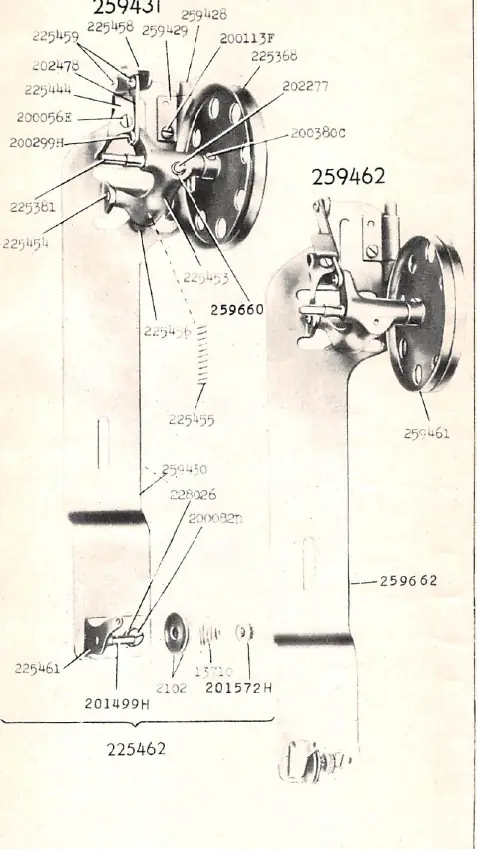

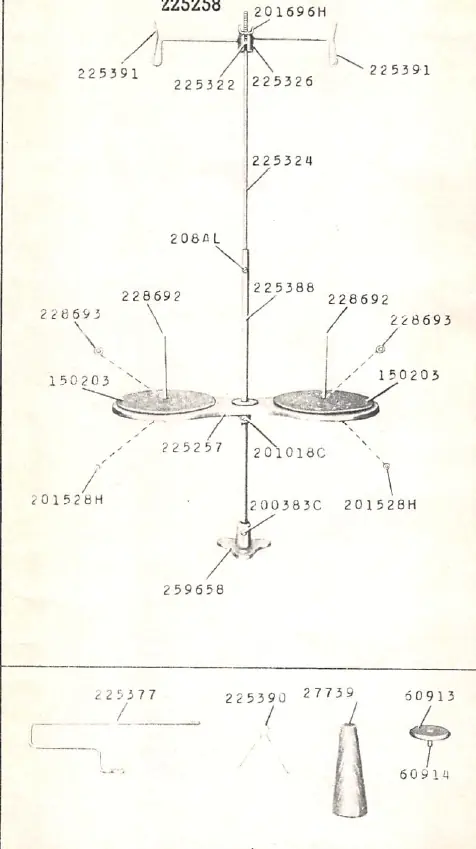

The machine includes various accessories such as bobbins, screwdrivers, and a drip pan. Detailed instructions and diagrams are provided for the bobbin winder (available for both V-belt and round belt drives), foot lifter, and thread unwinder systems. Ensure that only genuine Singer needles are used, as indicated by the SIMANCO trademark on containers, to maintain machine integrity and stitch quality.
