User Manual for Sunlite LED Vanity Fixture
Quick guide for installing and maintaining your Sunlite LED Vanity Fixture. Includes wiring instructions, dimming compatibility, and safety precautions.
Table of contents
Quick guide from the manual
This document provides essential installation and safety instructions for the Sunlite LED Vanity Fixture. Before beginning, ensure the main power is turned off at the circuit breaker to prevent electric shock. If you are not familiar with electrical wiring, please consult a qualified electrician.
Installation
- Pull the power supply wires out from the outlet box.
- Attach the mounting backplate to the outlet box using the two provided mounting screws.
- Connect the wires using wire nuts: connect the black supply wire to the black fixture wire, the white supply wire to the white fixture wire, and the supply ground wire to the fixture ground wire.
- Wrap all wire connections with electrical tape to ensure a secure connection.
- Place the back plate over the mounting bracket and insert the fixture pan screws, tightening them to secure the lamp to the ceiling.
- Restore power at the circuit breaker and turn on the light switch.
Dimming Compatibility
This product is dimmable and compatible with most common residential dimmers. Recommended models include:
- Lutron: VL-153P, SCL-153P, CTCL-153P, TGCL-153P
- Leviton: 6674, 6672
Care and Maintenance
Use a clean, soft cloth to wipe the surface of the fixture. Do not use any cleaners containing chemicals, solvents, or harsh abrasives. This LED product has no bulb to replace.
Practical help
Common problems
Light does not turn on after installation
Verify that the main power is restored at the circuit breaker and check that all wire connections (black-to-black, white-to-white, ground-to-ground) are secure and properly insulated with wire nuts and electrical tape.
Before use
- Turn off main power at the circuit breaker
- Ensure you have wire nuts for connections
- Verify compatibility with your existing dimmer switch
- Ensure you have a clean, soft cloth for future cleaning
Images and diagrams

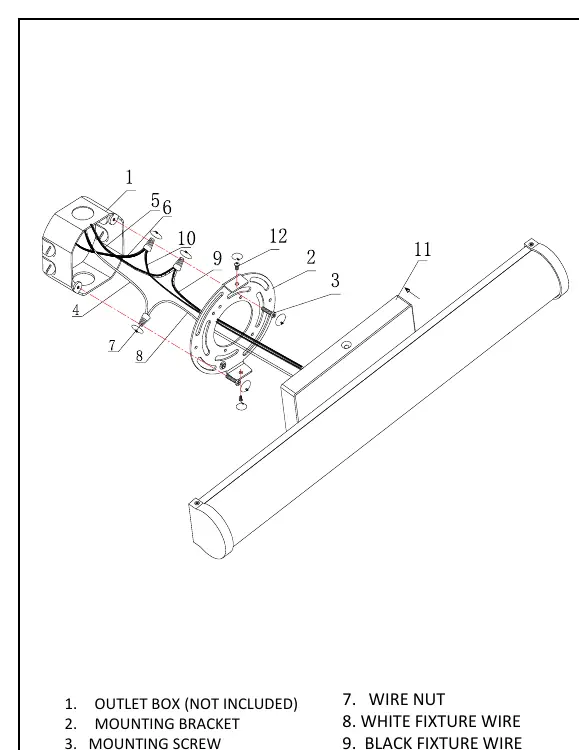

- The diagram illustrates the assembly of the mounting bracket to the outlet box and the correct wiring connections using wire nuts.
Model compatibility
- Compatible with Lutron VL-153P, SCL-153P, CTCL-153P, TGCL-153P
- Compatible with Leviton 6674, 6672
