Urmet 1168/51 Name Directory Module
A comprehensive installation and configuration guide for the Urmet 1168/51 name directory module. Includes instructions for name tag insertion, wiring diagrams for multiple modules, technical specifications, and maintenance guidelines.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Urmet 1168/51 is a name directory module designed for the Alpha calling system. For a correct installation, you must respect the limit of maximum 20 modules connected to a single 9000/230 transformer. Ensure all unused IN/OUT connectors are protected with the provided caps.
Name tag insertion
The name tag can be fitted or replaced only after removing the front of the module. Once the front is removed, you can insert or replace the name tag. The module is supplied with either a black (1168/51) or gray (1168/51G) name tag, which can be customized by engraving.
Wiring and connection
The system supports connecting multiple modules. The manual provides a specific example for connecting 6 modules. Use the provided 9 cm and 58 cm cords to link the modules. Ensure the system is powered by a 12V~ transformer (Ref. 9000/230).
Technical specifications
- Power voltage: 12V~
- Consumption (single module): <16 mA
- Consumption (20 modules): <450 mA max
Maintenance
Clean the front panels using a soft, damp, non-abrasive cloth. Do not use products containing alcohol or window cleaning agents, as these may damage the surface.
Installation distances and wire sections
The required wire section depends on the distance between the transformer (Ref. 9000/230) and the modules:
- 200 m: 2.5 mm²
- 115 m: 1.5 mm²
- 80 m: 1.0 mm²
- 60 m: 0.75 mm²
Manufacturer information
Urmet S.p.A.
Practical help
Common problems
Name tag cannot be inserted
The front of the module must be removed first to access the name tag slot.
System not working with many modules
Ensure you do not exceed the limit of 20 modules per transformer (9000/230).
Unused connectors
Protect all unused IN/OUT connectors with the provided caps to prevent damage or interference.
Before use
- Verify transformer model 9000/230 is used
- Ensure power supply is 12V~
- Check wire section based on distance
- Protect unused connectors with caps
- Ensure front panel is removed before attempting to change the name tag
Specs in practice
- Power voltage
- 12V~
- Max consumption (single)
- <16 mA
- Max consumption (20 modules)
- <450 mA
Images and diagrams

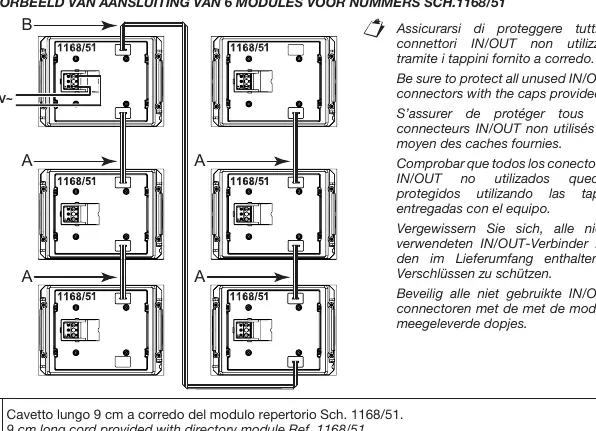

- Wiring diagram shows connection of 6 modules using 9cm and 58cm cords.
- Table provides wire section requirements based on distance (e.g., 200m requires 2.5mm2).
Model compatibility
- Designed for Alpha calling module Mod. 1168.
- Requires transformer Ref. 9000/230.
- Maximum 20 modules per transformer.
