Aideepen 200PSI Digital Tire Pressure Gauge User Guide
Quick guide for the Aideepen 200PSI Digital Tire Pressure Gauge. Learn how to operate the device, switch measurement units, replace batteries, and understand technical specifications.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This digital tire pressure gauge is designed for pneumatic and air pressure measurement, suitable for tires on trucks, bikes, and cars. It features an LCD display, automatic pressure identification, and multiple unit switching capabilities.
Product Overview

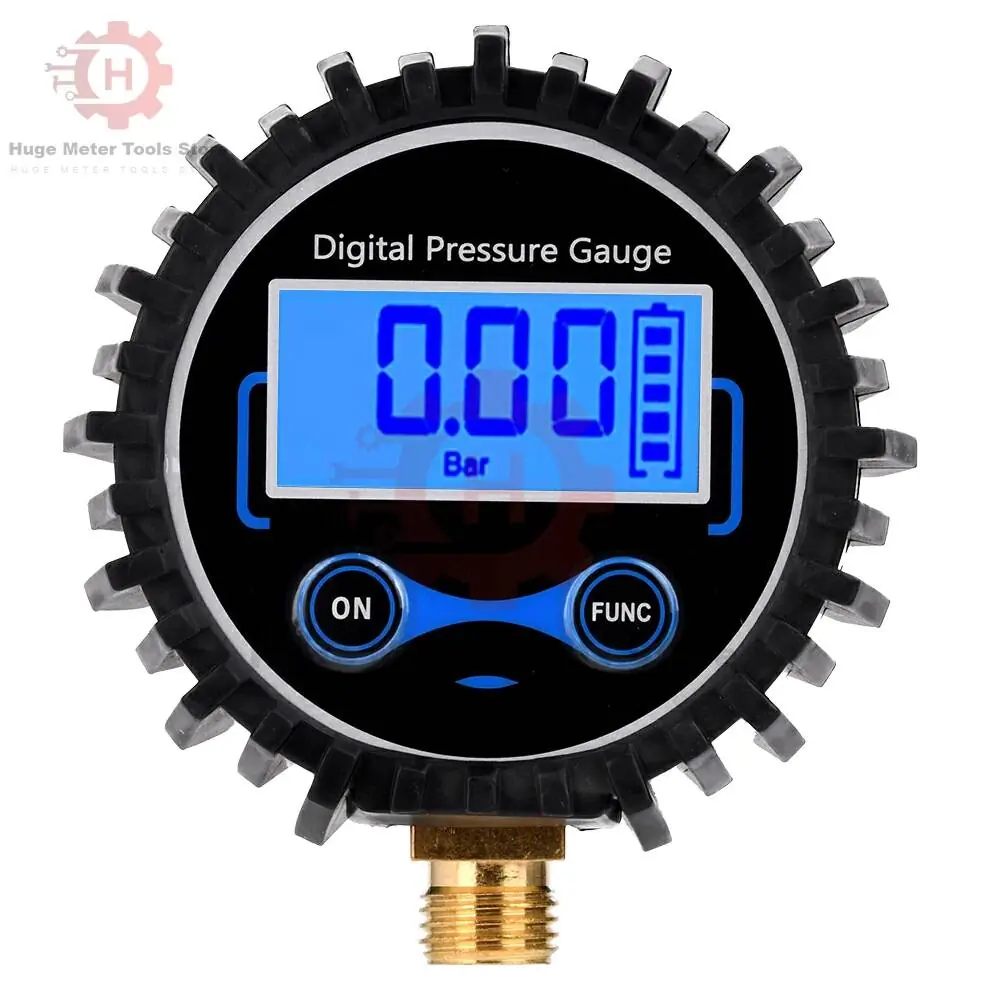

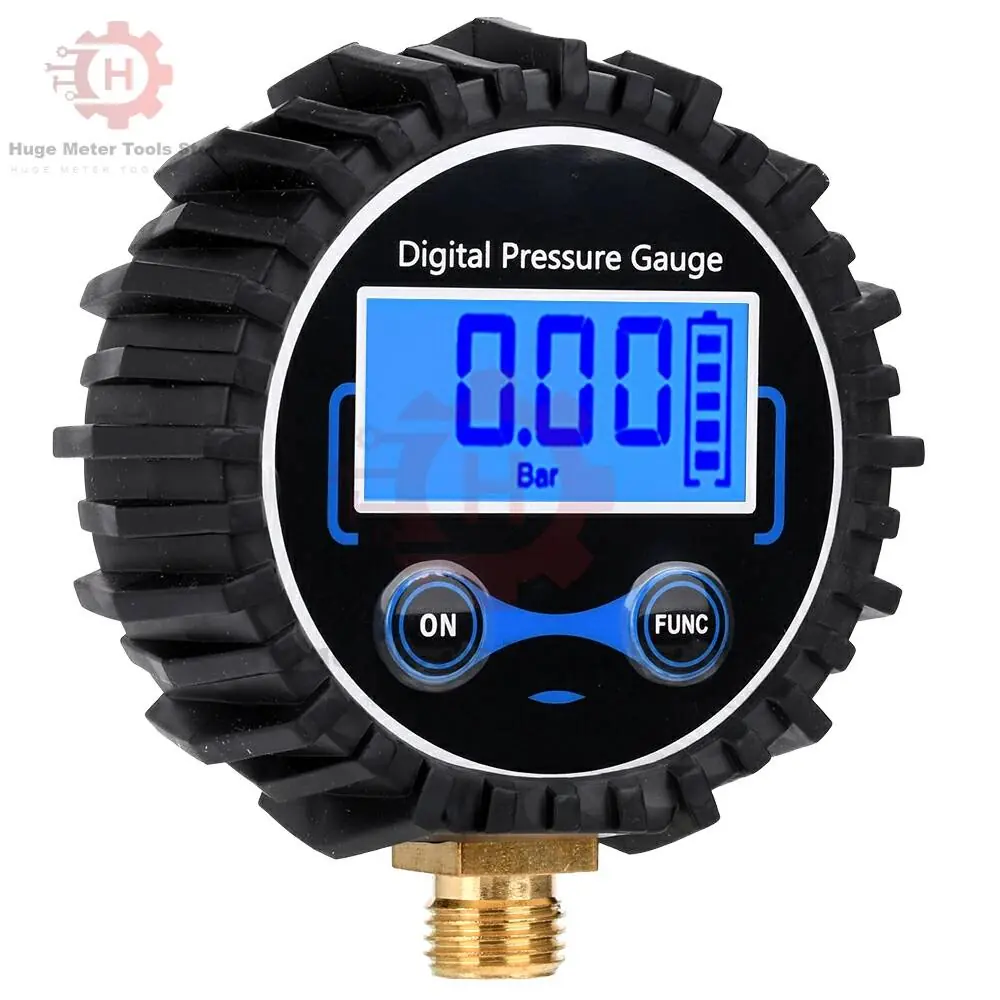

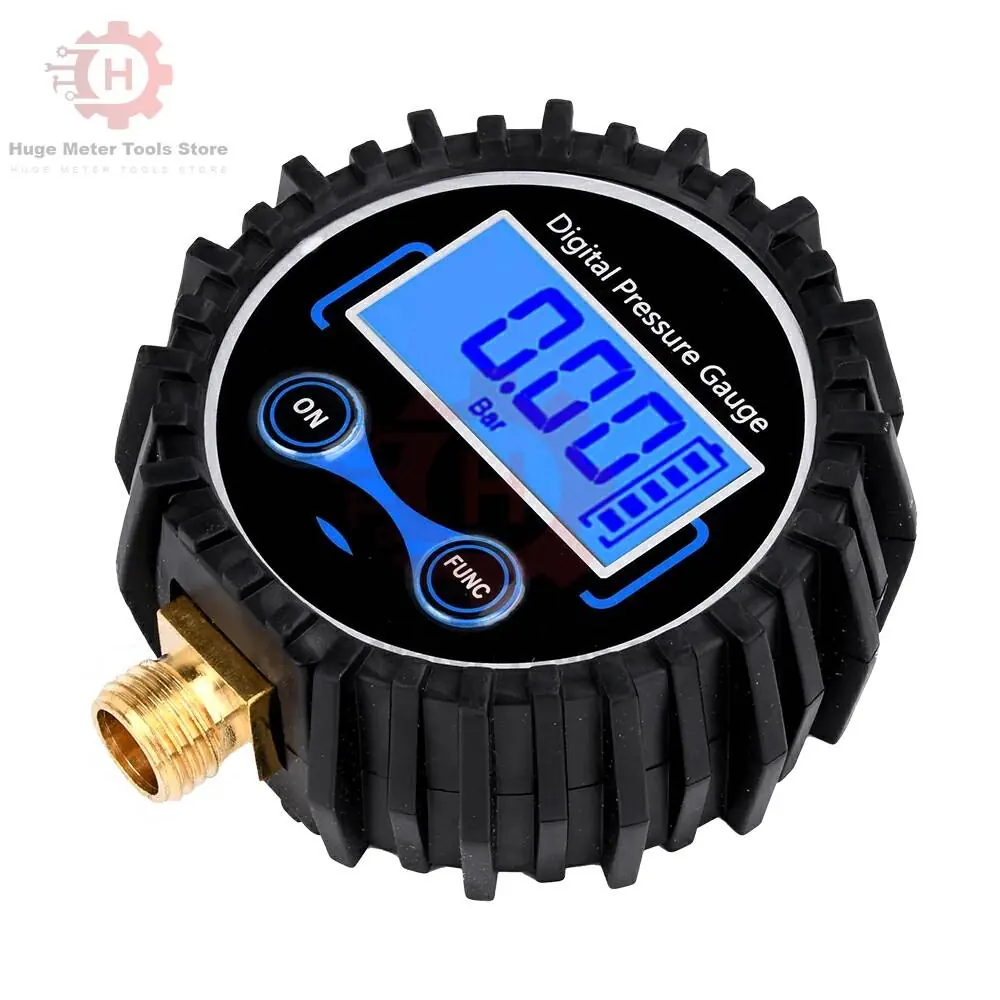

The device consists of a digital display, a rubber protective sleeve, and a copper joint for connection. It is powered by two AAA batteries.
Operation
- Power On: Press the ON button (left) to activate the device.
- Automatic Operation: When air pressure enters the gauge, the device automatically identifies the pressure without manual operation.
- Unit Switching: Press the FUNC button (right) to cycle through the available measurement units.
Battery Installation

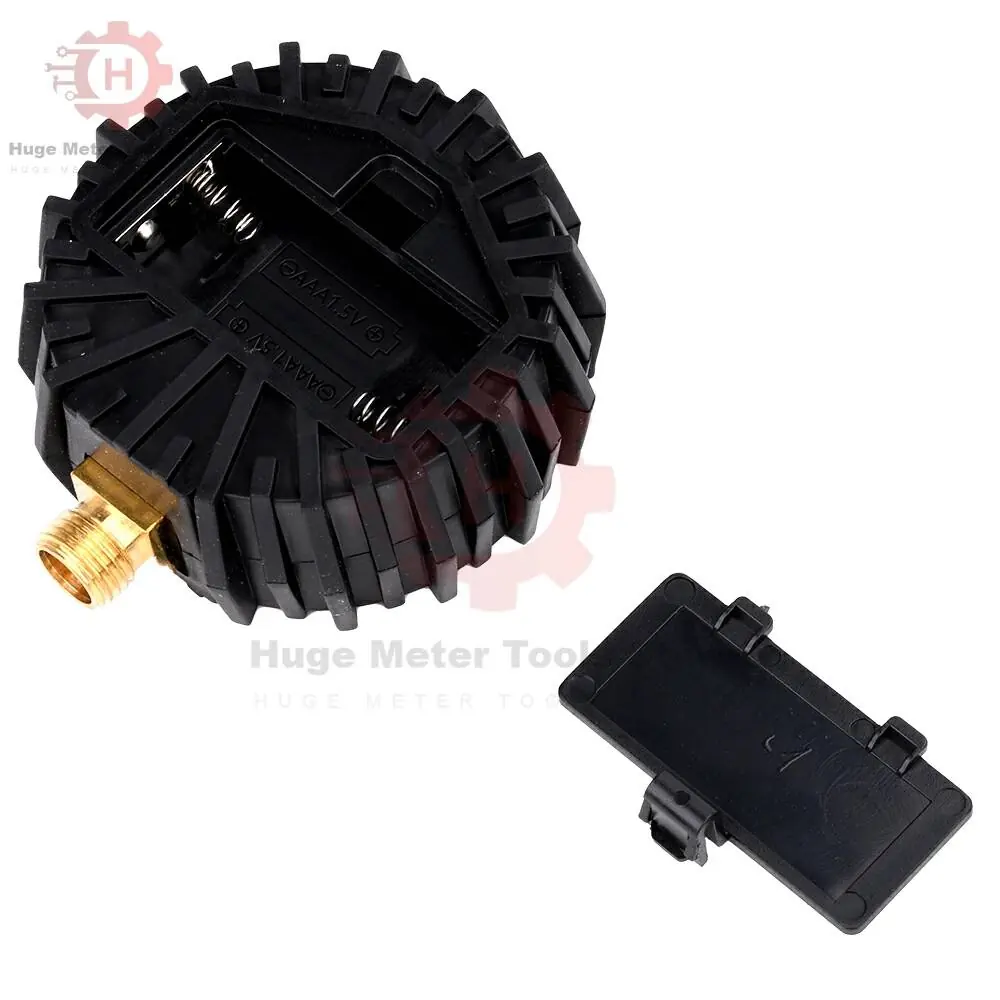

The device requires 2 AAA batteries (not included). To install or replace batteries, open the battery compartment cover located on the back of the unit. Ensure correct polarity alignment. The LCD battery symbol will flash when the battery voltage drops below 2.5V, indicating that replacement is necessary.
Technical Specifications
- Measurement Range: 0-200 PSI (13.79 bar, 14.06 kgf/cm², 1378.95 kPa)
- Accuracy: 0.14 PSI
- Working Temperature: -10 to 50 °C
- Power Supply: DC 3.0V (2 x AAA batteries)
- Working Current: ≤ 3mA (with backlight), ≤ 1mA (without backlight)
- Static Current: ≤ 5uA
- Thread Specification: 1/4 or 1/8 (13mm)
Manufacturer information
Aideepen
Practical help
Common problems
LCD battery symbol is flashing
The battery voltage is below 2.5V. Replace the 2 AAA batteries immediately.
Device does not turn on
Check if batteries are installed correctly and have sufficient charge.
Before use
- Ensure 2 AAA batteries are installed.
- Verify the thread size (1/4 or 1/8) matches your air system.
- Check that the rubber protective sleeve is intact.
- Confirm the ambient temperature is between -10 and 50 °C.
Show more Show less
Specs in practice
- Measurement Range
- The maximum pressure the gauge can measure is 200 PSI.
- Measurement Units

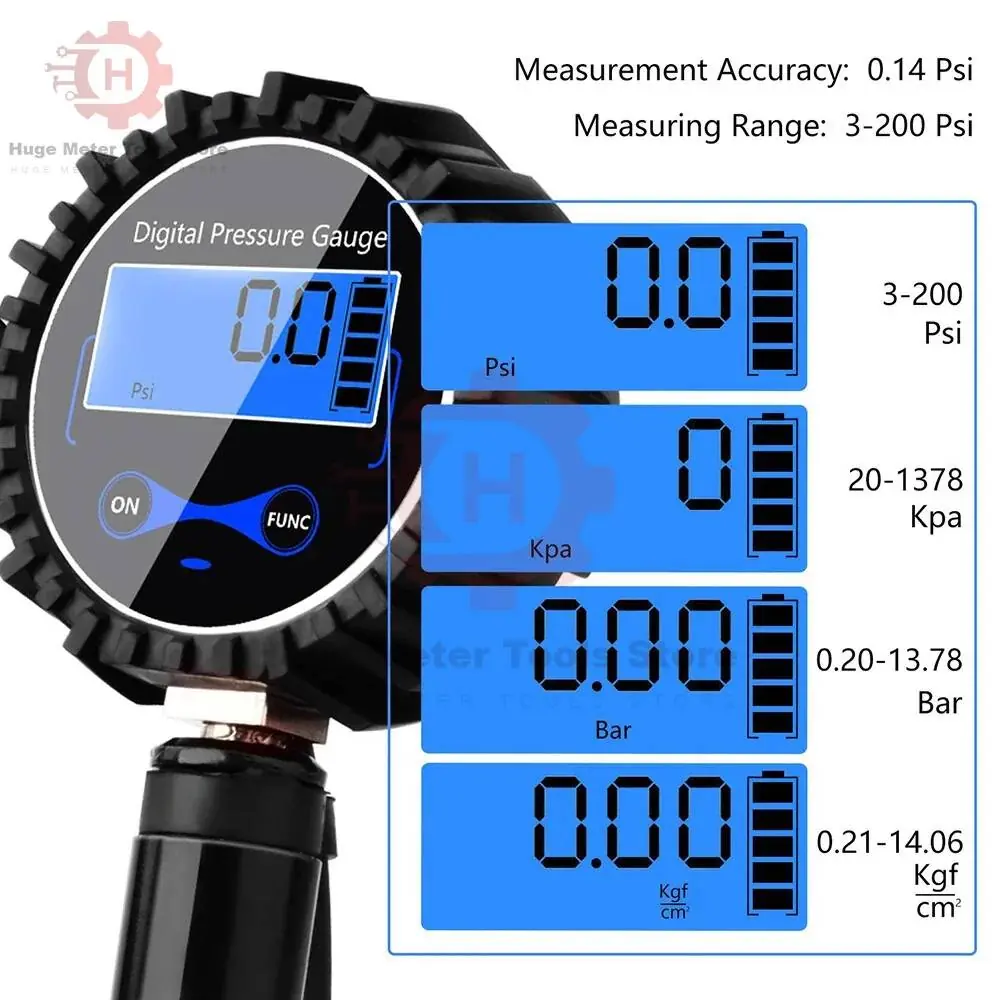

- The device supports switching between PSI, KPa, Bar, and Kgf/cm².
- Static Current
- The very low power consumption (≤ 5uA) when the device is idle.
Images and diagrams

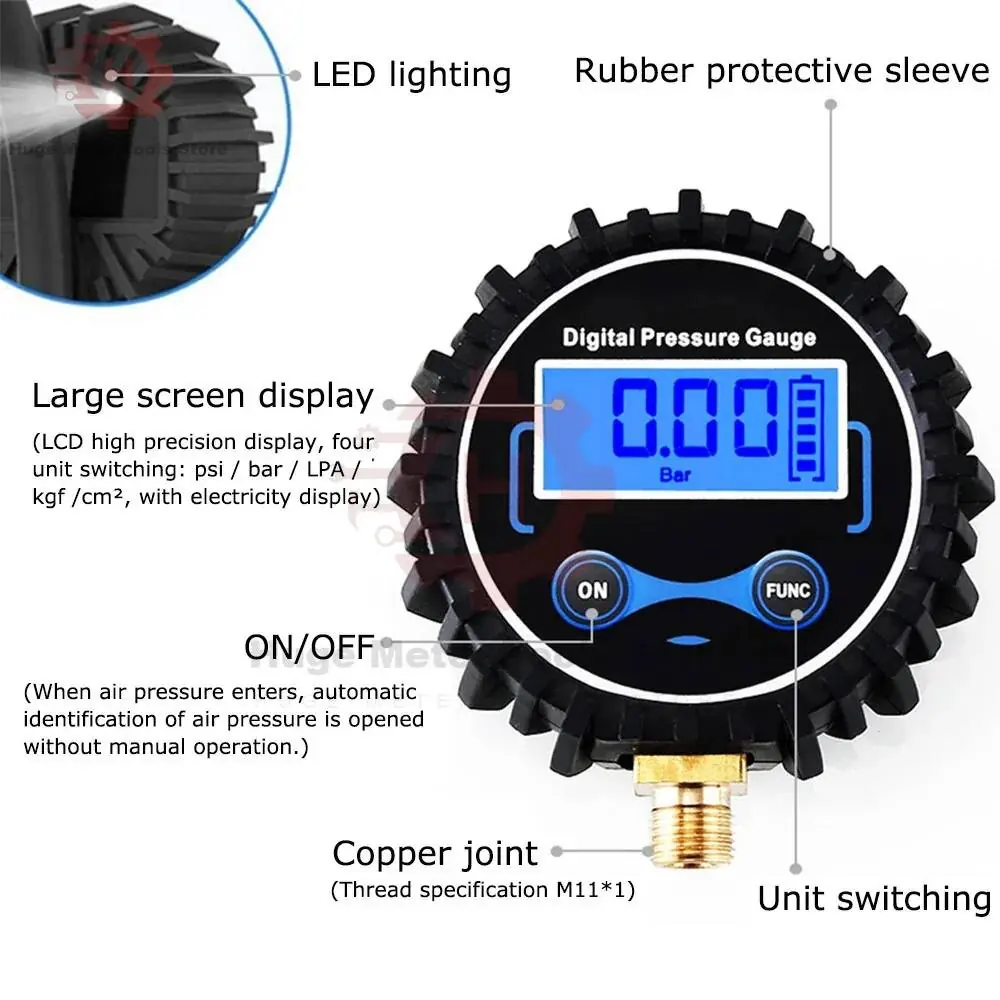

- The device features an ON button on the left and a FUNC (unit switching) button on the right.
- The copper joint uses a standard thread specification (M11*1).
- The LCD screen displays the current pressure and battery status.
Model compatibility
- Compatible with pneumatic systems, tire inflation, and air pressure systems.
- Available in 1/4 or 1/8 thread sizes.
