User Manual for Ambiano Table Top Fridge 17L MD 37182

Comprehensive user guide for the Ambiano Table Top Fridge 17L (Model MD 37182). Includes setup instructions, ventilation requirements, temperature control, door hinge reversal, maintenance, and troubleshooting.

Quick answers from the manual

Quick answer

The Ambiano Table Top Fridge 17L (MD 37182) is a compact refrigerator with a 17L capacity, suitable for cooling drinks and food. It features an adjustable temperature range of 4.5°C to 15°C and requires specific ventilation clearances of 10cm at the top/rear and 5cm at the sides. p. 3, 17, 23

Key actions

Adjusting temperature p. 17
Reversing door hinge p. 15
Cleaning fan filter p. 19

First start

Initial setup p. 16

Problems and fixes

Appliance not working

Check plug, cable, and fuse.

p. 20

Temperature not low enough

Check door seal, ensure door is closed, clean appliance.

p. 20

Maintenance and reset

Cleaning the fan filter p. 19

Technical specifications

Parameter	Value	Meaning	Pages
Model	MD 37182	Product identifier	p. 23
Storage capacity	17 l	Internal volume	p. 23

Where to find it in the PDF

Overview p. 3
Installation p. 4, 11
Door Hinge Reversal p. 15
Technical Data p. 23

Table of contents

Manual images

Click an image to enlarge

Page 2

Page 3

Page 4

Page 4

Page 27

Quick guide from the manual

The Ambiano Table Top Fridge 17L (MD 37182) is designed for cooling drinks and food. Before first use, ensure the appliance is unpacked, cleaned, and placed in a well-ventilated area. Allow 1-2 hours after connection before loading food. The temperature is adjustable via the internal control dial.

Safety information

Children: Keep packaging materials away from children. Children aged 8+ may use the appliance under supervision.
Ventilation: Maintain a minimum distance of 10 cm to the ceiling and rear wall, and 5 cm to the side walls to prevent damage to electronics.
Placement: Do not place near heat sources (ovens, radiators). Ensure the surface is stable and flat.
Electrical: Do not use extension cables. Ensure the plug is easily accessible.

Installation and setup

Place the appliance on a stable, flat surface. Compensate for unevenness by adjusting the front screw foot. Ensure the appliance is not placed with the front edge along the edge of a table or shelf to prevent tipping.

Changing the door hinge

The fridge is supplied with a right-hinged door. To reverse it:

Unplug the appliance and empty it.
Remove the top hinge cover and dummy plugs.
Undo the three screws on the upper hinge.
Remove the upper hinge and install it on the left side.
Tilt the appliance slightly backwards to access the lower hinge.
Remove the lower hinge and install it on the left side.
Align the door and tighten all screws.

Using the refrigerator

The temperature control dial (labeled 3 in the overview) allows you to set the cooling temperature between 4.5°C (Min) and 15°C (Max). Do not load the fridge until it has cooled down. For energy efficiency, keep the door closed as much as possible and do not place hot food inside.

Cleaning and maintenance

General Cleaning: Unplug the appliance. Wash the interior with a mild detergent (e.g., soda solution). Dry thoroughly.
Fan Filter: The fan on the rear has a dust filter. Push the two clips together to remove it, rinse under running water, dry, and re-install.
Drip Tray: Condensation collects in the drip tray below the fridge. It is permanently attached; absorb excess liquid with an absorbent cloth if necessary.
Interior Light: Replacement is reserved for qualified service personnel.

Troubleshooting

Appliance not working: Check if the plug is connected, the cable is undamaged, and the fuse is intact.
Temperature not low enough: Ensure the door closes tightly, avoid unnecessary opening, check the door seal, and ensure the appliance is clean.
Loud/vibrating: Adjust the feet and check if the air filter is clogged.

Technical data

Model: MD 37182Storage capacity: 17 LitresPower consumption: 50 WCooling range: +4.5°C to +15°CNoise emissions: 38 dBDimensions: 38.5 x 34.1 x 42.5 cm

Practical help

Common problems

Appliance not working

Check if the mains plug is connected, the connection cable is undamaged, and the fuse in the plug is intact.

Temperature not low enough

Ensure the door closes tightly, avoid opening the door unnecessarily, check the door seal, and ensure the appliance is clean.

Appliance operating loudly or vibrating

Adjust the feet to ensure the appliance is level and check if the air filter is clogged.

Before use

Unpack the appliance and remove adhesive tape.
Clean all parts thoroughly with a mild detergent.
Dry the appliance completely.
Set up in a suitable location with 10cm clearance at top/rear and 5cm at sides.
Connect to a wall socket.
Set the temperature control to Min and wait 1-2 hours before loading.

Specs in practice

Cooling temperature range: 4.5°C to 15°C
Storage capacity: 17 Litres
Noise emissions: 38 dB
Power consumption: 50 W

Images and diagrams

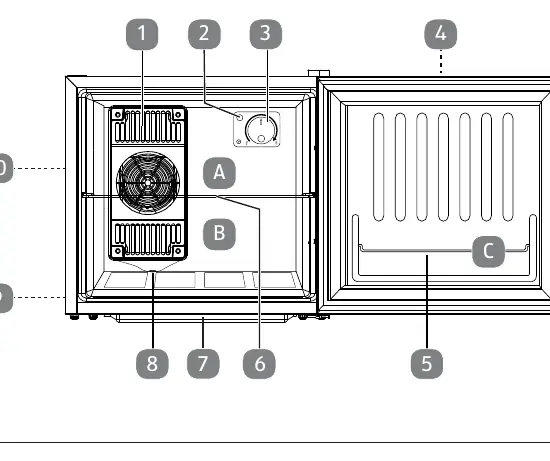

Page 3: Overview of components including fan, temperature control, and drip tray.
Page 4: Ventilation requirements showing 10cm clearance for top/rear and 5cm for sides.
Page 4/5: Door hinge reversal procedure.

Model compatibility

Climate class: SN/N
Ambient temperature range: 10°C to 32°C
