Anslut 029452 LED Ceiling Lamp User Manual
Quick guide for the Anslut 029452 LED ceiling lamp. Includes installation steps, safety instructions, maintenance, and technical specifications.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides essential instructions for the Anslut 029452 LED ceiling lamp. Key points include:
- Safety First: Always disconnect power before installation or maintenance.
- Installation: Requires drilling 3 holes in the ceiling. Do not remove rubber gaskets on the installation plate.
- Maintenance: Clean only with a dry or damp cloth. Do not use detergents or solvents.
- Usage: This is a dimmable, indoor-use-only light fixture. The light source is non-replaceable.
Product description
The Anslut 029452 is a dimmable LED ceiling lamp designed for indoor use. It features double insulation (safety class II) and does not require earthing.
Safety instructions
Failure to follow these instructions may result in death, injury, or damage to the product.
- Do not allow children or unauthorized persons to use the product.
- Do not subject the power cable or wires to mechanical stress.
- The light source is non-replaceable; the entire product must be replaced at the end of its life.
- Do not install near heat sources or in damp conditions.
- Do not attempt to repair the product if damaged; contact an authorized service center.
- Do not modify the product.
Installation
Warning: Turn off the power supply before installation.

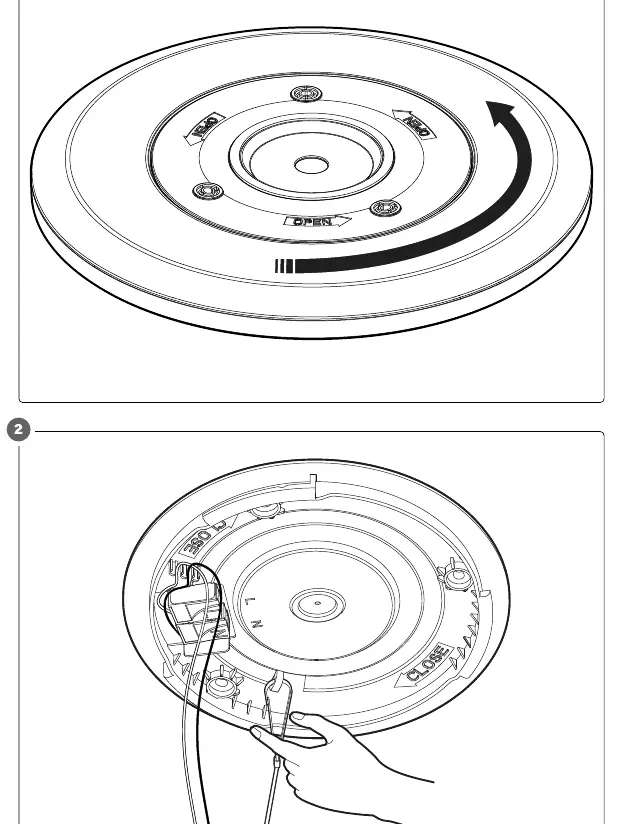

- Remove the cover (Figure 1).
- Unhook the safety cord (Figure 2).

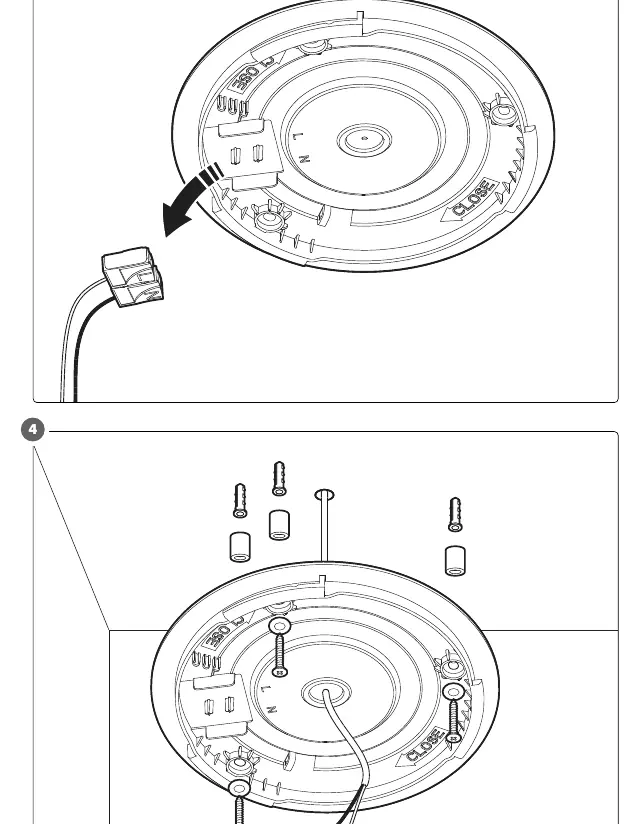

- Remove the cable connector (Figure 3).
- Measure and drill 3 holes in the ceiling. Thread the terminal cable through the center hole of the bracket and screw the bracket in place (Figure 4).

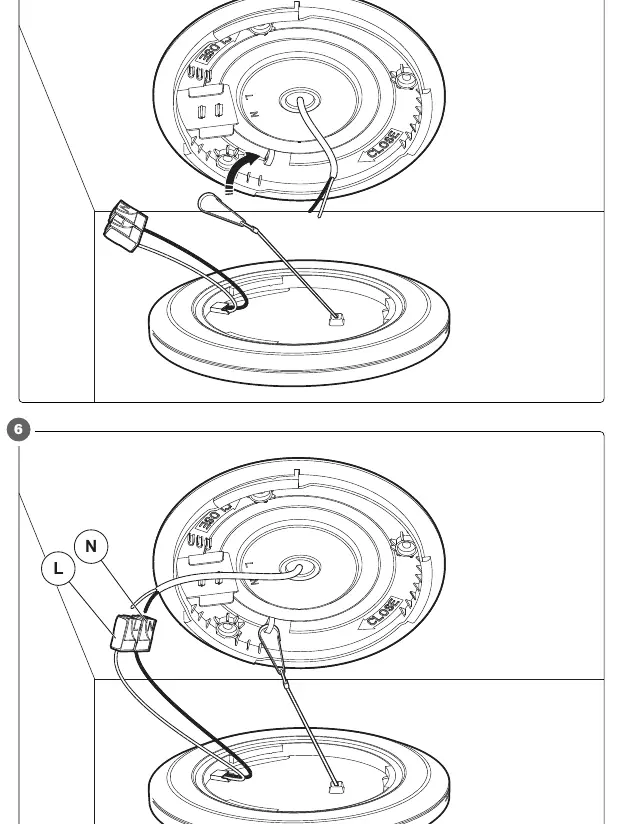

- Attach the safety cord (Figure 5).
- Connect the L and N wires to the terminal cable (Figure 6).
- Install the cable connector into the bracket (Figure 7).
- Attach the cover (Figure 8).
Maintenance
Warning: Turn off the power supply and let the product cool down before any maintenance.
Clean the product with a dry or damp cloth. Do not use detergents, alcohol, solvents, or equivalent substances to clean the product.
Technical data
- Voltage: 230 V AC ~ 50 Hz
- Power: 18 W
- Luminous flux: 1500 lm
- Colour temperature: 3000 K
- Protection rating: IP44
- Lifetime: 20,000 h
- Dimmable: Yes
- Weight: 610 g
- Dimensions: Ø29 x 2.3 cm
Manufacturer information
Anslut
Practical help
Common problems
Light does not turn on
Ensure the power supply is connected and the switch is on. Verify wiring connections (L and N) are secure.
Product is damaged
Do not use the product. Contact an authorized service center for assistance.
Cleaning difficulties
Use only a dry or damp cloth. Avoid detergents, alcohol, or solvents as they may damage the surface.
Before use
- Ensure the power supply is turned off at the main breaker.
- Verify the ceiling surface is suitable for mounting.
- Do not remove the rubber gaskets on the installation plate.
- Ensure you have the necessary tools (drill, screwdriver, etc.).
- Check that the light source is intact.
Specs in practice
- Dimmable: Yes
- Compatible with dimmer switches.
Images and diagrams
- Figure 1-2: Shows how to remove the cover and unhook the safety cord.
- Figure 4: Illustrates drilling the ceiling and mounting the bracket.
- Figure 6: Details the wiring connection for L (Live) and N (Neutral) wires.
- Figure 7-8: Shows re-installing the connector and attaching the cover.
Model compatibility
- Indoor use only.
- Not compatible with replaceable light sources.
- Double insulation (Class II) - no earth connection required.
