User Manual for Artemide Eclisse 0028040A Lamp
Quick guide for the Artemide Eclisse 0028040A lamp. Includes technical specifications, installation options, and usage instructions for the rotating shade mechanism.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Artemide Eclisse is a versatile lamp designed by Vico Magistretti. Its primary feature is the rotating inner shade, which allows the user to adjust the intensity of the light by "eclipsing" the light source, providing either direct or diffuse light. The lamp is designed for indoor use and can be placed on a table or mounted on a wall.
Technical specifications
- Product Code: 0028040A
- Voltage: 220V-240V
- Wattage: Max 5W
- Socket: E14
- Light Output: 170lm
- Dimensions: Height 180 mm, Diameter 120 mm, Base Diameter 120 mm
- Protection Rating: IP20 (Indoor use only)
- Material: Steel, technopolymer
Installation and usage
The Eclisse lamp is designed for flexibility. It can be used as a table lamp or mounted on a wall. To operate the light intensity, rotate the inner shell manually to cover or reveal the light source as desired. Ensure the lamp is used with an E14 LED Retrofit bulb not exceeding 5W.
Maintenance and safety
The lamp is rated IP20, meaning it is for indoor use and should be kept away from water and moisture. The "sputtering" coating technology used on the metal body is durable and environmentally friendly. Clean the lamp with a soft, dry cloth. Do not use abrasive cleaners that could damage the finish.
Manufacturer information
Artemide S.p.A.
Practical help
Common problems
Light intensity does not change
Ensure the inner shell is free to rotate and not obstructed by debris or improper positioning.
Lamp does not turn on
Verify that the E14 bulb is correctly installed and that the power supply matches the 220V-240V requirement.
Before use
- Verify the power supply is 220V-240V.
- Ensure the bulb used is an E14 LED Retrofit type.
- Check that the bulb wattage does not exceed 5W.
- Confirm the installation surface is suitable for a table or wall mount.
Images and diagrams

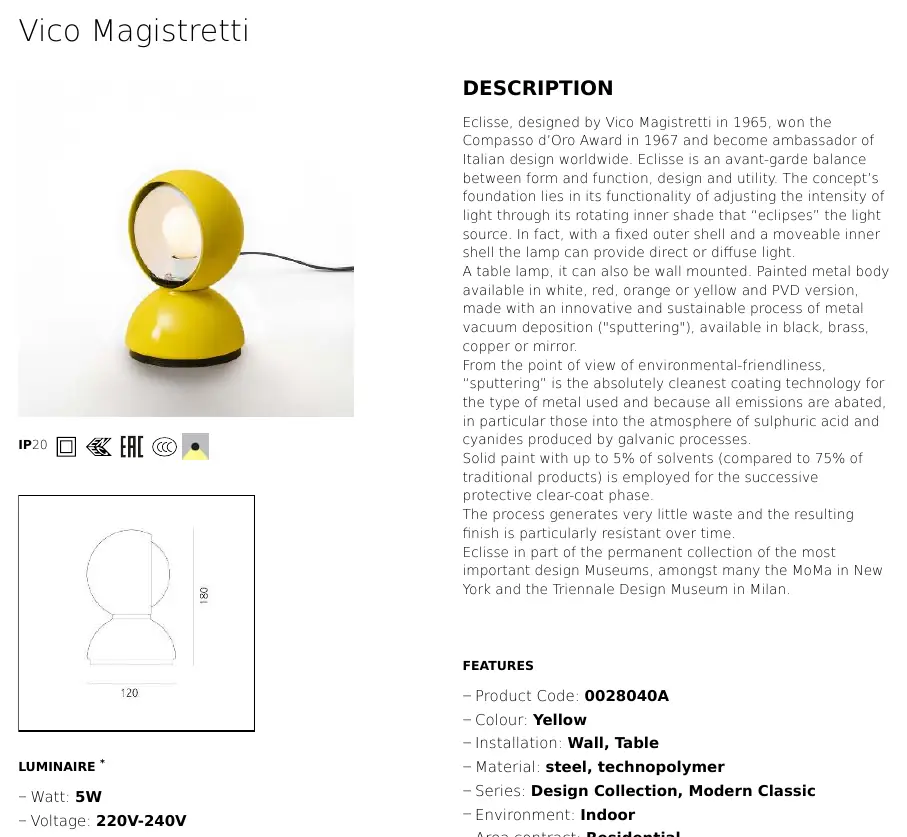

- The dimension diagram indicates a total height of 180mm and a diameter of 120mm for the lamp body.
Model compatibility
- Compatible with E14 LED Retrofit light sources.
