User Guide for Audi A4/A5 2.0L Clutch Kit

Quick guide from the manual

This document provides essential information for the installation, maintenance, and troubleshooting of the clutch kit. Always ensure the engine is cooled and the battery is disconnected before beginning any work.

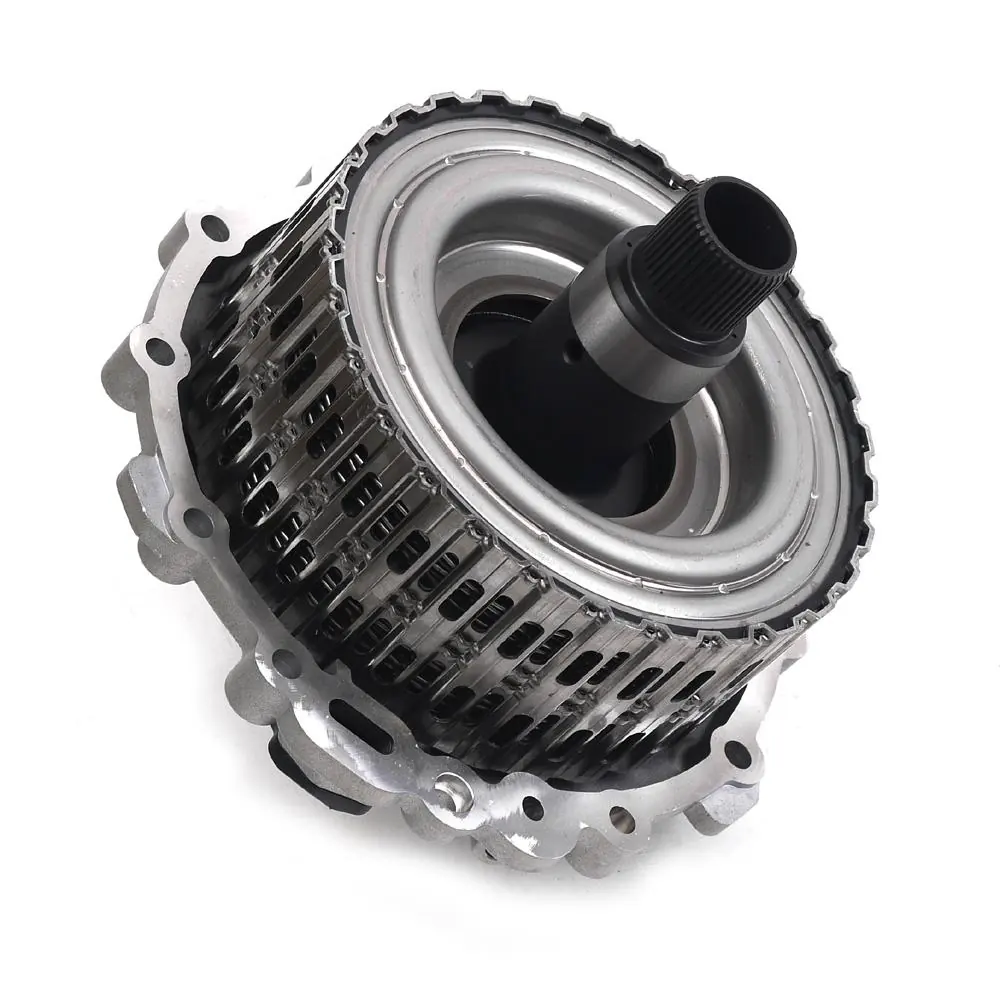

Product Overview

The clutch kit is designed for high-performance petrol and diesel engines. It is crafted from steel and copper to ensure durability and optimal functionality.

Installation Guide

Follow these steps for proper installation:

• Preparation: Ensure the engine is fully cooled and disconnect the battery to prevent accidental startup.
• Removal: Remove the old piston assembly using appropriate tools, taking care not to damage the cylinder bore.
• Inspection: Clean the cylinder bore and inspect for any signs of damage or wear.
• Installation: Apply a thin layer of engine oil to the piston skirt and ring grooves. Carefully align the piston with the connecting rod and secure with the piston pins.
• Reassembly: Follow the reverse order of disassembly to reinstall components, ensuring all bolts and fasteners are torqued to manufacturer specifications.
• Testing: Reconnect the battery and perform a functional test to ensure proper operation without leaks or noises.

Maintenance Tips

• Regular Checks: Inspect the piston assembly for signs of wear or damage during routine maintenance.
• Oil Changes: Use high-quality engine oil to lubricate and protect engine components.
• Cooling System: Maintain the cooling system to prevent overheating.
• Fuel Quality: Use fuel recommended by the vehicle manufacturer.

Safety Precautions

• Always wear protective gear, including gloves, safety glasses, and hearing protection.
• Ensure the engine is cool and properly secured before starting repairs.
• Avoid contact with hot surfaces and moving parts.
• Read and understand all safety warnings in your vehicle's owner manual.

Troubleshooting

• Engine Noise: Check for piston slap or bearing wear. Replace worn parts as necessary.
• Oil Consumption: Inspect for piston ring wear or cylinder bore scoring. Refurbish or replace affected components.
• Reduced Power: Verify timing chain/belt tension and valve clearance. Adjust as per manufacturer guidelines.

Warranty Information

The product comes with a 12-month warranty from the date of purchase, covering manufacturing defects. The warranty does not cover damage caused by misuse, improper installation, or normal wear and tear. Proof of purchase is required for claims.
