Baby / Activity Centers
User Manual for Baby Einstein SuperSeat Touch of Tunes 4-in-1 Seat
Comprehensive user guide for the Baby Einstein SuperSeat Touch of Tunes 4-in-1 Seat. Includes assembly instructions, safety warnings, battery installation, cleaning guidelines, and operating modes.
Quick answers from the manual
Quick answer
- The Baby Einstein SuperSeat Touch of Tunes 4-in-1 Seat is a versatile baby seat for floor play and booster use. It requires 3 AA batteries for the electronic toy and must be used on the floor or secured to a standard adult chair with a backrest. p. 1, 18, 22
Key actions
- Assemble the seat p. 19, 20
- Install batteries p. 19
- Attach to chair p. 22
First start
- Install 3x AA/LR6 batteries into the electronic toy, then assemble the base and tray components as shown in the assembly section. p. 19, 20
Problems and fixes
Toy malfunctions (distorted sound, dim lights)
Replace all three batteries simultaneously.
p. 3, 5, 7, 9Maintenance and reset
- Wipe plastic parts with damp cloth; machine wash straps; dishwasher safe tray. p. 3, 5, 7, 9
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Batteries | 3x AA/LR6 (1.5V) | Alkaline batteries required for electronic toy. | p. 3, 19 |
| Weight Capacity | 33 lbs / 15 kg | Maximum weight limit for the seat. | p. 2, 4, 6, 8 |
Where to find it in the PDF
- Safety Warnings p. 2, 4, 6, 8
- Assembly Instructions p. 19, 20
- Electronic Toy Usage p. 24, 25, 26, 27
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Baby Einstein SuperSeat Touch of Tunes 4-in-1 Seat is designed to grow with your child, offering multiple modes of use including a floor seat, activity floor seat, and a booster seat. This manual provides essential safety information, assembly instructions, and maintenance guidelines to ensure safe and proper use.
Safety Warnings
- Booster Seat: Only use on adult chairs with a backrest. Do not use on pedestal, swivel, rocking, or bench-style chairs. Ensure the chair seat is at least 17.5" (44.5 cm) wide and deep, and the backrest is at least 10" (25.4 cm) tall. Always secure the product to the chair using the bottom and back attachment straps.
- Floor Seat: Use ONLY on the floor. Never use on elevated surfaces.
- General: Never leave the child unattended. Always use the restraint system and adjust it to fit snugly. Stop using when the child can climb out or walk. Do not use if any parts are missing or damaged.
Assembly Instructions
The product requires adult assembly. Ensure all parts are present before beginning. The assembly involves attaching the base, tray, and electronic toy components. Refer to the parts list on page 16 to identify all components, including the base, soft foam insert, tray, straps, and electronic toy.

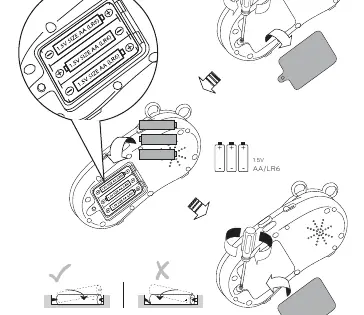

Battery Installation
The electronic toy requires (3) AA/LR6 (1.5V) alkaline batteries (not included). To install:
- Open the battery compartment on the electronic toy.
- Insert batteries matching the polarity markings.
- Do not mix old and new batteries or different types.
- Replace batteries if functions fail or sound becomes distorted.
Usage Modes
- Floor Seat: Use on the floor for infants who can hold their head up unassisted.
- Activity Floor Seat: Attach the toy bar and electronic toy to the base for interactive play.
- Booster Seat: Secure the seat to an adult chair using the provided straps. Ensure the child cannot push away from the table.

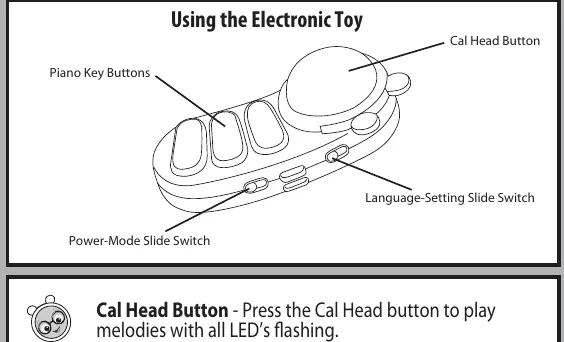

Using the Electronic Toy
The electronic toy features a Cal Head button for melodies, piano key buttons for piano sounds, and a mode switch. The mode switch allows you to select between Off, Piano Mode, and Discovery Mode. A language switch allows selection between English, Spanish, French, and German.
Care and Cleaning
- Plastic Parts/Soft Foam/Toy Bar/Hang Toys: Wipe clean with a damp cloth and mild soap. Air dry. Do not immerse in water.
- Harness/Straps: Machine wash with cold water, gentle cycle. No bleach. Air dry.
- Tray: Dishwasher safe. Wipe clean with a soft, clean cloth and mild soap.
Manufacturer information
Baby Einstein
Practical help
Common problems
Distorted sound, dim lights, or non-working motorized parts
Replace all three batteries with a fresh set of AA/LR6 alkaline batteries.
Toy not functioning
Check that batteries are installed with correct polarity and that the power switch is not in the 'Off' position.
Before use
- Ensure child can sit unaided (minimum 6 months of age).
- Verify all parts are present and undamaged.
- Check that the restraint system is correctly fitted and adjusted.
- For booster mode, ensure the adult chair is stable and meets minimum size requirements (17.5" wide/deep, 10" back).
- Install 3 fresh AA/LR6 alkaline batteries.
Specs in practice
- Weight Limit
- Maximum weight of 33 lbs (15 kg) or up to 36 months of age.
- Battery Type
- Requires 3x AA/LR6 (1.5V) alkaline batteries.
Images and diagrams
- Assembly diagrams show the correct attachment of the base, tray, and toy bar.

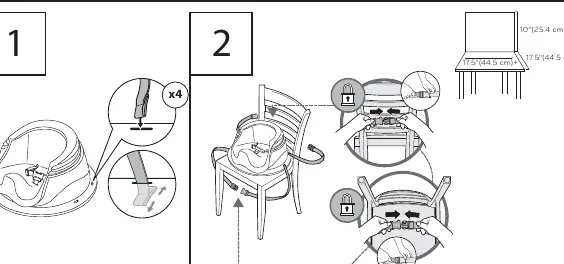

- Booster attachment diagrams illustrate securing the bottom and back straps to an adult chair.
Model compatibility
- Booster seat must only be used on adult chairs with a backrest.
- Do not use on pedestal, swivel, rocking, or bench-style chairs.
