User Manual for Baby Trend Expedition 2-in-1 Stroller Wagon
Quick guide for the Baby Trend Expedition 2-in-1 Stroller Wagon (Model CW01). Includes assembly instructions, safety warnings, folding/unfolding procedures, and maintenance tips.
Quick answers from the manual
Quick answer
- The Baby Trend Expedition 2-in-1 Stroller Wagon (CW01) is designed for up to two children (min 6 months old). It features a folding frame, adjustable handle, and safety harness. Always follow weight limits (55 lb per child, 110 lb total) and inspect before use. p. 1, 3
Key actions
- Assemble frame p. 5
- Attach wheels p. 6
- Fold stroller p. 10
- Use safety harness p. 12
First start
- Ensure all parts are present, assemble the frame, attach wheels, and verify all locks are engaged before placing a child in the stroller. p. 2, 5, 6
Problems and fixes
Wheels not locking
Push firmly until you hear a click.
p. 6
Stroller unstable
Check weight distribution and ensure it is fully opened.
p. 3Maintenance and reset
- Regularly check for loose screws, worn parts, or torn material. Clean with mild soap and water. p. 15, 16
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max weight per child | 55 lb | 24.94 kg | p. 3 |
| Max total weight | 110 lb | 49.89 kg | p. 3 |
Where to find it in the PDF
- Warranty p. 1
- Parts List p. 2
- Assembly p. 5, 6, 7, 8
- Maintenance p. 14, 15, 16
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Baby Trend Expedition 2-in-1 Stroller Wagon is designed for up to two children. Before assembly and use, please read all instructions carefully. Safety is paramount: never leave children unattended, always use the safety harness, and ensure the stroller is fully locked before use. Be aware of weight limits to prevent instability.
Safety Warnings and Limits
- Capacity: Designed for up to 2 children. Maximum weight per child is 55 lb (24.94 kg). Maximum total weight capacity (including accessories) is 110 lb (49.89 kg).
- Child Requirements: Children must be at least 6 months old and able to sit upright unassisted.
- Accessory Limits: Child tray max weight is 5 lb (2.26 kg). Soft parent organizer max weight is 2 lb (0.90 kg).
- Usage: Never use on stairways or escalators. Do not use with roller skates, in-line skates, skateboards, or bicycles.
Assembly
Frame Setup
Release the fold latch. Unfold the stroller frame by pulling the handle upward until it clicks into the locked position. The red indicator on the handle should not be visible when fully open.
Wheels
Front Wheels: Insert the axle pin into the wheel hub until it locks firmly. Pull on the assembly to ensure it is secure.
Rear Axle: Position the stroller with rear leg tubes facing upward. Place the rear axle with wheels over the rear legs and apply downward pressure on both sides until they lock into place.
Accessories
Soft Parent Organizer: Use the hook and loop fasteners to hang the organizer onto the stroller handle. Fasten tightly.
Child Tray: Align the slots on the tray with the stroller frame and slide down until locked.
Operation
Folding and Unfolding
Folding: Close the canopy. Use the double lock feature: push the safety lock up, lift the trigger, and pull both triggers together. Push down on the handle until the stroller is completely folded and the latch clicks.
Unfolding: Release the fold latch and pull the handle upward until it clicks into the locked position.
Safety Harness
Place the crotch strap between the child's legs. Insert harness buckles into the center clasp. Adjust waist straps for a snug fit by sliding the buckles.
Brakes
To engage, apply light downward pressure to the brake lever on each rear wheel. Ensure the stroller does not move. To release, gently lift the lever.
Maintenance
Regularly check for loose screws, worn parts, or torn material. Clean the stroller frame, plastic parts, and fabric using a mild solution of soap and water. Wipe surfaces with water to remove soap and allow to air dry.
Manufacturer information
Baby Trend, Inc.
Practical help
Common problems
Stroller will not fold
Ensure the handle is pushed completely to the front and the double lock feature is correctly engaged.
Wheels will not lock into place
Ensure they are pushed firmly into the frame until a distinct 'click' is heard.
Stroller feels unstable
Check that the stroller is fully opened and locked. Verify that weight limits (55 lb per child) are not exceeded.
Before use
- Check for loose screws, worn parts, or torn material.
- Ensure the stroller is fully opened and locked in place.
- Verify that all wheels are securely attached.
- Check that the safety harness is functional and adjusted.
- Ensure the child tray and parent organizer are properly attached.
Specs in practice
- Max weight per child
- 55 lb (24.94 kg)
- Max total weight
- 110 lb (49.89 kg)
- Child tray limit
- 5 lb (2.26 kg)
- Parent organizer limit
- 2 lb (0.90 kg)
Images and diagrams

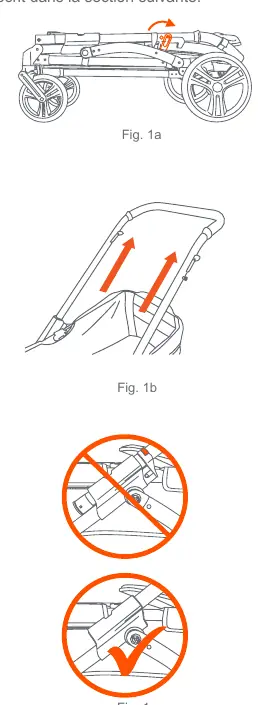

- Fig 1a-1c: Frame setup and locking indicator.
- Fig 2a: Front wheel attachment.
- Fig 3a: Rear axle and wheel assembly.
- Fig 8a-8c: Folding mechanism and double lock feature.
- Fig 10a: Safety harness adjustment.
Model compatibility
- Designed for up to 2 children.
- Children must be at least 6 months old and able to sit upright unassisted.
