User Manual for Anko 2-In-1 Reversible Stroller
Quick guide for the Anko 2-In-1 Reversible Stroller. Learn how to assemble, adjust the seat, use the harness, fold the stroller, and perform maintenance.
Quick answers from the manual
Quick answer
- The Anko 2-In-1 Reversible Stroller is designed for children from 0-36 months with a maximum weight of 15kg. It features a reversible seat, 3 recline positions, and a 5-point safety harness. p. 1, 3
Key actions
- Assemble the frame and wheels p. 5
- Adjust seat direction p. 7
- Fold the stroller p. 9
First start
- Check all parts for damage, assemble frame, attach wheels, and ensure all buckles are secure before first use. p. 5
Problems and fixes
Stroller tipping over
Use on flat or gently sloping surfaces; avoid high slopes or uneven ground.
p. 3Maintenance and reset
- Lubricate moving parts regularly, especially the wheels and lower chassis. p. 10
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max Child Weight | 15kg | Maximum weight capacity | p. 1, 3 |
| Basket Capacity | 2kg | Maximum load for basket | p. 3 |
Where to find it in the PDF
- Safety Warnings p. 2, 3
- Assembly p. 5
- Operation p. 6, 7, 8, 9
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Anko 2-In-1 Reversible Stroller is designed for children from 0 to 36 months with a maximum weight capacity of 15kg. It features a reversible seat, 3 recline positions, and a 5-point safety harness. Always ensure the tether strap is used and brakes are applied when the stroller is stationary.
Parts List
- Frame
- Seat and Bumper Bar
- Canopy
- Front Wheels
- Rear Wheels
Assembly Instructions
Set up the frame: Remove the frame from the box. Pull the handle bar in an upwards and forwards motion until a click is heard.
Front wheels: Push each front wheel pin into the front wheel socket until a click is heard.

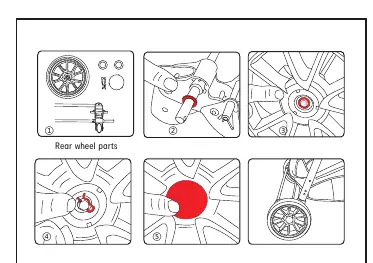

Rear wheels: Place one metal washer onto the end of the rear axle, place the wheel, add another washer, insert the straight side of the cotter pin through the hole to secure, and fit the cover. Repeat for the other wheel.
Seat and Accessories
Attaching the seat: Line up the seat connectors at either side of the seat unit with the frame housing and press down until it clicks into place. To remove, press the release buttons and lift.
Bumper bar: Insert into the slots on either side of the seat unit until it clicks. Tug to ensure it is secure.
Canopy: Insert into the anchors on the seat until it clicks. Fasten the grip fasteners and open the zip for the extension panel.
Adjustments
Seat direction: Press the release buttons on each side of the seat unit to remove and rotate the direction. Note: When using in bassinet mode for newborns, the seat must be rear-facing.
Backrest: Pull the button on the frame, lift it up, and release to adjust between the 3 recline positions (upright, half-reclined, reclined).
Front wheel lock: Push the button on each wheel down to fix the locks and push upward to disengage.
Operation
Brake operation: Apply downward pressure to the brake lever on the rear axle to engage. Lift up to release.
5-Point safety harness: Insert shoulder strap buckles into the centre hub housing. Insert the waist buckle into the housing. Ensure all are securely engaged. To release, press the centre button.
Folding: Remove the seat from the frame. Pull both release triggers and press the handle towards the floor. Secure with the locking latch on the side of the frame.
Care and Maintenance
- Inspect regularly for worn parts, torn materials, loose screws, or broken frame parts.
- Wipe seat, basket, and canopy clean with a damp cloth.
- Do not expose to salt water; rinse with fresh water if exposed.
- Lubricate moving parts, especially wheels and lower chassis, regularly.
- Do not fold or store while wet to prevent mildew.
Manufacturer information
Anko
Practical help
Common problems
Stroller unstable
Ensure the load does not exceed 15kg and avoid using on high slopes or uneven surfaces.
Harness loops
Never leave harness buckles unfastened when not in use to prevent strangulation hazards.
Stroller won't fold
Remove the seat from the frame first, then pull both release triggers and press the handle towards the floor.
Before use
- Check all parts for defects, loose screws, or sharp edges.
- Ensure brakes are applied when the stroller is stationary.
- Verify the child is secured in the harness at all times.
- Ensure the tether strap is used.
- Check that all clamps and buckles are securely fixed.
Specs in practice
- Basket Capacity
- Maximum 2kg load.
Images and diagrams
- Assembly steps for frame and wheels.
- Seat attachment and removal mechanism.
- Harness adjustment points.
- Folding sequence.
Model compatibility
- Do not use accessories other than those approved by the manufacturer.
- Not suitable for running or skating.
