User Manual for Baby Trend Tour LTE 2-in-1 Stroller Wagon
Quick guide for the Baby Trend Tour LTE 2-in-1 Stroller Wagon. Includes assembly instructions, safety warnings, folding procedures, and maintenance tips.
Quick answers from the manual
Quick answer
- The Baby Trend Tour LTE 2-in-1 Stroller Wagon is designed for up to 2 children (min 6 months old). Always ensure the frame is locked (green indicators visible) and use the safety harness. Max total weight capacity is 94 lbs (42.63 kg). p. 3, 4, 5
Key actions
- Folding the stroller p. 12, 13
- Engaging brakes p. 15
First start
- Frame setup p. 5
- Wheel attachment p. 6, 7, 8, 9
Maintenance and reset
- Cleaning p. 18, 19
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max weight per child | 45 lbs (20.41 kg) | Maximum weight capacity per child | p. 3, 4 |
| Total weight capacity | 94 lbs (42.63 kg) | Maximum weight capacity including accessories | p. 3, 4 |
Where to find it in the PDF
- Parts List p. 2
- Assembly p. 5, 6, 7, 8
- Maintenance p. 16, 17, 18, 19
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Baby Trend Tour LTE 2-in-1 Stroller Wagon is designed for up to 2 children. Children must be at least 6 months old and able to sit upright unassisted. Always ensure the frame is fully locked (green indicators visible) before use. Do not exceed the weight limits: 45 lbs (20.41 kg) per child, with a total capacity of 94 lbs (42.63 kg) including accessories.
Assembly
Frame Setup
Unfold the stroller frame by pulling the handle upward until it clicks into a locked position. Important: Check that the GREEN indicators are visible to ensure the frame is securely locked.
Front Wheels
Rotate the wheel to point the pin hole upward. Push each front wheel assembly into the front wheel post until they lock into place. Pull on the wheel assembly to ensure it is securely attached.

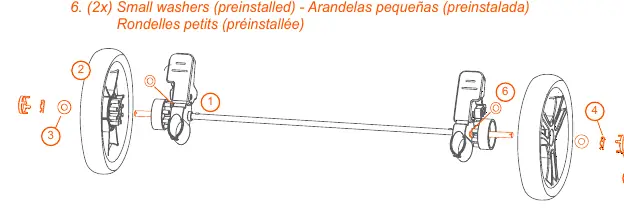

Rear Axle and Wheels
Remove all parts from the bag. Follow the assembly order: Axle, Rear wheel, Large washers, Pins, Caps, and Small washers (preinstalled). Insert the rear wheel assembly into the frame bushing from the rear side. Ensure the pins click completely into the rear wheel and attach to the frame bushing.
Canopy and Organizer
Canopy: Locate the R (Right) and L (Left) indicators on the interior side of the connection. Insert the R connection then the L connection into the frame from the pull handle end. Press firmly.
Parent Organizer: Use the hook and loop straps to hang the organizer onto the stroller handle. Fasten tightly.
Operation
Folding and Unfolding
Folding: Pull both triggers together to fold the wagon. Push down on the stroller handle until the stroller is completely folded. Use the fold latch to lock the frame securely. Ensure all fabric parts are tucked in for a compact fold.
Unfolding: Release the fold latch and pull the stroller handle upward until it clicks into the locked position. Verify the green indicators are visible.
Safety Harness
Place the crotch strap between the child's legs and insert the harness buckles into the center clasp. Adjust the waist straps for a snug fit by sliding the buckles.
Brakes
To engage, apply light downward pressure to the brake levers on the rear axle. The stroller may require slight movement to align the teeth. To release, gently lift up on the brake lever.
Maintenance
Surface wash the stroller frame, plastic parts, and fabric with a mild solution of soap and water. Wipe surfaces with water to remove soap solution and air dry. Regularly check for loose screws, worn parts, or torn material. Replace or repair parts as needed.
Manufacturer information
Baby Trend, Inc.
Practical help
Common problems
Stroller will not fold
Ensure all fabric parts are tucked in neatly and that both triggers are pulled together simultaneously.
Wheels do not lock into place
Ensure the wheel assembly is pushed completely into the post/bushing until it clicks. If it still does not lock, contact customer service.
Stroller feels unstable
Check that the frame is fully locked (green indicators visible). Ensure weight limits are not exceeded (45 lbs per child, 94 lbs total).
Before use
- Check for loose screws, worn parts, or torn material.
- Ensure the frame is fully locked (green indicators visible).
- Verify all parts are present and securely attached.
- Check that the safety harness is adjusted for a snug fit.
- Ensure brakes are disengaged before moving.
Specs in practice
- Max weight per child
- 45 lbs (20.41 kg)
- Max total weight capacity
- 94 lbs (42.63 kg) including accessories
- Parent organizer limit
- 2 lbs (0.90 kg)
- Side pocket limit
- 1 lb (0.45 kg)
Images and diagrams
- Fig 1c: Shows the green indicator confirming the frame is locked.
- Fig 4c: Illustrates the correct order of rear axle assembly components.
- Fig 10: Shows how to adjust the safety harness for a snug fit.
- Fig 12: Shows how to engage and release the rear wheel brakes.
Model compatibility
- Designed for up to 2 children only.
- Children must be at least 6 months old and able to sit upright unassisted.
