User Manual for Bella Basics 1.7L Electric Kettle
Quick guide for the Bella Basics 1.7L Electric Kettle. Learn how to operate, clean, descale, and safely use your kettle with this concise manual summary.
Table of contents
Quick Guide
This manual provides instructions for the Bella Basics 1.7L Electric Kettle. Key points include:
- Capacity: Do not fill above the MAX line.
- Safety: Always ensure the lid is securely closed before operating. Do not move the unit while switched on.
- Maintenance: Regularly descale the kettle to prevent mineral buildup and off-flavors.
- Boil-Dry Protection: The unit will automatically turn off if it is empty or boils dry.

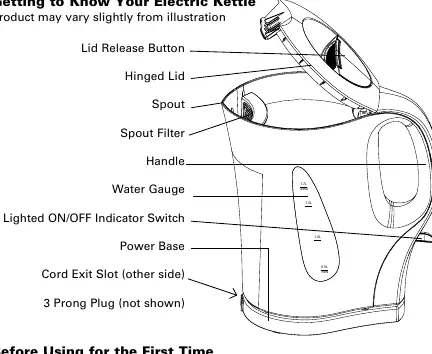

Getting to Know Your Electric Kettle
The kettle consists of the following main components:
- Lid Release Button: Used to open the hinged lid.
- Spout Filter: Located behind the spout to catch scale.
- Water Gauge: Indicates the water level (MIN to MAX).
- Lighted ON/OFF Switch: Illuminates when the kettle is heating.
- Power Base: The base unit that connects to the power outlet.
Operating Instructions
Follow these steps to boil water:
- Place the power base on a stable, level surface near an outlet.
- Ensure the ON/OFF switch is in the OFF (up) position.
- Fill the kettle with fresh, cold water between the MIN and MAX levels.
- Close the lid securely until it clicks.
- Place the kettle on the power base and plug it into a 120V AC outlet.
- Press the ON/OFF switch down to the ON position. The light will turn on.
- The kettle will turn off automatically once the water reaches a rolling boil.
- Lift the kettle from the base by the handle to pour.
Cleaning and Maintenance
Always unplug the kettle and allow it to cool completely before cleaning.
- Exterior/Interior: Wipe with a soft, damp cloth. Do not immerse the kettle, power base, or cord in water.
- Filter Cleaning: Open the lid, lift the filter using the flap, rinse in warm water, and gently remove scale with a soft brush. Reassemble by pushing it back until it clicks.
- Descaling: If mineral deposits form, use a descaling solution or a mixture of 3 cups white vinegar and 2 cups water. Soak overnight, then boil, discard, and rinse thoroughly with fresh water several times.
Safety Precautions
- Do not touch hot surfaces; use the handle.
- Do not operate the kettle without water.
- Keep the appliance at least 4 inches away from walls during operation.
- Do not leave the kettle unattended while in use.
- Do not use the kettle if the body or handle shows signs of cracks or damage.
Manufacturer information
bella
Practical help
Common problems
Kettle does not turn off after boiling
Ensure the lid is fully closed and clicked into position.
Water has an off flavor or takes too long to boil
Mineral deposits (scale) may have formed inside. Perform the descaling procedure.
Kettle does not heat
Check that the power cord is plugged in, the switch is in the ON position, and there is sufficient water (above MIN level).
Before use
- Boil a full kettle of water once and discard it before first use.
- Ensure the power base is on a stable, level surface.
- Check that the ON/OFF switch is in the OFF position.
- Fill with fresh, cold water between MIN and MAX levels.
- Ensure the lid is securely closed.
Images and diagrams
- Lid Release Button: Press to open the hinged lid.
- Water Gauge: Shows water level inside the kettle.
- Lighted ON/OFF Switch: Indicates when the kettle is heating.
- Spout Filter: Removable filter located behind the spout.
Model compatibility
- Use only the provided power base.
- Plug into a 120V AC electrical outlet only.
