Belling Cookcentre 110cm Dual Fuel Range Cooker User Guide

Product Overview

The Belling Cookcentre 110cm Dual Fuel Range Cooker is a high-capacity, freestanding appliance designed for modern kitchens. It features a 7-burner gas hob, including a powerful 4kW wok burner, and two electric ovens with a combined total capacity of 199 litres. The unit is engineered for versatility, offering a fanned main oven with AirFry functionality, a conventional second oven, a separate variable electric grill, and a dedicated storage compartment.

Key Features and Functions

The cooker is equipped with several advanced features to simplify cooking. The fanned main oven includes specialized functions such as AirFry, defrost, dough proving, slow cook, and keep warm. The second oven provides conventional cooking capabilities. Both ovens feature easy-clean enamel interiors and halogen lighting for better visibility. The hob is fitted with cast iron pan supports and automatic ignition for convenience and safety.

Installation and Safety

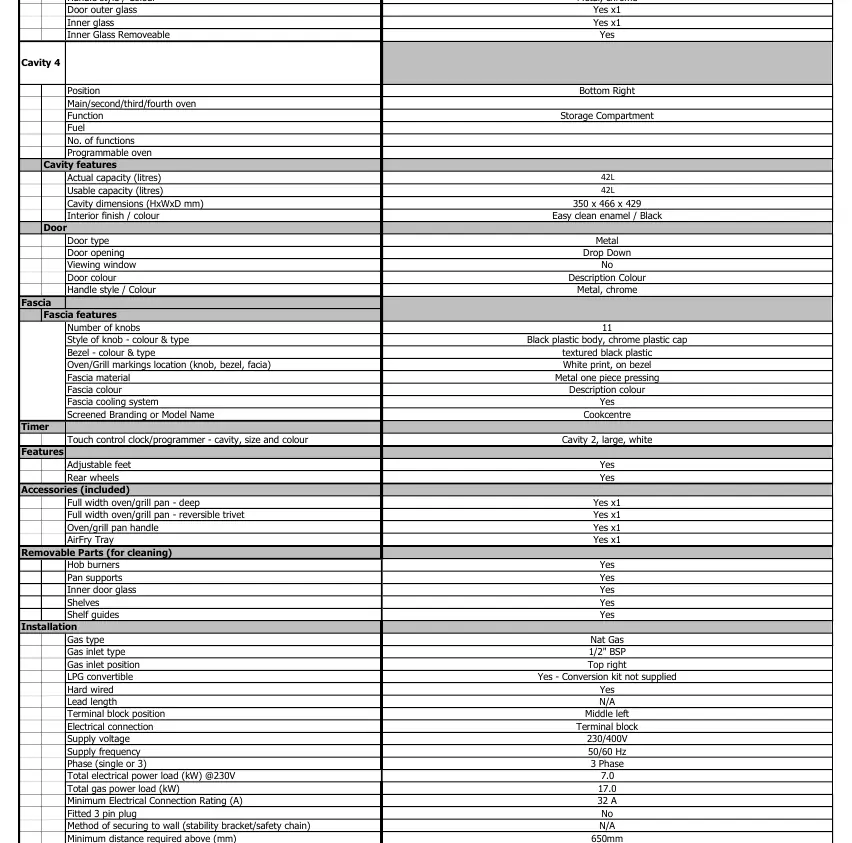

This appliance requires a hard-wired electrical connection (3-phase, 32A) and is configured for Natural Gas (1/2" BSP inlet). It is LPG convertible, though the conversion kit is not supplied. A minimum clearance of 650mm is required above the hob. The unit features a fascia cooling system to manage heat during operation. Ensure all installation work is performed by a qualified professional in accordance with local regulations.

Maintenance and Cleaning

To maintain the cooker, several components are designed to be removable, including hob burners, pan supports, inner door glass, shelves, and shelf guides. The easy-clean enamel interior helps reduce the effort required for routine maintenance. Always ensure the appliance is cool before attempting to clean any surfaces or removing parts.
