Belling Cookcentre 110DF Dual Fuel Range Cooker Specification Sheet
Technical specifications and features for the Belling Cookcentre 110DF dual fuel range cooker, including details on its 7-burner gas hob, dual electric ovens, grill, and storage compartment.
Table of contents
Product Overview
The Belling Cookcentre 110DF is a 110cm wide dual fuel range cooker designed for modern kitchens. It combines the precision of a 7-burner gas hob with the versatility of two electric ovens, a separate variable electric grill, and a dedicated storage compartment. The unit features a sleek, contemporary finish and is built with easy-clean enamel interiors.
Hob and Cooking Features
The gas hob is equipped with 7 burners of varying sizes, including a powerful 4kW wok burner for high-heat cooking. It features cast iron pan supports, automatic ignition, and flame safety thermocouples. The main electric oven offers fanned cooking with multiple functions, including AirFry, defrost, dough proving, and slow cook. The second oven provides conventional cooking, while the separate grill compartment offers variable heat control.

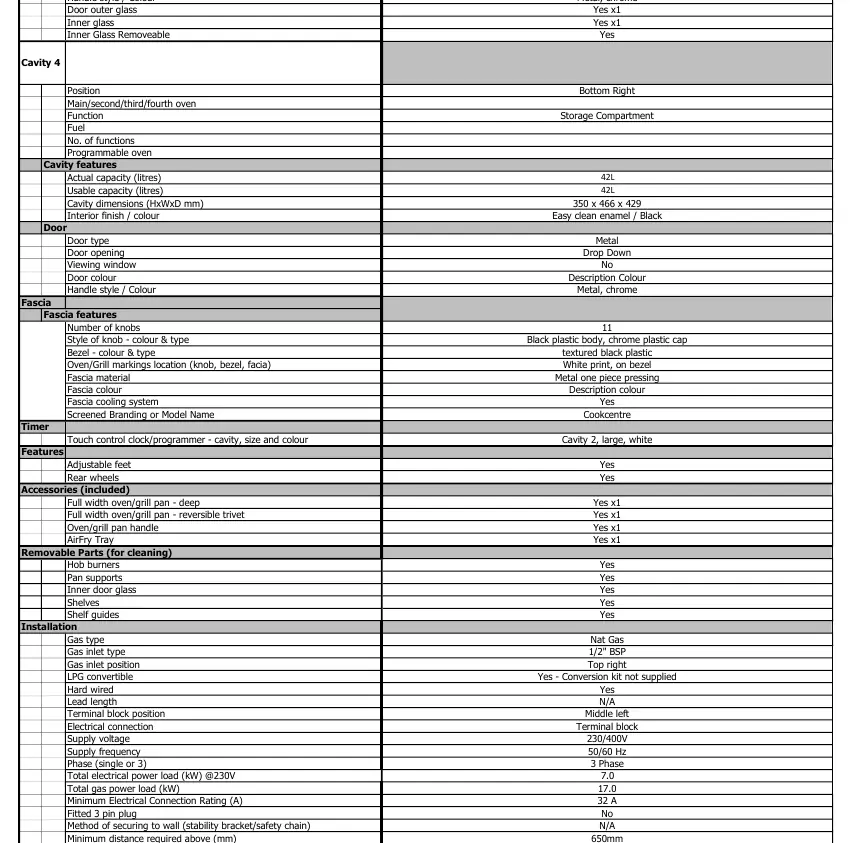

Technical Specifications
The appliance requires a 3-phase electrical connection with a 32A rating and a total electrical load of 7.0kW. The gas system is set for Natural Gas, though it is LPG convertible (conversion kit not supplied). The unit measures 900-930mm in height, 1096mm in width, and 600mm in depth. It includes a Maxi-Clock programmer for the main oven and features a fascia cooling system for safety.
Maintenance and Cleaning
To ensure longevity and performance, the cooker is designed with removable parts for easier maintenance, including hob burners, pan supports, inner door glass, shelves, and shelf guides. The interior is finished with easy-clean enamel, and the inner door glass is removable for thorough cleaning.
Installation Requirements
The cooker must be hard-wired to the electrical supply. A minimum clearance of 650mm is required above the hob. The gas inlet is located at the top right, and the electrical terminal block is positioned at the middle left. The unit is freestanding and features adjustable feet and rear wheels for positioning.
Manufacturer information
Belling
Practical help
Common problems
Gas hob fails to ignite
Ensure the gas supply is on and check that the burner caps are correctly seated. Verify that the automatic ignition system is clean and free of debris.
Oven not heating
Check that the electrical supply is active and the circuit breaker has not tripped. Ensure the oven function and temperature controls are correctly set.
Difficulty cleaning oven interior
The oven is finished with easy-clean enamel. Use a damp cloth with mild detergent. Avoid abrasive cleaners that may damage the enamel surface.
Before use
- Verify the gas type (Natural Gas) matches your supply.
- Ensure a 32A electrical connection is available.
- Check that the minimum clearance of 650mm above the hob is maintained.
- Confirm all burner caps and pan supports are correctly positioned.
- Ensure the oven shelves and shelf guides are properly installed.
Specs in practice
- Total Electrical Load (7.0kW)
- The maximum power consumption of the appliance when all electric components are in use.
- Wok Burner (4.0kW)
- The highest power burner designed for rapid heating and large pans.
Model compatibility
- LPG convertible, but the conversion kit is not supplied with the unit.
- Requires a 3-phase electrical supply.
- Not supplied with a fitted 3-pin plug; must be hard-wired.
