User Manual for Bestway 1.07m Pool Ladder 58330
Get started with your Bestway 1.07m (42") Pool Ladder (Model 58330). This guide covers assembly, safety warnings, maintenance, winterization, and technical specifications.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Bestway 1.07m (42") Pool Ladder (Model 58330) is designed for entering and exiting above-ground swimming pools. Before assembly, ensure you have a crosshead screwdriver and an adjustable wrench. The ladder is intended for use by one person at a time and must be placed on a solid base. Always supervise children when the ladder is in use and remove it from the pool when not in use to prevent unauthorized access.
Safety warnings
- Solid base: Always locate the ladder on a solid, level surface.
- Supervision: The ladder is not a toy. Use only under competent adult supervision.
- Usage: Only one person should use the ladder at a time. Face the ladder when entering or exiting the pool.
- Prohibitions: Do not dive from the ladder, pool side, or nearby objects.
- Maintenance: Regularly check screws and retention clips for rust or damage. Keep small parts away from children.
Assembly
Assembly requires a crosshead screwdriver and an adjustable wrench. Follow the step-by-step diagrams provided in the manual (pages 3-8). Ensure all components are securely fastened. Drawings in the manual are for illustration purposes and may not reflect the exact product scale.
Maintenance and storage
Before each use, inspect the ladder for any rust or loose parts. If rust is detected, replace the screws or retention clips immediately. When not in use, ensure the ladder is clean and dry. Store it in a cool, dry location out of the reach of children.
Winterization
During the off-season (winter months), remove the ladder from the swimming pool. Carefully disassemble all components, clean them, and dry them thoroughly before storage.
Specifications
- Maximum load weight: 150kg (330lbs).
- Compatibility: Designed for pools with a maximum wall height of 1.07m (42") and a maximum wall width of 30cm (11.8").
Manufacturer information
Bestway
Practical help
Common problems
Ladder instability
Ensure the ladder is placed on a solid, level base and verify that all screws and retention clips are tightened.
Rust on components
Inspect screws and retention clips before every use. If rust is found, replace the affected parts immediately.
Before use
- Check that the ladder is placed on a solid base.
- Verify all screws and retention clips are secure.
- Ensure no rust is present on any components.
- Confirm the ladder is clean and dry.
- Ensure the ladder is only used by one person at a time.
Specs in practice
- Maximum load weight
- 150kg (330lbs) - do not exceed this limit.
- Max wall height
- 1.07m (42") - suitable for pools up to this height.
- Max wall width
- 30cm (11.8") - maximum width of the pool wall the ladder can accommodate.
Images and diagrams

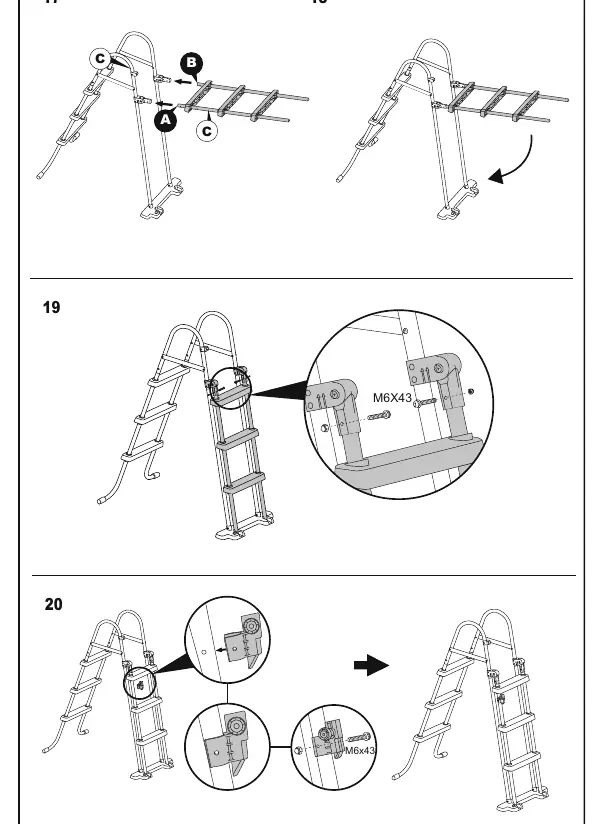

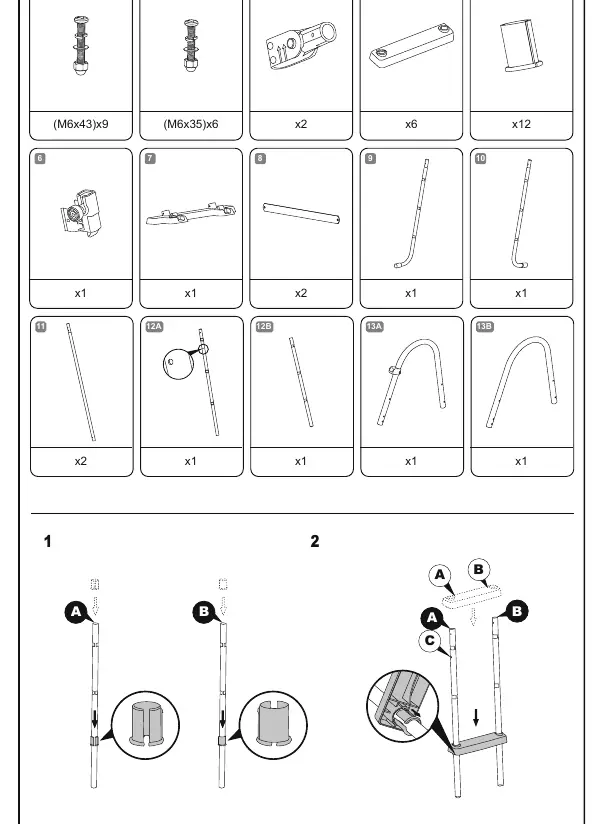

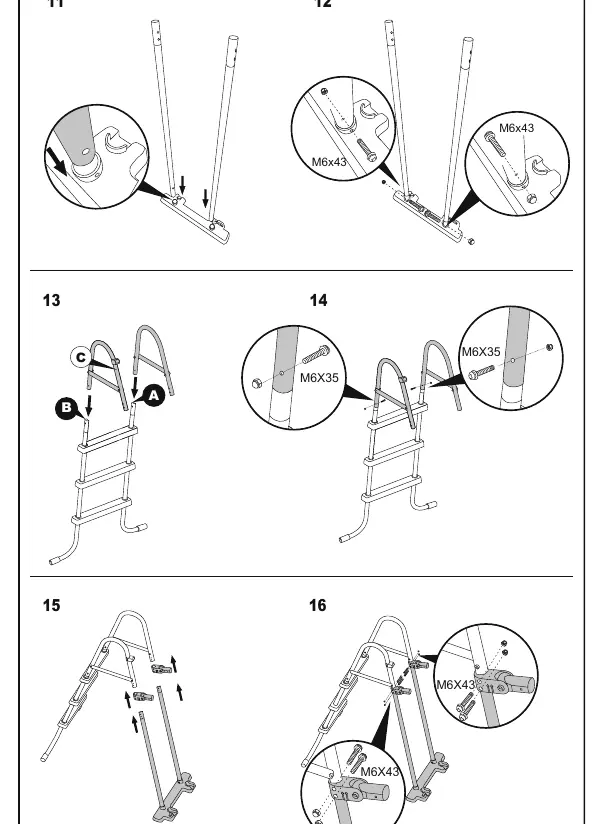

- Pages 3-8 provide a detailed, step-by-step visual guide for assembling the ladder components.
- Page 9 provides the overall dimensions of the assembled ladder.
Model compatibility
- Designed for pools with a maximum wall height of 1.07m (42") and a maximum wall width of 30cm (11.8").
