Bestway 42in. (1.07m) Pool Ladder User Manual
Quick guide for the Bestway 42in. (1.07m) Pool Ladder (Model 58335). Includes assembly instructions, safety warnings, maintenance tips, and technical specifications.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential safety, assembly, and maintenance instructions for the Bestway 42in. (1.07m) Pool Ladder (Model 58335/58335E). The ladder is designed specifically for pools with a wall height of 42 inches (1.07m). Assembly requires a crosshead screwdriver or an adjustable wrench.
Safety Warnings
- One person at a time: Only one person should be on the ladder at any given time.
- No diving or jumping: Never dive or jump from the ladder, pool side, or nearby objects.
- Proper supervision: The ladder should only be placed in the pool when proper adult supervision is present.
- Entry/Exit: Always face the ladder when entering or exiting the pool.
- Avoid entrapment: Do not swim through, behind, or around the ladder.
- Storage: Remove and secure the ladder when the pool is not in use or when no adult is present.
- Small parts: Keep all small ladder parts out of the reach of children.
Assembly Instructions
The assembly process involves connecting the ladder frame components and securing them with the provided screws and clips.
- Preparation: Ensure you have a crosshead screwdriver or adjustable wrench.
- Frame Assembly: Assemble the ladder sides (5A and 5B) by inserting the top caps (3) and connecting the ladder sections.
- Step Installation: Attach the steps (2) to the ladder sides (5A and 5B) using the provided hardware.
- Final Assembly: Connect the top arch (6) to the ladder sides using the M6x36 screws and nuts. Ensure all connections are tight and secure.
Maintenance and Storage
- Pre-use check: Always inspect the ladder before each use. Check all assembly screws and retention clips.
- Rust prevention: Replace screws and retention clips immediately if any rust is detected.
- Storage: Ensure the ladder is clean and dry before storing. Place it in a cool, dry location out of the reach of children.
Technical Specifications
- Maximum load weight: 672 lbs (305 kg).
- Compatibility: Designed for pools with a wall height of 42 inches (1.07m).
Manufacturer information
Bestway
Practical help
Common problems
Rust on screws or retention clips
Replace the affected screws and clips immediately before further use.
Ladder instability
Ensure the ladder is placed on a solid base and all assembly screws are tightened securely.
Before use
- Check ladder for any signs of rust
- Verify all assembly screws are tight
- Ensure retention clips are secure
- Confirm ladder is on a solid, level base
- Ensure adult supervision is present if the pool is in use
Specs in practice
- Maximum load weight
- 672 lbs (305 kg)
- Pool wall height
- Designed for 42in (1.07m) height pools
Images and diagrams

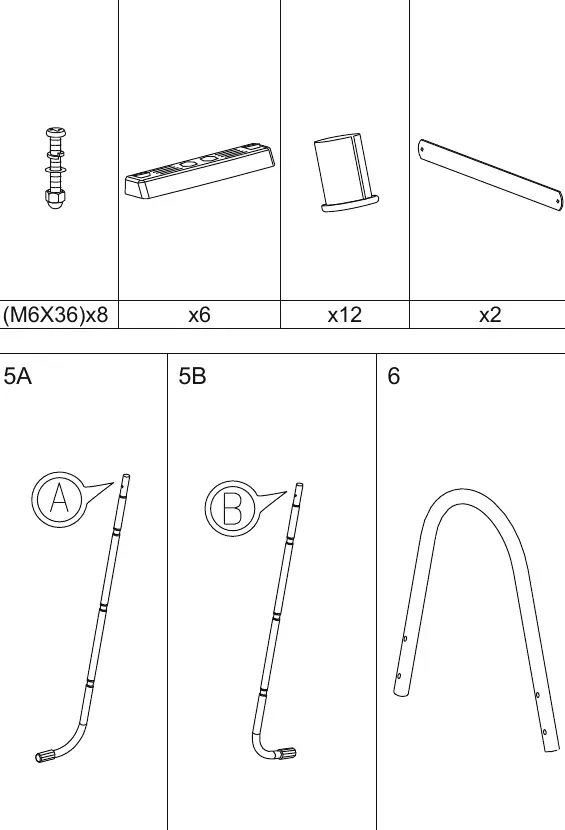

- Page 15: Parts list and hardware identification

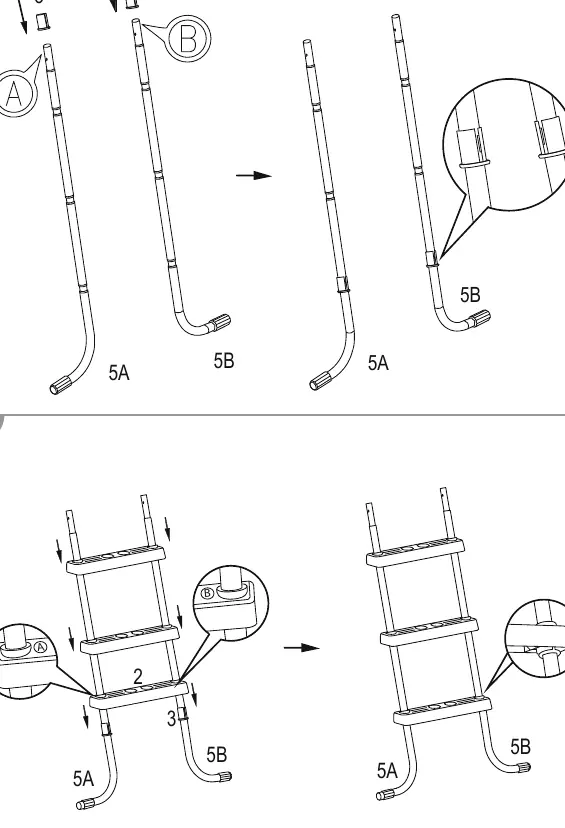

- Page 16: Assembly steps for ladder sides and steps

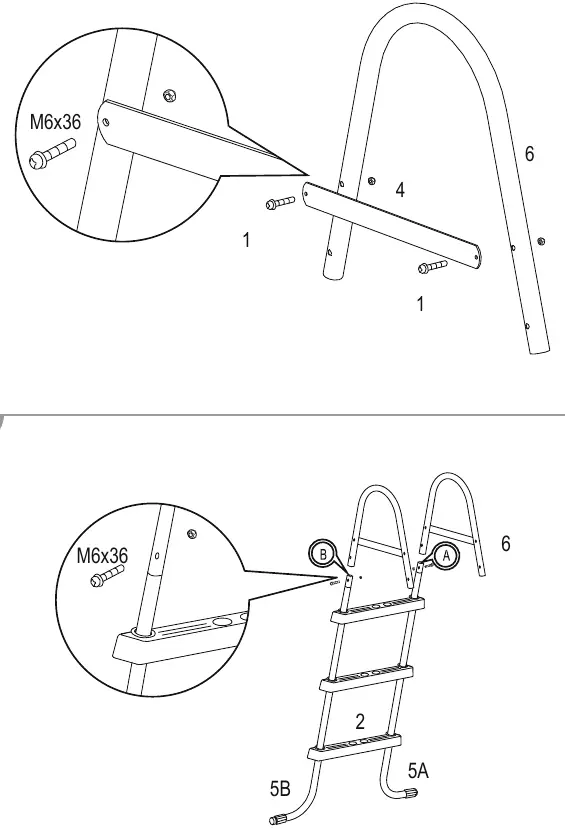

- Page 17: Assembly steps for top arch connection

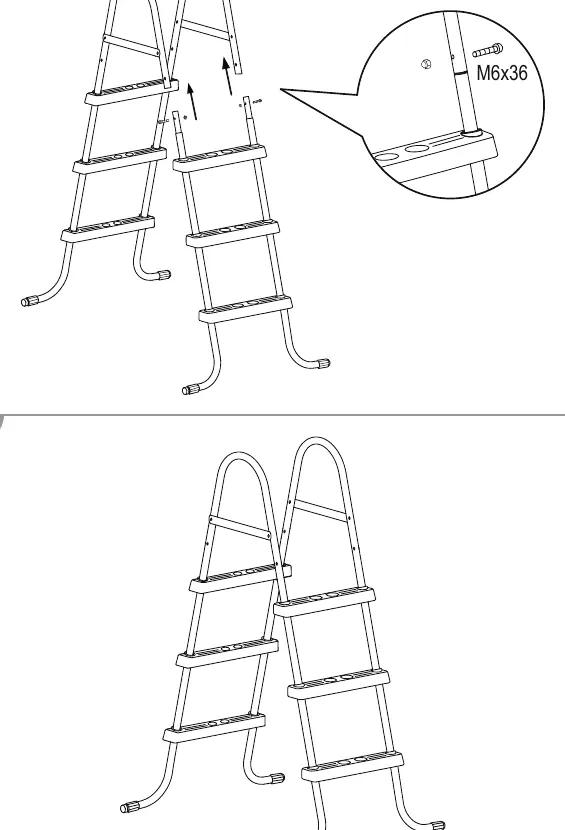

- Page 18: Final ladder assembly overview
Model compatibility
- Designed specifically for 42in (1.07m) wall height pools.
