Bestway 1.22m (48") Pool Ladder User Manual

Quick Guide from the Manual

This manual provides essential safety, assembly, and maintenance instructions for the Bestway 1.22m (48") Pool Ladder (Model #58331). Always ensure the ladder is placed on a solid base and that all screws and retention clips are secure before use.

Safety Warnings

• Solid Base: Always place the ladder on a solid, level surface.
• Usage: Only one person should use the ladder at a time.
• Orientation: Always face the ladder when entering or exiting the pool.
• Supervision: The ladder should only be used when proper adult supervision is present.
• Prohibitions: Do not dive from the ladder, pool side, or nearby objects.
• Security: Secure the ladder when the pool is not in use or when no adults are present.
• Maintenance: Check screws and retention clips before each use. Keep small parts away from children.

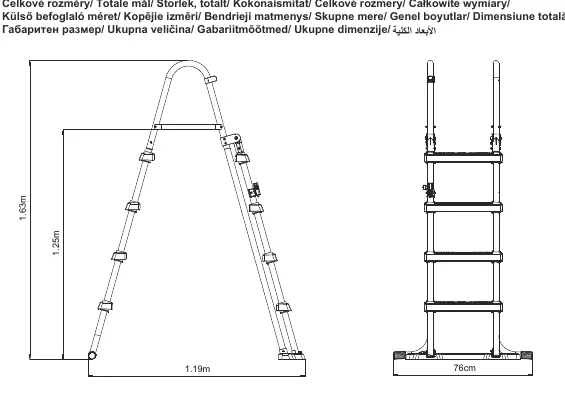

Specifications

• Maximum Load: 150kg (330lbs).
• Max Wall Height: 1.22m (48").
• Max Wall Width: 30cm (11.8").

Assembly

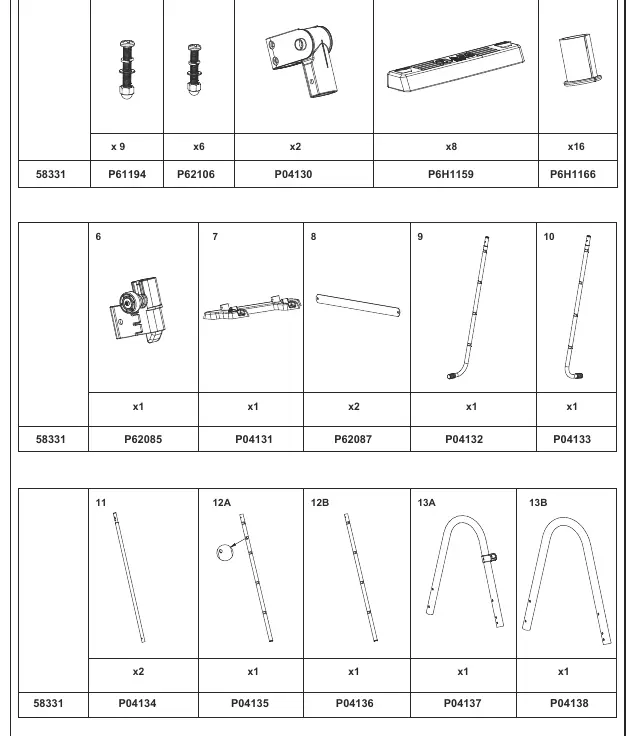

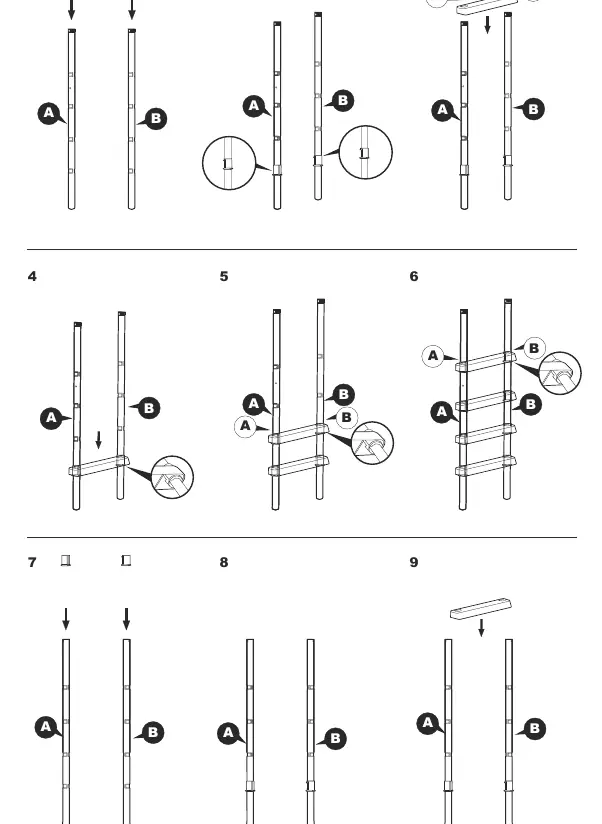

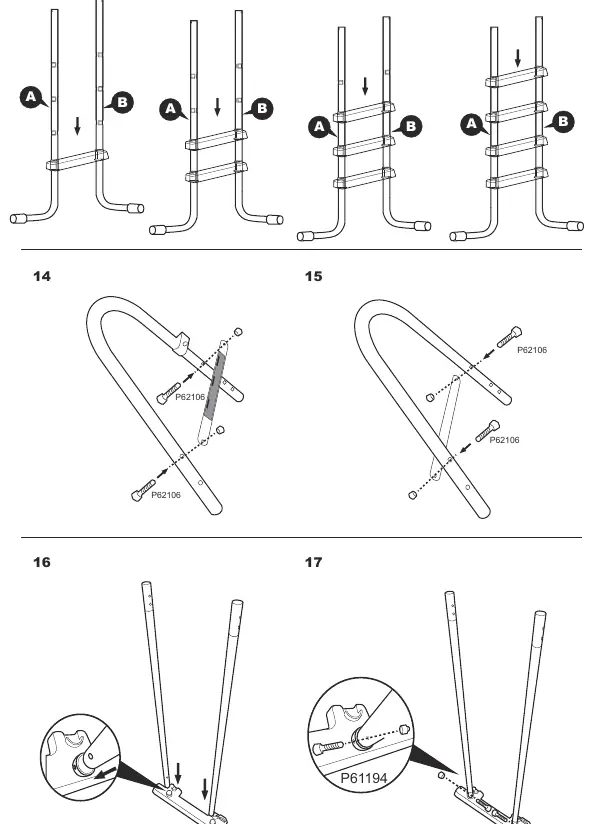

The ladder assembly requires a crosshead screwdriver or an adjustable wrench. Please refer to the assembly diagrams on pages 11-15 for the step-by-step process. Ensure all components are correctly aligned and tightened according to the illustrations.

Maintenance and Storage

• Pre-use Check: Always inspect the ladder for rust, sharp edges, or loose screws before each use. Replace any rusted screws or clips immediately.
• Cleaning: Ensure the ladder is clean and dry before storing.
• Winterization: It is strongly recommended to remove the ladder from the pool during the off-season (winter months). Disassemble all components, dry them thoroughly, and store in a dry location out of the reach of children.
