User Manual for Bosch GDS 18V-350 Cordless Impact Wrench
Quick guide for the Bosch GDS 18V-350 cordless impact wrench. Learn about operation, speed settings, ABR mode, battery care, and maintenance.
Quick answers from the manual
Quick answer
- The Bosch GDS 18V-350 is a cordless impact wrench designed for driving and loosening screws, bolts, and nuts. It features three speed settings and an Automatic Bolt Release (ABR) mode. p. 7, 9
Key actions
- Change rotational direction p. 9
- Select speed/mode p. 9
First start
- Insert a fully charged battery into the battery holder until it clicks. p. 8
Problems and fixes
Tool stops automatically
The ABR (Auto Bolt Release) function is active and has detected that the bolt or nut is loose.
p. 9Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max. tightening torque | 350 Nm | Maximum torque at setting 3 | p. 7 |
Where to find it in the PDF

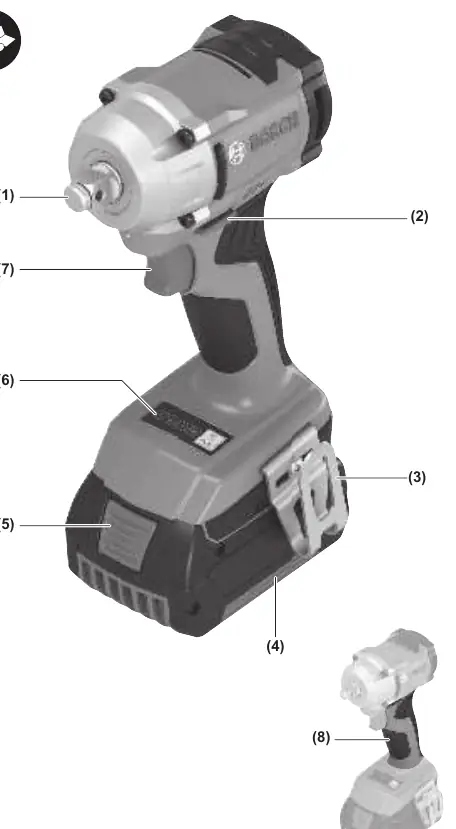

- Product Overview p. 3
- Technical Data p. 7
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Bosch GDS 18V-350 is a professional cordless impact wrench designed for driving and loosening screws, bolts, and nuts. This guide provides essential information for safe and efficient operation.
Product Description
The tool features a 1/2" tool holder, a rotational direction switch, a user interface for speed and mode selection, and an LED worklight. It is powered by Bosch 18V lithium-ion batteries.
Operation
Inserting and Removing the Battery
Push the charged battery into the battery holder until it clicks into place. To remove, press the battery release button and pull the battery out. Do not use force.
Setting Rotational Direction
Use the rotational direction switch (2) to change the direction. Right rotation: Press the switch to the left stop for driving screws and tightening nuts. Left rotation: Press the switch to the right stop for loosening screws and nuts. This cannot be changed while the on/off switch is pressed.
Speed Preselection
Press the mode button (12) to activate the user interface (6). You can preselect the speed in three stages. Press the mode button repeatedly until the desired setting is indicated on the speed indicator (10).
Automatic Bolt Release (ABR) Mode
The ABR function is designed for loosening bolts or nuts. The tool automatically shuts down as soon as the bolt or nut is released, preventing it from falling. This mode only works in left rotation and when the bolt/nut is still securely tightened.
Maintenance and Cleaning
- Clean the air vents on your power tool regularly to prevent dust accumulation.
- Remove the battery before performing any maintenance or tool changes.
- Keep the tool and ventilation slots clean for safe operation.
Technical Data
- Rated voltage: 18V
- Max. tightening torque: 350 Nm (Setting 3)
- Impact rate: 1800–3400 min-1
- No-load speed: 1200–2300 min-1
Manufacturer information
Bosch
Practical help
Common problems
Tool stops automatically during loosening
The ABR (Auto Bolt Release) mode is active and has detected that the bolt or nut is loose.
Battery not charging
Ensure the charger is compatible and the ambient temperature is within the permitted range (0 to +35°C).
Before use
- Ensure the battery is fully charged.
- Check that the correct application tool (socket) is securely attached to the tool holder.
- Set the rotational direction correctly for your task.
- Select the appropriate speed setting for the material.
Specs in practice
- No-load speed
- The speed of the tool without resistance (1200–2300 min-1).
- Max. tightening torque
- The maximum force applied by the tool (up to 350 Nm at setting 3).
Images and diagrams
- Figure A: Changing the application tool.
- Figure B: User interface showing speed settings and ABR indicator.
- Figure C: Setting rotational direction.
Model compatibility
- Compatible with Bosch 18V batteries (GBA 18V... and ProCORE18V...).
