Bright Starts Comfy Bouncer - Jungle Vines 12312-ES

Quick guide from the manual

The Bright Starts Comfy Bouncer - Jungle Vines (12312-ES) is designed for infants. Important usage limits: Stop using the bouncer when the baby starts trying to sit up or has reached 20 lb (9 kg), whichever comes first. This product is not a sleep product; if the baby falls asleep, move them to a firm, flat sleep surface like a crib or bassinet. Always use the bouncer on the floor; never on elevated surfaces.

Safety Warnings

• Fall Hazard: Never leave the child unattended. Always use restraints and adjust to fit snugly.
• Suffocation Hazard: Never use on soft surfaces like beds, sofas, or cushions. Never use as an infant carrier for travel.
• Never attach additional strings or straps to the product or toy bar.
• Adult assembly is required.

Assembly Instructions

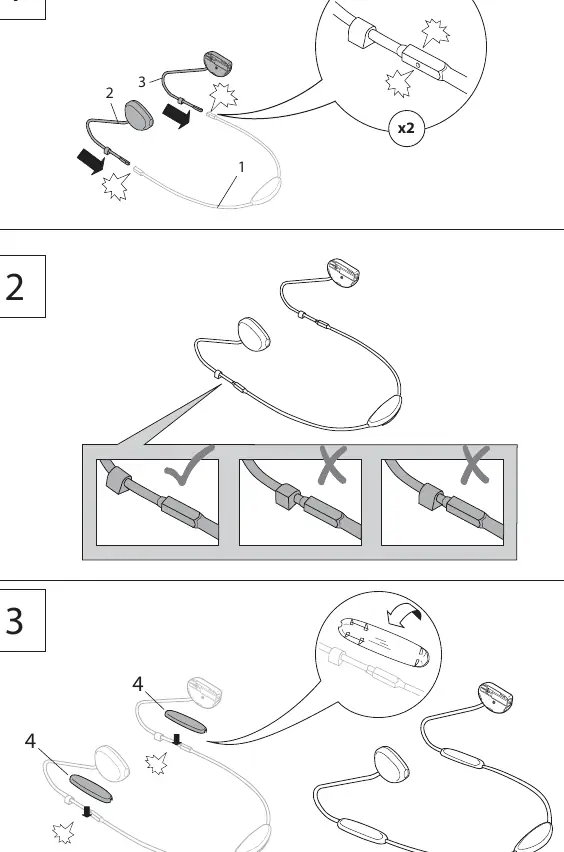

The bouncer requires assembly. Refer to the parts list on page 15 to identify all components. Follow the numbered steps 1 through 15 in the manual to assemble the frame, attach the seat pad, and install the toy bar. Ensure all connections are secure and buckles are fastened before placing the child in the bouncer.

Battery Installation

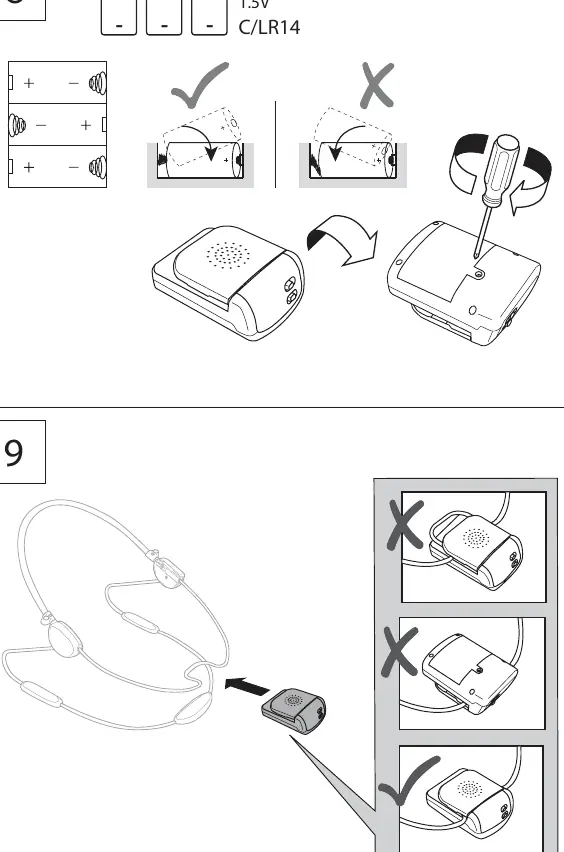

The music/vibration unit requires (3) size C/LR14 (1.5V) alkaline batteries (not included). To install:

1. Use a small Phillips screwdriver to open the battery compartment on the music/vibration unit.
2. Insert the batteries, ensuring the polarity matches the markings in the compartment.
3. Replace the cover and secure the screw.

Note: Weak batteries can cause erratic operation, distorted sound, or non-working motorized parts. Replace all batteries at once.

Using the Bouncer

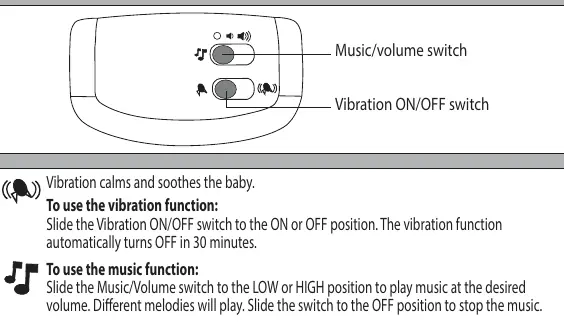

The music/vibration unit is located on the bouncer frame. It features two switches:

• Vibration: Slide the Vibration ON/OFF switch to the ON or OFF position. The vibration function automatically turns off after 30 minutes.
• Music/Volume: Slide the switch to LOW or HIGH to play music. Slide to OFF to stop the music.

Care and Cleaning

• Seat Pad: Remove from frame. Fasten buckles and hook-and-loop patches. Machine wash with cold water, gentle cycle. No bleach. Tumble dry, low heat.
• Headrest: Fasten hook-and-loop patches. Machine wash with cold water, gentle cycle. No bleach. Air dry flat.
• Toy Bar and Toys: Wipe clean with a damp cloth and mild soap. Air dry. Do not immerse in water.
• Frame: Wipe the metal frame with a soft, clean cloth and mild soap.

Storage and Disassembly

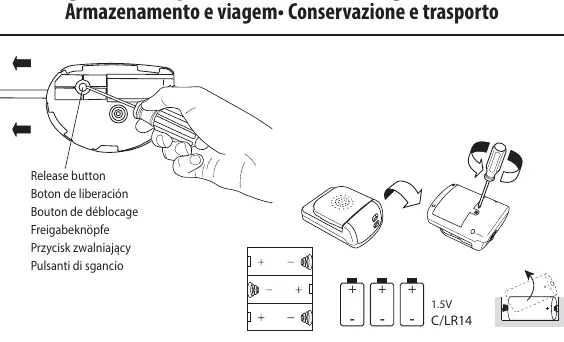

To disassemble for storage, use a small Phillips screwdriver to depress the release button on the inside of each connecting hub. Remove the footrest tube and base frame tubes from each hub.
