User Manual for Caliber RMD 052DAB-BT Car Radio
Quick guide and user manual for the Caliber RMD 052DAB-BT car radio. Includes installation instructions, wiring diagrams, Bluetooth pairing, and operation settings.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This guide provides essential information for the Caliber RMD 052DAB-BT car radio. For installation, ensure the vehicle has a 12V negative ground system. The DAB+ antenna must be installed on the windshield near the A-post. For Bluetooth pairing, press the MODE button, search for 'RMD052DAB-BT_CALIBER' on your phone, and use the code '0000'. If the device becomes unresponsive, use a non-metallic pointed object to press the reset button for 5 seconds.
Installation

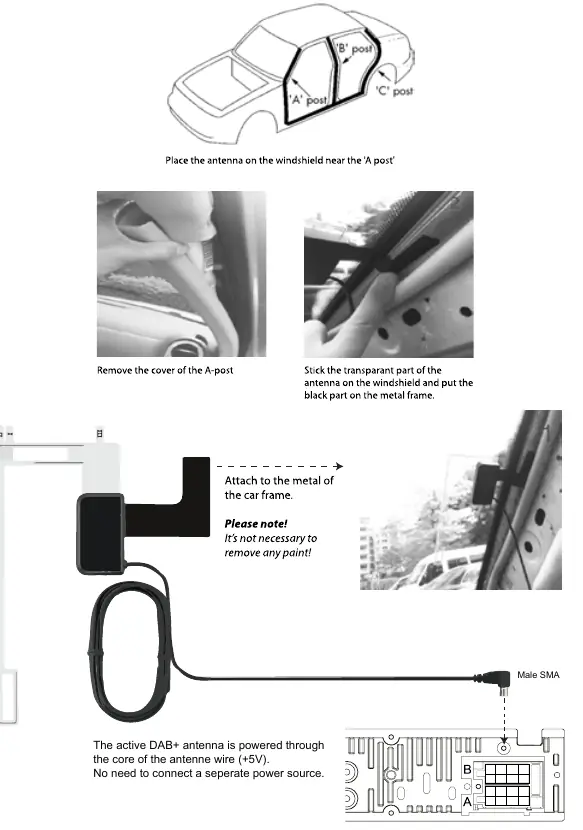

The DAB+ antenna is active and powered through the antenna wire (+5V), so no separate power source is required. Place the antenna on the windshield near the A-post. Remove the A-post cover, stick the transparent part of the antenna on the windshield, and attach the black part to the metal frame of the car.
Wiring

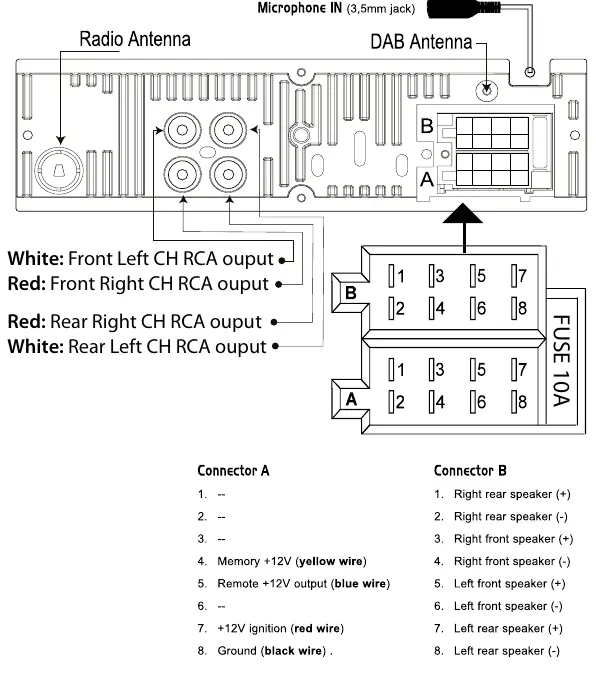

The unit uses standard ISO connectors. Ensure the wiring matches the diagram provided in the manual. Key connections include:
- Connector A: Memory +12V (yellow), Remote +12V output (blue), +12V ignition (red), Ground (black).
- Connector B: Speaker connections for front and rear left/right channels.
- RCA Outputs: Front Left/Right and Rear Left/Right RCA outputs are available.

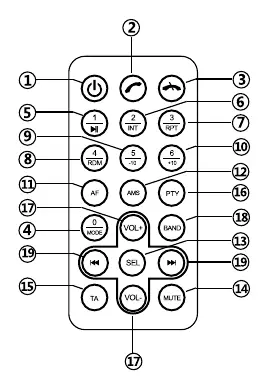

Operation
The device supports various modes including Radio (FM/DAB), USB, SD, and Bluetooth. Use the MODE button to switch between sources. The volume knob also functions as a selector. The Audio menu allows adjustment of Bass, Treble, Balance, Fader, Loudness, EQ, DX/LOCAL, and Stereo/Mono settings.
Specifications
- Power Supply: 12V DC, negative ground.
- Max Power Output: 75W x 4 channels.
- DAB Frequency Range: 174 ~ 240MHz.
- USB/SD Capacity: Max 32GB.
- Bluetooth Frequency: 2402-2480 MHz.
Safety precautions
Do not operate the unit while driving. Keep volume at a level where you can still hear outside noises. Do not disassemble or modify the unit. Use only in vehicles with 12V negative ground. Ensure the temperature inside the vehicle is between 0°C and +45°C before turning the unit on.
Manufacturer information
Caliber Europe
Practical help
Common problems
Device does not turn on
Check the power connections and the 10A fuse.
Bluetooth pairing fails
Ensure the code '0000' is used. If 'NO CON' appears, the connection failed; try again.
No sound
Check volume level, mute status, and ensure speaker wires are correctly connected.
Before use
- Verify vehicle has 12V negative ground system.
- Check that the 10A fuse is intact.
- Ensure DAB antenna is correctly placed on the windshield.
- Confirm all wiring matches the provided diagram.
- Ensure USB/SD card is formatted correctly and does not exceed 32GB.
Specs in practice
- Max Power Output
- 75W x 4 channels for audio amplification.
- DAB Frequency
- 174-240MHz range for digital radio reception.
- USB Charge Output
- 5V, max 1.1A for charging devices.
Images and diagrams
- Wiring Diagram: Shows ISO connector pinouts for power and speakers.
- DAB Antenna: Illustrates correct placement on the windshield and connection to the unit.
Model compatibility
- Supports USB and SD cards up to 32GB.
- Requires 12V DC negative ground electrical system.
- DAB+ antenna requires +5V phantom power provided by the unit.
