User Manual for Candy 1042DE/2-S Washing Machine
Quick guide for the Candy 1042DE/2-S washing machine. Includes installation steps, program descriptions, maintenance, troubleshooting, and safety instructions.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This washing machine automatically adjusts water levels based on the type and quantity of laundry, optimizing energy and water consumption. Ensure you read the full manual for safe operation.
Safety instructions
- This appliance is intended for domestic use only.
- Children aged 8+ and persons with reduced physical/sensory/mental capabilities may use the machine under supervision.
- Keep children under 3 years away unless supervised.
- If the power cord is damaged, it must be replaced by the manufacturer or service agent.
- Water pressure must be between 0.05 MPa and 0.8 MPa.
- Ensure the plug is accessible after installation.
Installation

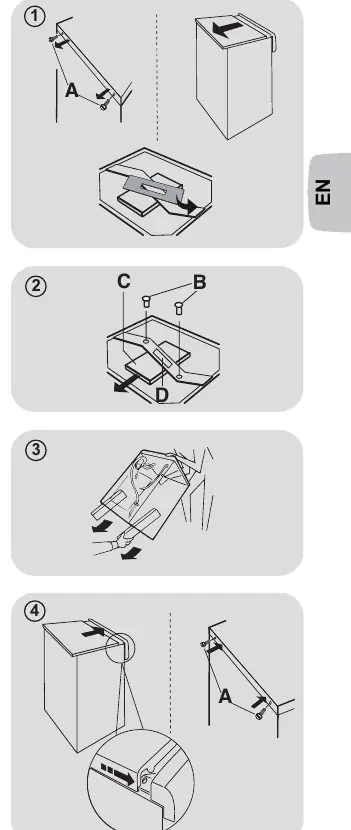

- Remove transit bolts: Unscrew the 2 top screws (A), remove the cover, unscrew the 2 tie braces (B), and remove the polystyrene spacers (C) under the crosspiece.
- Base cover: Apply the corrugated plastic sheet to the base of the appliance.
- Leveling: Adjust the feet to ensure the machine is stable.
- Water connection: Connect the water hose to the tap using only the supplied hose.
Detergent drawer
The drawer is divided into 2 compartments:
- Compartment 1: For main wash detergent.
- Compartment 2: For special additives (softeners, starch, etc.). Only use liquid products here.
Practical hints
- Sort laundry by fabric type, color, and soil level.
- Load the machine to the maximum capacity for the selected program to save energy and water.
- Leave the door slightly open between washes to prevent odors.
- Use the correct detergent dosage according to the manufacturer's instructions.
Cleaning and maintenance
- Exterior: Clean with a damp cloth; avoid abrasives or alcohol.
- Drawer: Clean regularly under running water.
- Pump filter: Check and clean 5-6 times a year. Place an absorbent towel underneath before unscrewing.
Controls and programs
The control panel features a program selector, Start/Pause button, Delay Start, Spin Speed, Aquaplus, and Cold Wash options. The display shows cycle duration and status.
Troubleshooting
If the machine malfunctions, check the following:
- E2: Machine not loading water. Check tap, hose, and filter.
- E3: Machine not draining. Check filter and drain hose.
- E4: Excessive foam/water. Check detergent dosage.
- E7: Door problem. Ensure it is closed correctly.
Manufacturer information
Candy
Practical help
Common problems
Machine does not start
Check if it is plugged in, the power is on, the door is closed, and the start button has been pressed.
Water on the floor
Check the seal between the tap and the supply hose; ensure the filter is closed correctly.
Machine does not spin
Check if the load is balanced, the 'no spin' option is off, or if excessive detergent has caused foam.
Error E2
Water not loading. Check if the tap is open, the hose is not kinked, and the filter is clean.
Error E3
Water not draining. Check if the filter is clogged or the drain hose is kinked.
Before use
- Remove all transit bolts and polystyrene spacers from the back.
- Ensure the machine is level using the adjustable feet.
- Connect the water supply hose to the tap.
- Ensure the drain hose is positioned correctly (50-85 cm height).
- Plug the machine into a grounded electrical outlet.
Specs in practice
- Water pressure
- Must be between 0.05 MPa and 0.8 MPa for proper operation.
Images and diagrams
- Fig 1-4: Removing transit bolts and preparing the machine.
- Fig 5: Installing the base cover.
- Fig 6: Connecting the water supply hose.
- Fig 7: Aquastop device (if present).
- Fig 8: Correct positioning of the drain hose.
Model compatibility
- Use only the supplied water hose; do not reuse old hoses.
- Use only detergents suitable for washing machines.
