User Manual for Carbest CozyWater 12V Electric Water Heater
Quick guide for the Carbest CozyWater 12V electric water heater. Includes installation, operation, troubleshooting, and safety instructions for models 670600, 670601, and 670604.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual covers the installation and operation of the Carbest CozyWater 12V electric water heater. Always ensure the device is filled with water before switching it on to prevent dry running damage.
Description
The water heater heats fresh water to a temperature between 25°C and 75°C. It features an insulated stainless steel tank for efficient heating.
Installation
Mounting: The boiler can be installed horizontally or vertically. If vertical, connections must point downwards. The mounting surface must support at least 60 kg.
Water Installation: Connect the safety valve to the cold water inlet. Lead the drain hose outside to prevent water damage.
Electrical Connection: Ensure the 12V DC supply is fused (30A) and uses a relay. 230V AC connection (10C model only) requires a protective contact socket.
Operation
CozyWater 8 and 10: Use the rotary thermostat control to set the temperature.

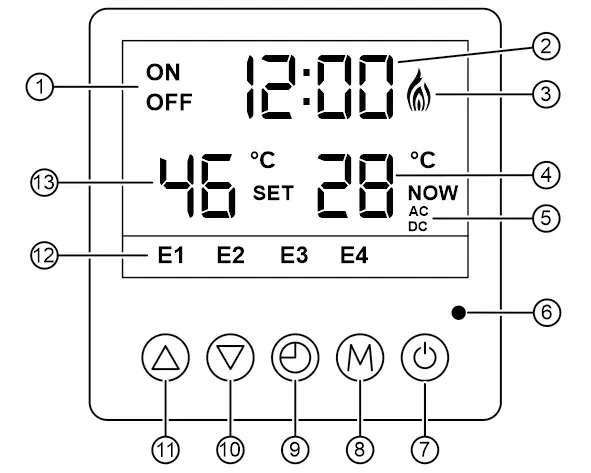

CozyWater 10C: Use the digital control panel to set the temperature, timer, and monitor status.
Cleaning and Maintenance
Regularly clean and descale using standard camping products. Heat to at least 70°C periodically to prevent microorganism growth.
Troubleshooting
If the indicator light does not turn on, check the power supply. For 10C models, error codes E1-E4 indicate specific faults (e.g., E2 for dry running, E4 for overheating).
Manufacturer information
Carbest
Practical help
Common problems
Indicator light does not turn on
Check power supply and fuse. Ensure the temperature limiter has not tripped.
Water does not reach set temperature
Check heating element and power supply. May require professional repair.
Water leaking
Tighten pipe connections or tighten/replace the heating element seal.
Error code E2 (10C model)
Dry running detected. Open main water supply; error resets automatically.
Error code E4 (10C model)
Overheating (95°C). Disconnect power, let cool, and ensure boiler is filled with water.
Before use
- Ensure 12V power is connected.
- Fill the boiler with water before switching on.
- Check that the safety valve is closed (lever horizontal).
- Open a hot water tap to bleed air from the system.
- Check all connections for leaks.
Specs in practice
- Heating capacity
- 200W for 12V models; 800W for 230V (10C model).
- Water pressure
- 2.5 bar operating pressure; 3.0 bar maximum.
Images and diagrams
- 12V DC wiring diagram showing relay and fuse setup.
- Water installation diagram showing safety valve and drain hose placement.
- Mounting orientation diagram for horizontal and vertical installation.
Model compatibility
- 10C model supports both 12V DC and 230V AC.
- 8 and 10 models are 12V DC only.
