User Manual for CLAS OM 0701N Engine Support 500KG

Important information from the manual

The CLAS OM 0701N is an engine support stand with a 500kg capacity and an integrated fluid recovery tank. It is designed for professional garage use. Always operate on a hard, level surface and never move the stand while it is loaded.

Safety precautions

• Maximum Capacity: Do not exceed 500 kg.
• Surface: Use only on a hard, level surface.
• Mobility: Never attempt to move the stand when loaded, especially over cracks or obstacles.
• Operation: Never work directly under a supported engine.
• Stability: Ensure both the load and the stand are stable before beginning work.
• Maintenance: Perform periodic inspections to ensure safe operation.

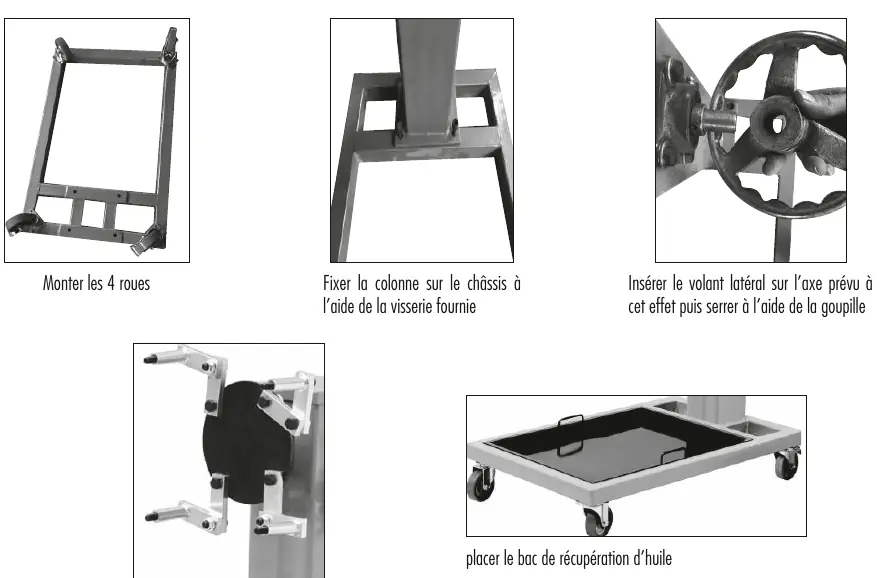

Assembly instructions

1. Wheels: Assemble the 4 wheels to the base.
2. Column: Fix the column onto the chassis using the provided hardware.
3. Handwheel: Insert the handwheel into the round steel axis and secure it with the pin.
4. Jaws: Install the 4 jaws onto the black disk using the hexagon screws.
5. Oil Pan: Place the oil collecting pan into the base.

Support and contact

If you need components or parts, please contact your reseller. In case of problems, contact your authorized technician.

CLAS Equipements, 83 chemin de la CROUZA, 73800 CHIGNIN, FRANCE. Tel: +33 (0)4 79 72 62 22, Fax: +33 (0)4 79 72 52 86.
