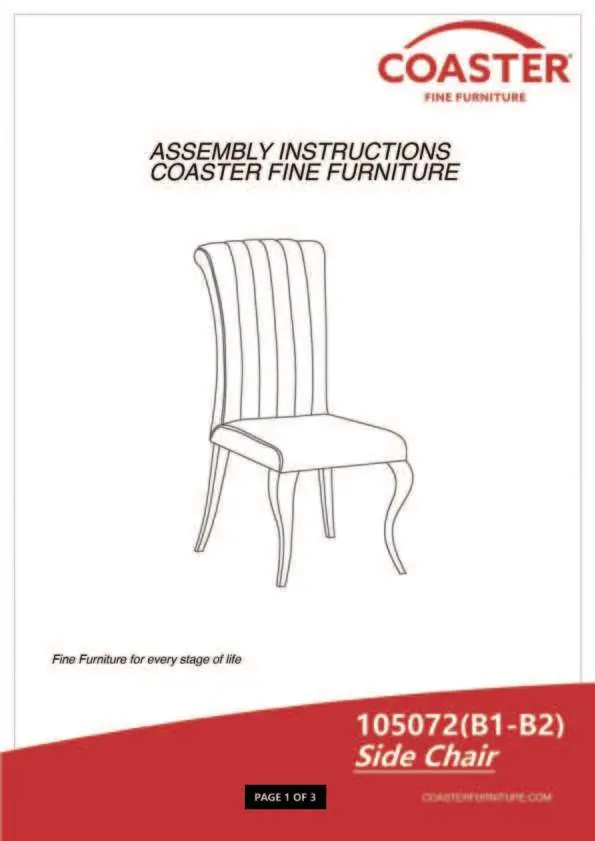

Assembly Instructions for Coaster 105071S5 Dining Set
Quick assembly guide for the Coaster 105071S5 dining set. Includes parts lists, hardware identification, and step-by-step assembly instructions for the dining table and side chairs.
Table of contents
Manual images
Click an image to enlargeQuick Guide
This document provides assembly instructions for the Coaster 105071S5 Dining Set, comprising the dining table (105071) and side chairs (105072). Before starting, ensure all hardware is sorted by size and all parts are present. Assembly should be performed on a clean, protected surface to avoid damage.
Dining Table Assembly (105071)
Parts Identification:
- A: Glass (1pc)
- B: Top Frame (1pc)
- C: Leg (4pcs)
Hardware:
- 1: Bolts M10*12 (12pcs)
- 2: Flat Washer Ø10*20 (12pcs)
- 3: Allen Wrench 8mm (1pc)
- 4: Glass Rest (8pcs)
Assembly Steps:

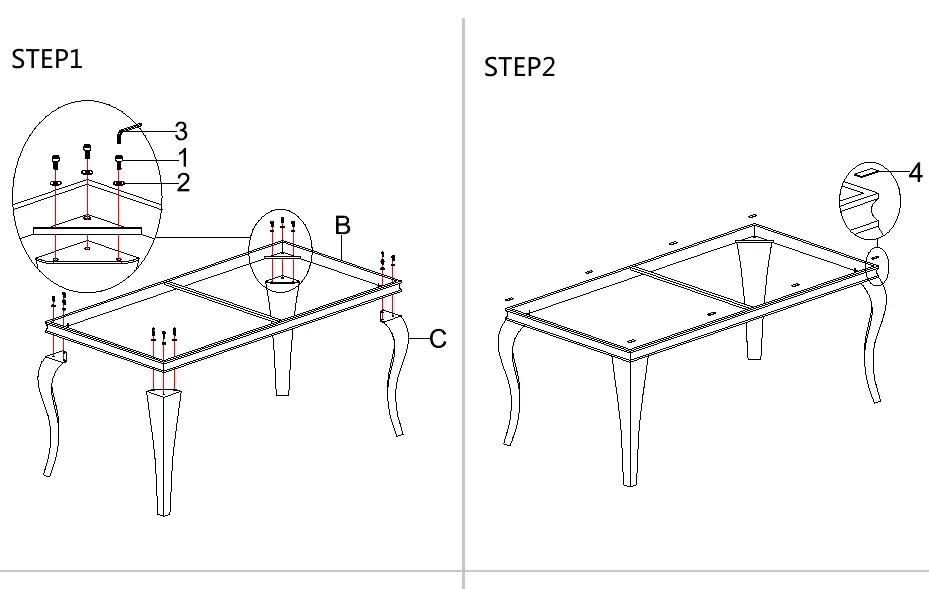

- Step 1: Attach the four legs (C) to the top frame (B) using the bolts (1) and flat washers (2). Tighten using the provided Allen wrench (3).
- Step 2: Place the glass rests (4) onto the top frame (B).
- Step 3: Carefully place the glass (A) onto the glass rests on the top frame.
Side Chair Assembly (105072)

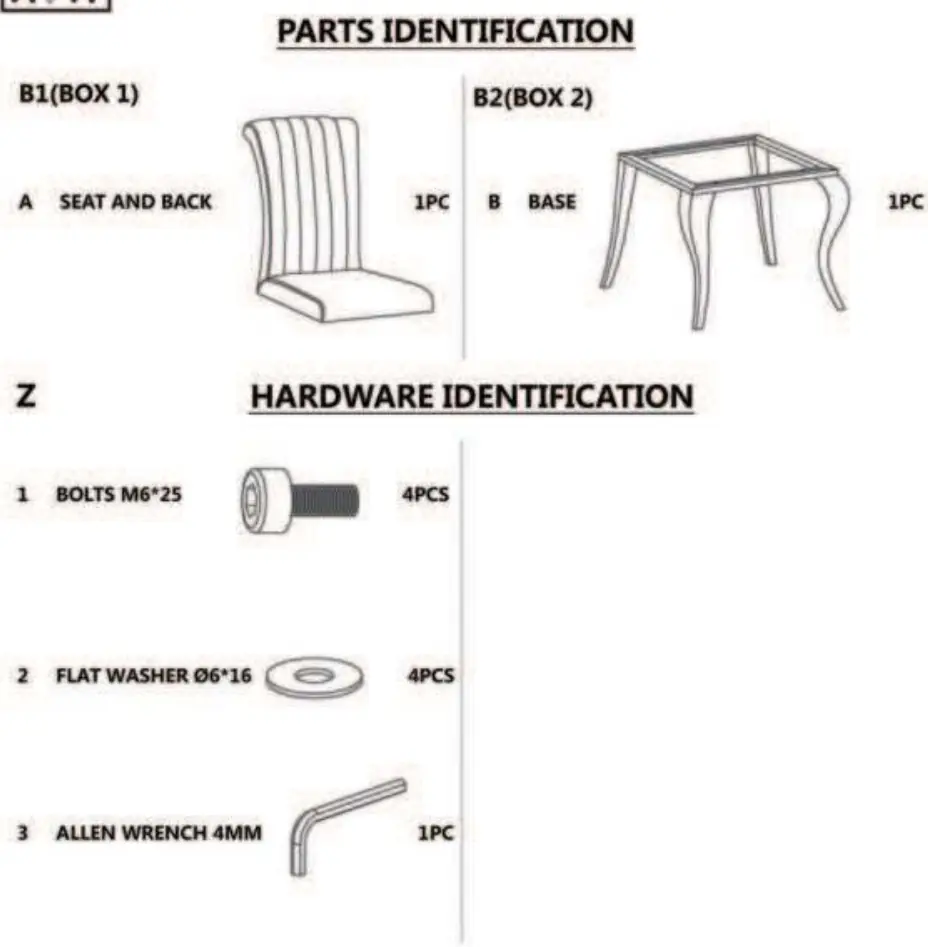

Parts Identification:
- A: Seat and Back (1pc)
- B: Base (1pc)
Hardware:
- 1: Bolts M6*25 (4pcs)
- 2: Flat Washer Ø6*16 (4pcs)
- 3: Allen Wrench 4mm (1pc)
Assembly Steps:
- Step 1: Align the base (B) with the seat and back (A). Secure using the bolts (1) and flat washers (2). Tighten using the provided Allen wrench (3).
Safety and Maintenance
Do not attempt to repair or modify parts that are broken or defective. Contact the store immediately if parts are missing or damaged. This product is intended for home use only and is not designed for commercial establishments.
Manufacturer information
Coaster Fine Furniture
Practical help
Common problems
Missing or damaged parts
Do not attempt to repair or modify. Contact the store immediately.
Difficulty assembling
Ensure all hardware is sorted by size before starting and follow the numbered sequence exactly.

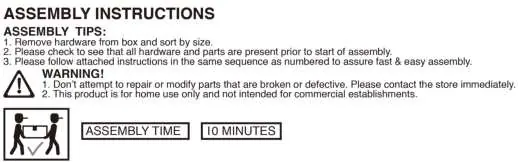

Before use
- Remove all hardware from the box.
- Sort hardware by size.
- Verify all parts listed in the identification section are present.
- Ensure you have the provided Allen wrench.
- Prepare a clean, flat surface for assembly.
