Assembly Instructions for Coaster 115071S5T Dining Set
Quick assembly guide for the Coaster 115071S5T dining set, including instructions for the 105076 side chair and 115071 dining table. Includes parts lists, hardware requirements, and step-by-step assembly procedures.
Table of contents
Manual images
Click an image to enlargeQuick Guide
This document contains assembly instructions for the Coaster 115071S5T dining set, which includes the 105076 Side Chair and 115071 Dining Table.
- Assembly Time: Approximately 5 minutes per chair and 10 minutes for the table.
- Safety: This product is for home use only and is not intended for commercial establishments.
- Preparation: Remove all hardware from the box and sort by size before beginning assembly. Verify all parts are present.

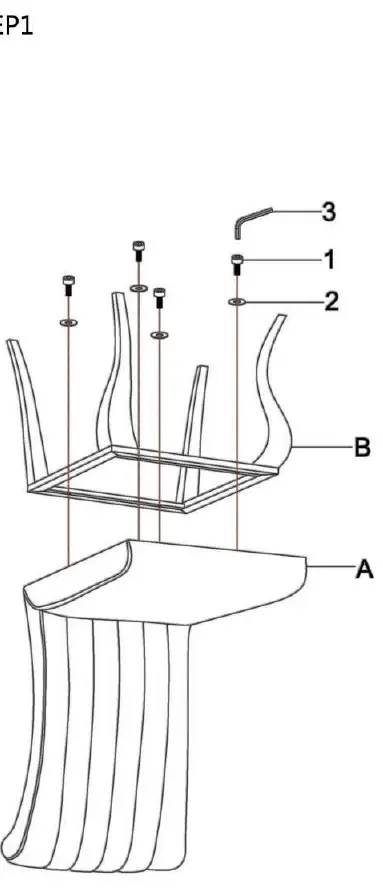

Assembly: Side Chair (105076)
Parts: Seat and Back (A), Base (B).
Hardware: Bolts M6*25 (4pcs), Flat Washer Ø6*16 (4pcs), Allen Wrench 4mm (1pc).
- Align the Base (B) with the Seat and Back (A).
- Secure using the provided Bolts (1) and Flat Washers (2) with the Allen Wrench (3).

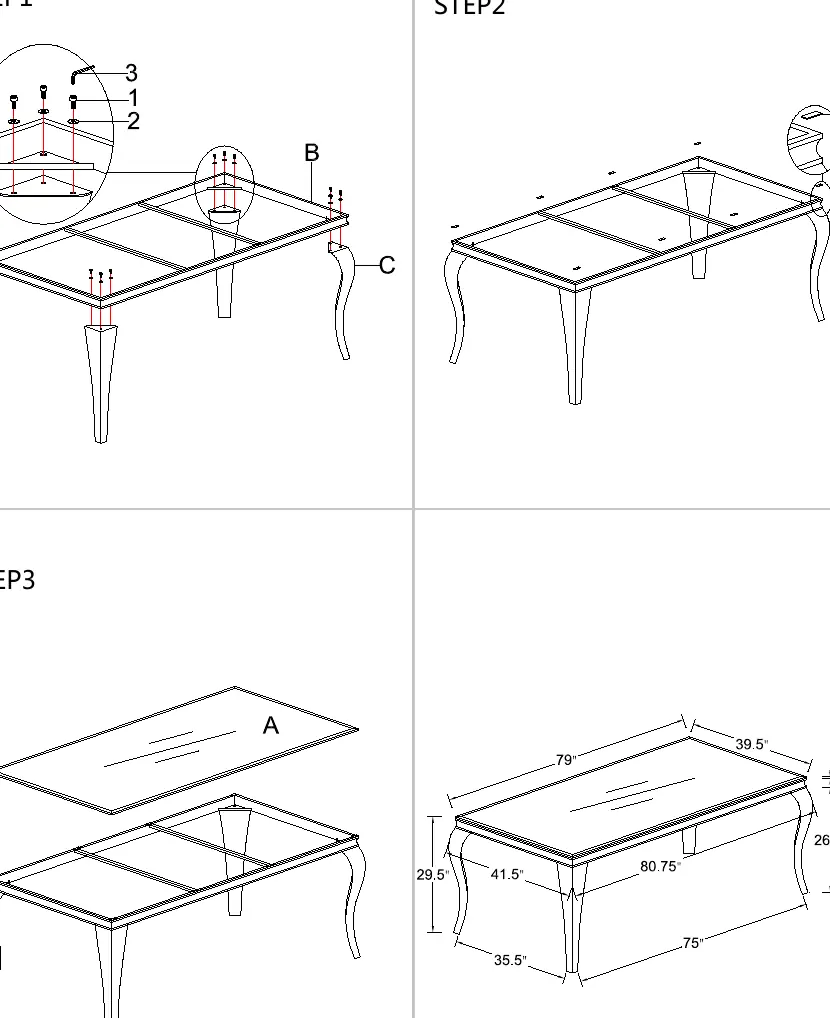

Assembly: Dining Table (115071)
Parts: Glass (A), Top Frame (B), Legs (C).
Hardware: Bolts M10*12 (12pcs), Flat Washer Ø10*20 (12pcs), Allen Wrench 8mm (1pc), Glass Rests (8pcs).
- Attach the Legs (C) to the Top Frame (B) using Bolts (1) and Flat Washers (2).
- Place the Glass Rests (4) onto the frame.
- Carefully place the Glass (A) on top of the frame.
Care and Maintenance
Do not attempt to repair or modify parts that are broken or defective. Contact the store immediately if parts are damaged.
Manufacturer information
Coaster Fine Furniture
Practical help
Common problems
Parts missing or damaged
Do not attempt to repair or modify. Contact the store immediately.
Commercial use
This product is for home use only and not intended for commercial establishments.
Before use
- Sort all hardware by size before starting.
- Verify all parts are present against the parts list.
- Clear a sufficient area for assembly.
- Use the provided Allen wrench for tightening bolts.
Specs in practice
- M10*12 Bolts
- Hardware used for table assembly.
- Dimension Tolerance ±5%
- Allowable variation in product dimensions.
Images and diagrams
- The assembly diagrams show the correct alignment of legs and frames.
- Ensure washers are placed between the bolt head and the furniture frame.
Model compatibility
- Hardware pack for the table is located in box 115071(B3).
