Coaster Anita 60-Inch 1-Drawer TV Console Assembly Instructions
Assembly guide for the Coaster Anita 60-inch TV console. Includes a complete parts list, hardware identification, and step-by-step assembly instructions for the 1-drawer unit.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides assembly instructions for the Coaster Anita 60-inch 1-drawer TV console. The estimated assembly time is 30 minutes. Before beginning, ensure you have a clear workspace and verify that all parts and hardware are present.
Assembly tips
- Remove all hardware from the box and sort by size to avoid confusion during assembly.
- Check that all hardware and parts are present prior to starting.
- Follow the assembly steps in the exact sequence provided to ensure a fast and easy build.
- Warning: Do not attempt to repair or modify parts that are broken or defective; contact the store immediately. This product is for home use only.
Parts identification
The unit consists of several panels labeled A through P, including the top panel, shelves, divider panels, legs, and drawer components. Ensure you identify each piece before starting assembly.
Hardware identification
The hardware kit includes various components such as large and small cam bolts, cam locks, dowels, screws, washers, iron legs, handles, nails, and glue. Keep these organized by type and size.
Assembly steps
The assembly process is divided into 12 steps:
- Drawer Assembly: Assemble the drawer sides (L, M), back panel (N), and bottom panel (P) using screws (10).
- Drawer Completion: Secure the drawer bottom support (O) and drawer front panel (K) to the drawer assembly.
- Frame Assembly: Begin building the main frame by attaching the upper divider panel (F) and lower divider panels (G, H) to the shelf (B) and bottom panel (C).
- Leg Attachment: Attach the legs (I, J) to the base structure using cam bolts and cam locks.
- Top Panel Installation: Secure the top panel (A) to the assembled frame.
- Final Touches: Attach the back panels, iron leg (12), and insert the completed drawer into the console.
Manufacturer information
Coaster Fine Furniture
Practical help
Common problems
Missing parts or hardware
Check all hardware and parts against the identification list before starting assembly. If parts are missing or defective, do not modify them; contact the store immediately.
Difficulty with cam locks
Ensure the cam bolt is screwed in straight and the cam lock is inserted fully into the hole. Turn the cam lock clockwise to secure the connection.
Before use
- Clear a large, flat workspace for assembly.
- Sort all hardware (cam bolts, screws, dowels) by type and size.
- Verify all panels (A-P) are present according to the parts list.
- Have a screwdriver and hammer ready for assembly.
- Read through all 12 steps before beginning.
Specs in practice
- Assembly Time
- Estimated 30 minutes for completion.
- Product Type
- 1-Drawer TV Console.
Images and diagrams

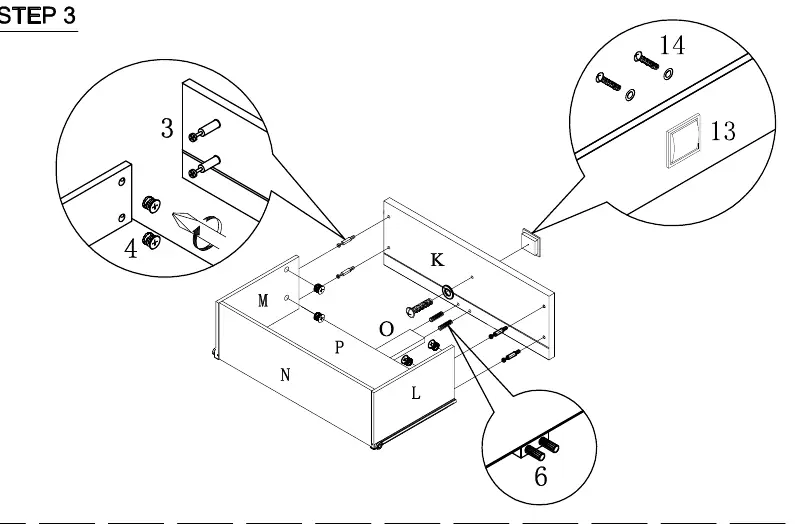

- Steps 1-3 detail the construction of the drawer unit.

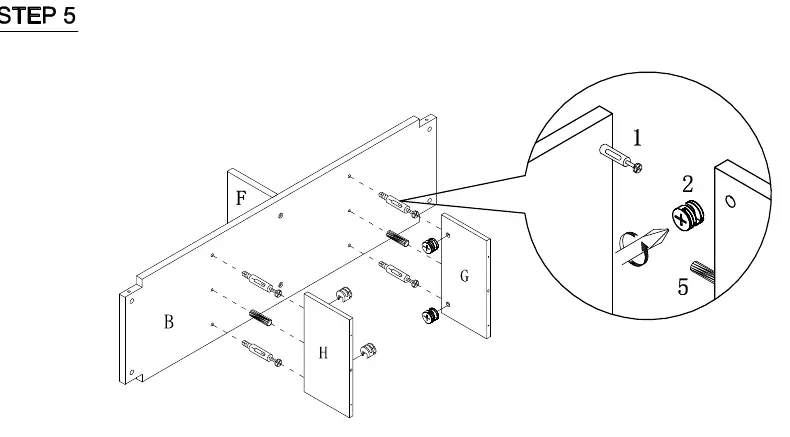

- Steps 5-7 illustrate the assembly of the main frame and internal dividers.

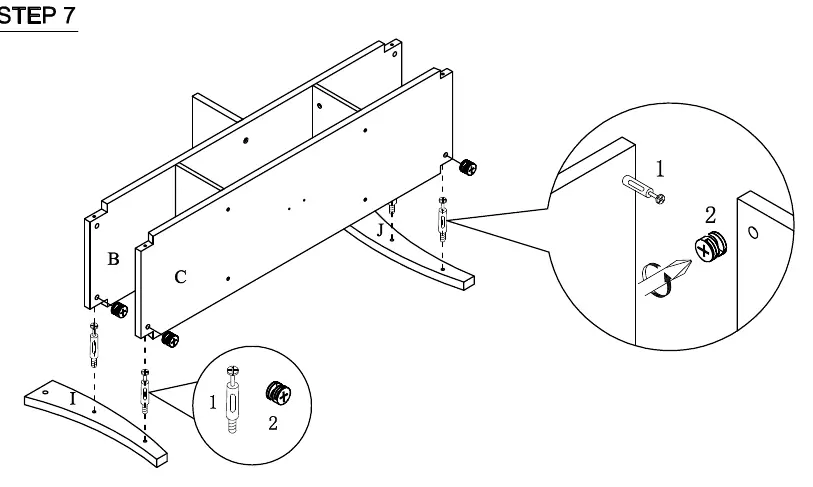

- Steps 7-8 show the correct orientation for attaching the legs.

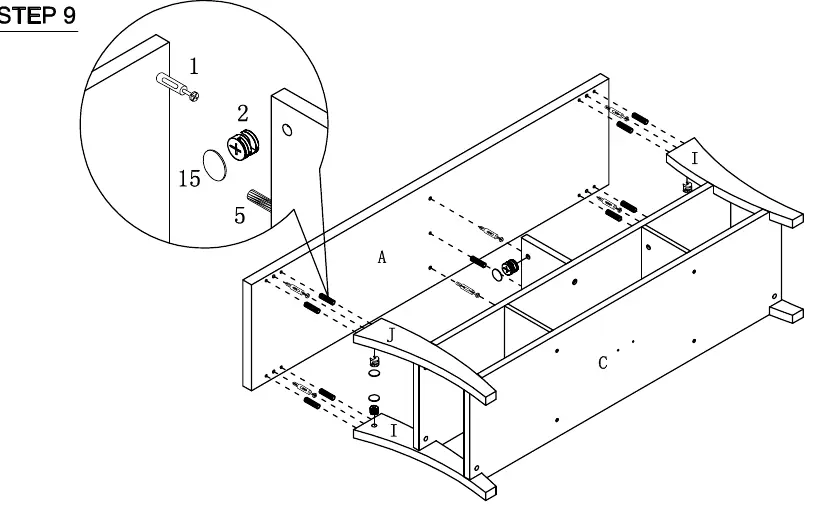

- Step 9 demonstrates the attachment of the top panel to the frame.

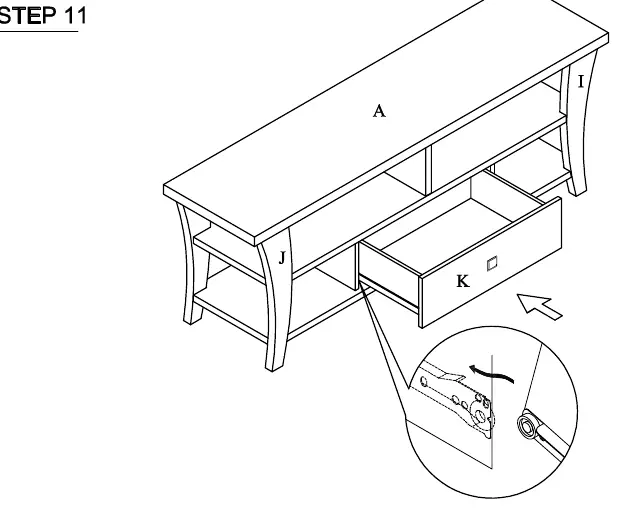

- Step 11 shows the final insertion of the drawer into the console.
