CORE 6 Person Performance Instant Tent 40233

Quick guide from the manual

This guide provides essential instructions for the CORE 6 Person Performance Instant Tent (Model 40233). It covers the setup and takedown process, safety precautions, and maintenance tips to ensure the longevity of your tent.

Setup Instructions

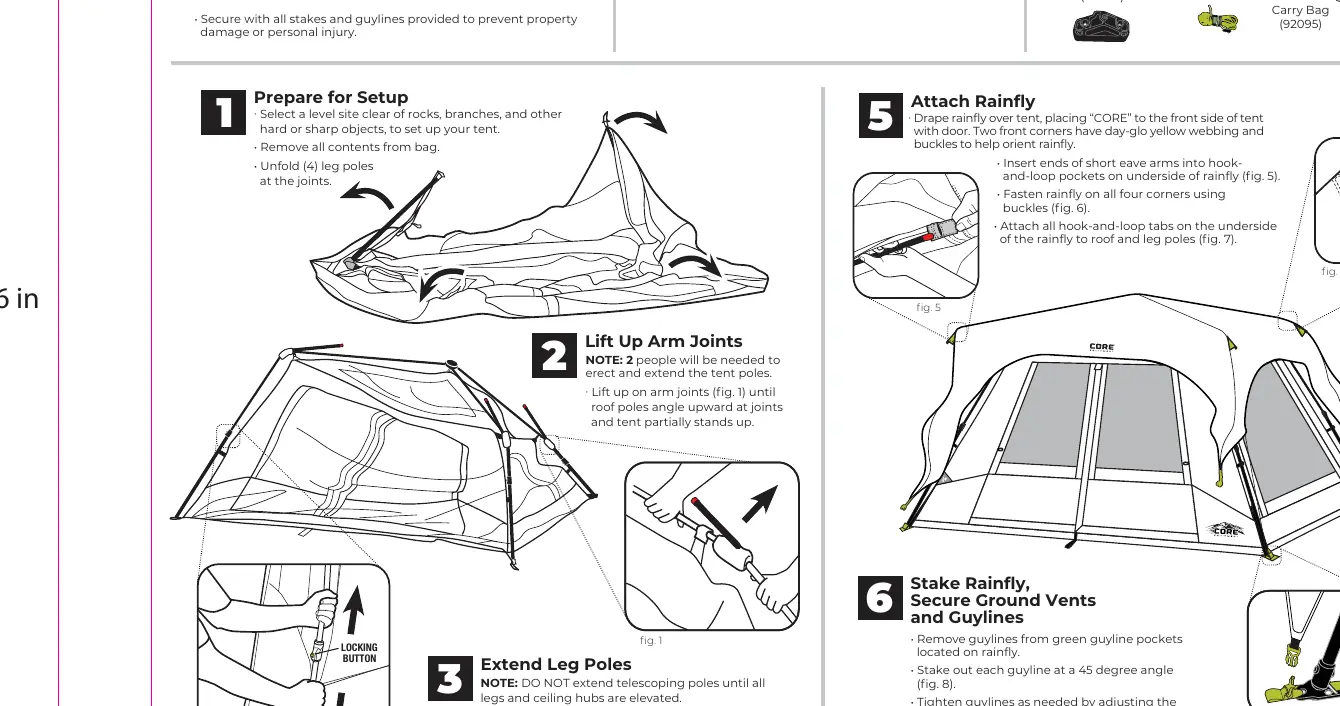

1. Prepare for Setup: Select a level site clear of rocks, branches, and sharp objects. Remove all contents from the bag and unfold the four leg poles at the joints.
2. Lift Up Arm Joints: Two people are recommended for this step. Lift up on the arm joints until the roof poles angle upward and the tent partially stands up.
3. Extend Leg Poles: Extend each of the four leg poles until the locking buttons click into place. Rotate the short eave arms to the open position.

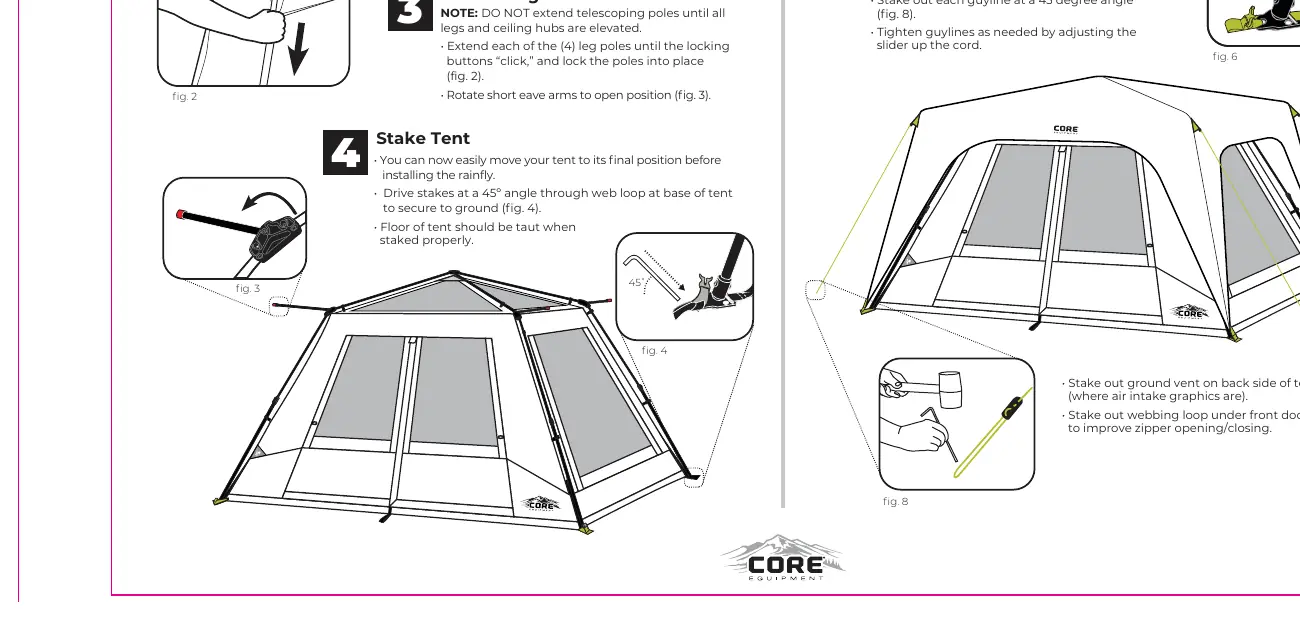

4. Stake Tent: Drive stakes at a 45-degree angle through the web loops at the base of the tent to secure it to the ground.
5. Attach Rainfly: Drape the rainfly over the tent, ensuring the "CORE" logo faces the front door. Insert the ends of the short eave arms into the hook-and-loop pockets on the underside of the rainfly. Fasten the rainfly on all four corners using the buckles and attach all hook-and-loop tabs to the roof and leg poles.
6. Stake Rainfly and Secure Vents: Remove guylines from the pockets on the rainfly and stake them out at a 45-degree angle. Stake out the ground vent on the back side and the webbing loop under the front door.

Takedown Instructions

• Leave the door unzipped to allow air to escape.
• Pull stakes from guylines and ground vents.
• Release hook-and-loop fasteners on the underside of the rainfly.
• Remove short eave arms from the pockets.
• Unbuckle the rainfly, fold into thirds lengthwise, and roll it up with the tent.
• Unlock the four telescoping leg poles and push down on the arm joints to collapse.
• Fold all collapsed poles to the center, gather the tent into a pod to compress air out, and store in the carry bag.

Important Safety Warnings

• Fire Safety: The tent fabric is flame-resistant (CPAI-84) but not fireproof. Keep all flame and heat sources away. Do not use fuel-burning devices, cook, or smoke inside or near the tent.
• Power Lines: Do not set up the tent under trees to avoid potential lightning strikes or falling limbs.
• Condensation: Condensation is not leakage. Minimize it by removing wet clothing and ensuring good ventilation.

Maintenance and Care

• Cleaning: Clean with a soft sponge, mild soap, and tepid water. Let dry in sunlight.
• Waterproofing: The tent is water-repellent, not waterproof. Do not use chemical sprays as they may compromise the factory-applied coatings. Use seam sealing compounds if additional moisture protection is needed.
• Storage: Never store the tent without drying it thoroughly and brushing off caked dirt.

Frequently Asked Questions

• Replacement Parts: Available by calling 1-888-775-5628.
• Wall Plug Symbol: This is a port for an electrical cord to access the tent.
• Seasons: This is a 2-3 season tent, not recommended for severe weather.
• Dimensions: 10ft x 9ft x 72in (3.05m x 2.74m x 1.83m).

Warranty Information

CORE Equipment provides a 1-Year Limited Warranty against defects in materials or workmanship. This warranty does not cover normal wear and tear, abuse, misuse, or damage from inclement weather. Contact customer service at 1-888-775-5628 for warranty claims.
