Crystorama Majestic Five Light Ceiling Mount 1485-HB-CL-MWP

Elegant five-light ceiling mount fixture from the Majestic collection by Crystorama, featuring intricate crystal detailing and a classic design suitable for dry indoor locations.

Table of contents

Product Overview

The Crystorama Majestic 1485-HB-CL-MWP is a sophisticated five-light ceiling mount fixture designed to add a touch of luxury to any interior space. This fixture is rated for dry locations and requires professional installation to ensure safety and compliance with electrical codes.

Technical Specifications

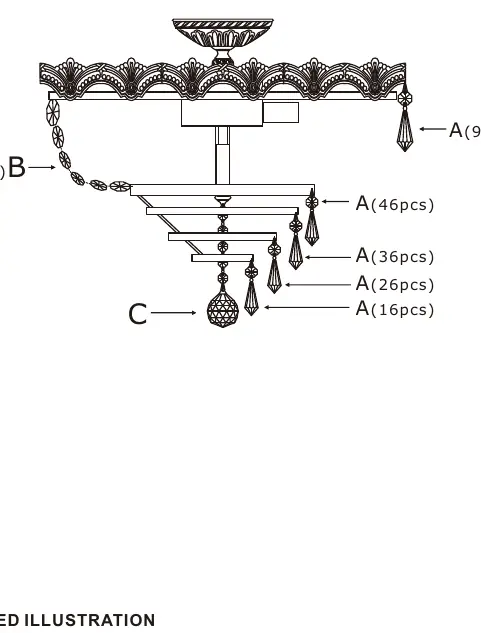

Crystal assembly diagram
Crystal assembly diagram
  • Model: 1485-HB-CL-MWP
  • Dimensions: 21.5 inches in diameter, 19 inches in height
  • Bulb Requirements: 5 x Candelabra base bulbs (40W recommended, 60W maximum). LED bulbs are highly recommended for extended use and energy efficiency.
  • Crystal Sets: Includes three distinct crystal sets (A, B, and C) to be applied in alphabetical order for the correct aesthetic finish.

Safety Information

Warning: All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and local regulations. Always turn off the power at the circuit breaker before beginning installation. This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.

Installation and Assembly

Before beginning, perform a complete inventory of all parts and components listed in the manual. Securely attach the fixture to the outlet box, then install the bobeches and bulbs before connecting the power. Once the fixture is mounted, proceed to dress it with the provided crystals. It is critical to apply the crystal sets in alphabetical order, starting with the pocket labeled (A) to ensure the correct pattern and balance.

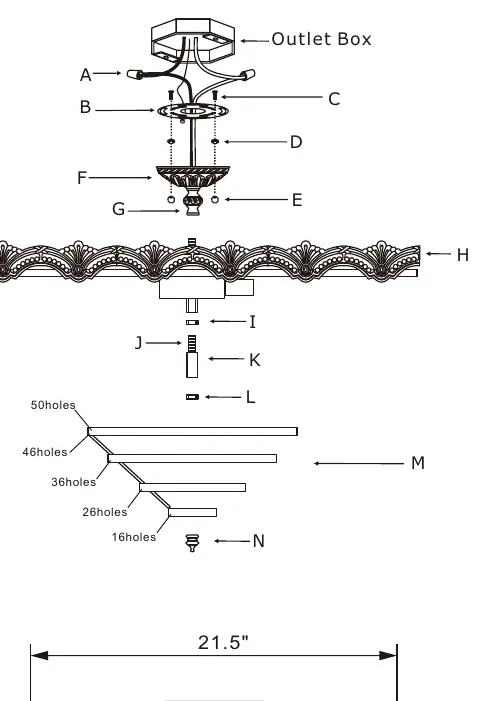

Exploded view of fixture components
Exploded view of fixture components

Maintenance and Care

To maintain the brilliance of the crystals, dust the fixture regularly with a soft, dry cloth. Avoid using harsh chemical cleaners, as they may damage the finish of the metal components or the clarity of the crystals. Ensure the power is off during any cleaning or maintenance procedures.
