Crystorama Majestic Three Light Ceiling Mount 1483-HB-CL-MWP

Product Overview

The Crystorama Majestic 1483-HB-CL-MWP is an elegant three-light ceiling mount fixture designed for indoor use. This fixture is dry-rated and features a decorative banding and a two-tier basket design that requires precise crystal assembly to achieve its intended aesthetic.

Safety Information

Warning: All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and local electrical codes. Always turn off the power at the circuit breaker before beginning installation. This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.

Installation and Assembly

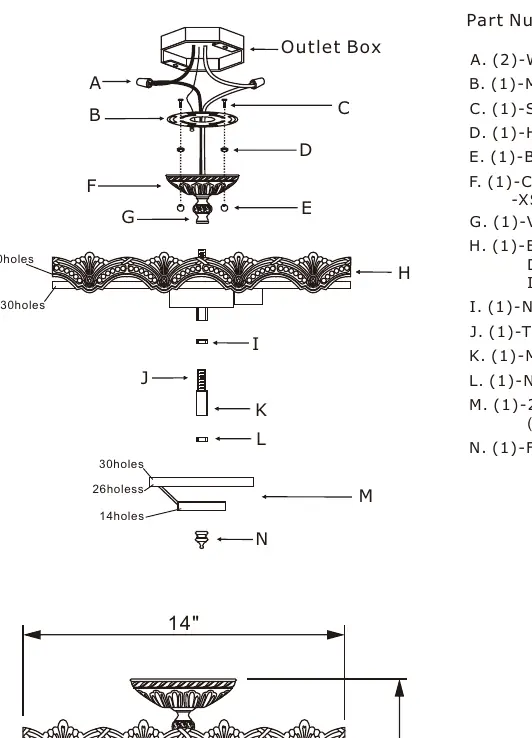

Before starting, perform a complete inventory of all parts and components. The installation process involves securing the mounting bar to the outlet box, attaching the canopy, and assembling the central structure using the provided metal tubes, nuts, and threaded components. Once the fixture is safely attached to the outlet box, install the bobeches and bulbs before proceeding to the crystal dressing process.

Crystal Dressing

The fixture requires careful application of crystal sets in alphabetical order to ensure correct placement:

• Set A: 100 sets, each consisting of one 14mm crystal and an AS2-1.5 inch piece.
• Set B: 30 sets, each consisting of a 26mm, 24mm, 20mm, 18mm, and 16mm crystal.
• Set C: 1 piece, consisting of two 14mm crystals and an AS8-40mm ball.

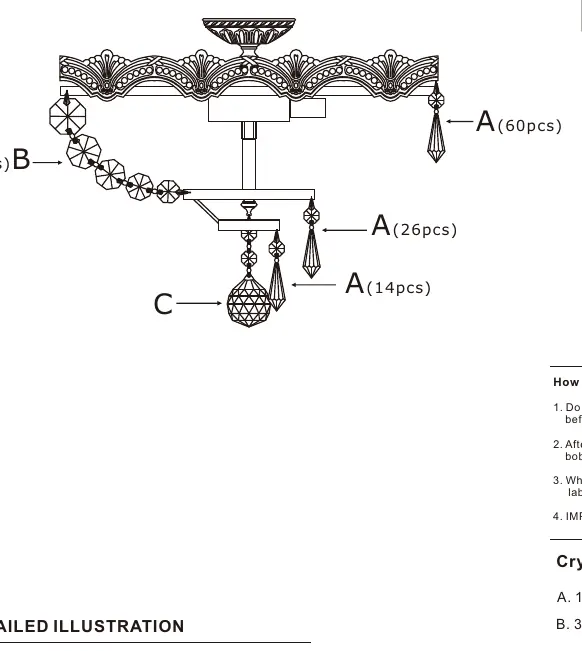

Follow the detailed illustration provided in the manual to match the crystal sets to the corresponding pin holes on the banding and the two-tier basket.

Technical Specifications

The fixture requires three Candelabra base bulbs. It is recommended to use 40-watt bulbs, with a maximum capacity of 60 watts per bulb. The use of LED bulbs is highly recommended for extended product life and energy efficiency. The assembled dimensions of the fixture are approximately 14 inches in width and 15 inches in height.

Maintenance and Care

To maintain the appearance of the fixture, ensure that all crystals are securely attached and periodically dust the components with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners on the metal or crystal surfaces. If any electrical issues arise, consult a licensed professional immediately.
