Daytona 2-Ton Floor Jack Cross Beam 64051 User Manual
Quick guide for the Daytona 2-Ton Floor Jack Cross Beam (64051). Includes assembly instructions, safety precautions, operation steps, and compatibility details.
Quick answers from the manual
Quick answer
- The Daytona 64051 is a 2-Ton Cross Beam accessory for floor jacks, designed to provide stable lifting points for vehicles. It has a 4,000 lb capacity and requires specific assembly steps depending on the floor jack model. p. 1, 2
Key actions
- Assemble the cross beam onto the floor jack saddle by removing the original saddle and securing the beam with the connection bolt. p. 2
- Always use jack stands to support the vehicle after lifting. p. 3
First start
- Remove the existing saddle from the floor jack, place the cross beam, and secure it with the connection bolt (using the spacer if required for your specific 3T model). p. 2
Problems and fixes
Cross beam is not level
Adjust the Saddle Pads to keep the bar level during lifting.
p. 2, 3Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Rated Capacity | 4,000 lb | Maximum load capacity | p. 2 |
Where to find it in the PDF
- Safety and Assembly p. 1, 2
- Operation and Parts p. 3
Table of contents
Manual images
Click an image to enlargeImportant Information

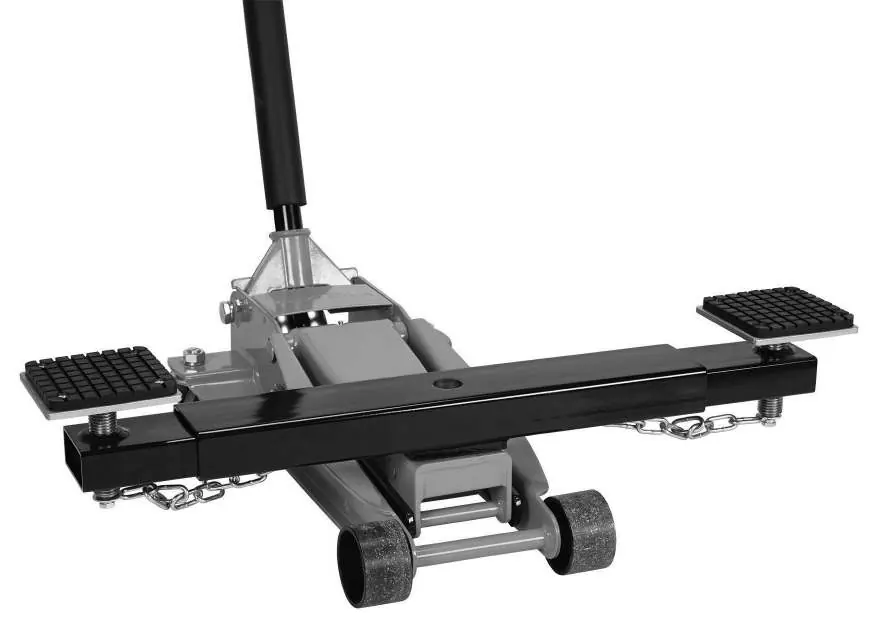

The Daytona 2-Ton Floor Jack Cross Beam (Model 64051) is an accessory designed to assist in lifting vehicles at manufacturer-recommended points. It has a rated capacity of 4,000 lb. Always read the safety instructions before use. This device is intended for lifting only; always support the vehicle with jack stands immediately after lifting.
Safety Information
- Rated Capacity: Do not exceed 4,000 lb.
- Compatibility: Use only with compatible Daytona and Pittsburgh Automobile floor jacks. Do not use with trolley-style jacks (e.g., 68783, 69306, 69468, 62117).
- Usage: Ensure the load is centered over the floor jack saddle. Always use the included safety chains to prevent overextension.
- Protection: Wear ANSI-approved safety goggles and heavy-duty work gloves during operation.
- Stability: Install and use aligned perpendicular to the floor jack body only.
Assembly Instructions
- Remove the Saddle Connection Bolt and Saddle from your floor jack.
- Place the Cross Beam onto the floor jack.
- Spacer Usage: For 3T low profile and 3T long reach Daytona or Pittsburgh jacks, slide the Spacer onto the Connection Bolt before installing. For all other 3T and 4T models, do not use the Spacer.
- Install the Cross Beam's Connection Bolt and tighten it securely, ensuring the beam remains aligned perpendicular to the floor jack body.
Operation Instructions
- Lower both Saddle Pads completely.
- Align each Saddle Pad under the vehicle's lifting points. Ensure the vehicle's weight is centered over the floor jack.
- Use the floor jack to raise the Cross Beam until the Saddle Pads are near the lifting points.
- Turn the Saddle Pads to adjust each one until they contact the lifting points.
- Slowly raise the vehicle to the desired height, ensuring the Cross Beam remains level.
- Place two Jack Stands at manufacturer-recommended support points and lower the vehicle onto them before working under the vehicle.
Parts List
The assembly includes the following key components: Beam, Extension Tubes, Saddles, Rubber Pads, Screws, Chain Washers, Flat Washers, Lock Washers, Bolts, Connection Bolt, and Spacer.
Practical help
Common problems
Cross beam does not fit or attach securely
Verify compatibility. This unit is not compatible with trolley-style jacks (e.g., 68783, 69306, 69468, 62117). Ensure the connection bolt is tightened securely.
Unsure if the spacer is required
Use the spacer only for 3T low profile and 3T long reach Daytona or Pittsburgh jacks. Do not use the spacer for other 3T or 4T models.
Before use
- Verify floor jack compatibility
- Inspect for loose or damaged parts
- Ensure load is centered over the floor jack saddle
- Wear ANSI-approved safety goggles and heavy-duty work gloves
- Confirm safety chains are properly connected
Specs in practice
- Rated Capacity
- 4,000 lb maximum weight limit for the cross beam.
Images and diagrams

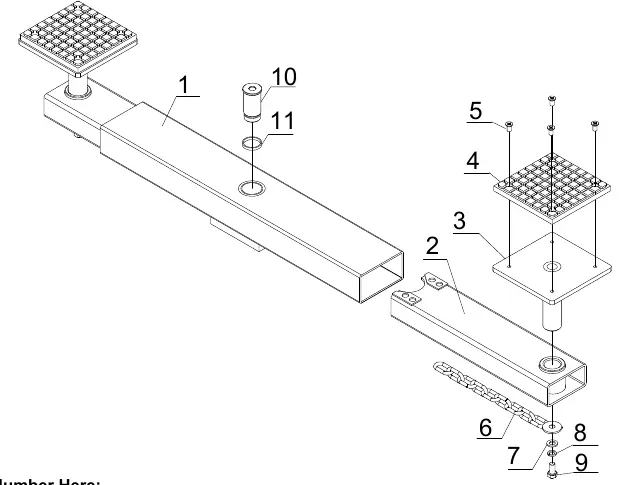

- The assembly diagram illustrates the connection of the beam, extension tubes, and saddle pads to the floor jack.
- Ensure the connection bolt (10) and spacer (11) are installed correctly based on your specific jack model.
Model compatibility
- Compatible with most Daytona and Pittsburgh Automobile floor jacks.
- Not compatible with trolley-style jacks.
