User Manual for VEVOR Floor Support Jacks
Comprehensive user guide for VEVOR floor support jacks. Includes safety precautions, step-by-step installation and adjustment instructions for various models, technical specifications, and maintenance tips.
Quick answers from the manual
Quick answer
- VEVOR floor support jacks are designed to provide adjustable support. Always place them vertically on a flat surface, ensure they are not overloaded, and use the appropriate model for your height and load requirements. p. 3, 4, 5, 6
Key actions
- Place the support rod vertically on a flat surface. p. 3, 4, 5, 6
- Insert all safety pins. p. 4, 6
First start
- Inspect the jack for any damage before use. p. 8
Problems and fixes
Shaking during use
Tighten the support seat (component 3) to prevent shaking.
p. 5Maintenance and reset
- Apply lubricating grease and rust-proof grease to the jack and store it in a dry and ventilated place. p. 8
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max loading | 2500lbs - 24700lbs | Maximum weight capacity depending on model | p. 7 |
Where to find it in the PDF
- Safety Instructions p. 3
- Model List p. 7
- Maintenance p. 8
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides instructions for the VEVOR Floor Support Jacks. These jacks are designed for structural support and must be used on flat, stable surfaces. Strictly avoid using these jacks on uneven or sloping ground. Always select the correct model based on your specific load-bearing and height requirements.
Safety Instructions
- It is strictly prohibited to place support rods on uneven, sloping roads or platforms.
- Use the jack only according to its calibrated load capacity; overloading is strictly prohibited.
- Always observe the placement during use and prioritize personal safety.
- Ensure all safety pins are inserted correctly before applying load.
Instructions for Use
The installation and adjustment steps vary by model. Please identify your model number from the product label.

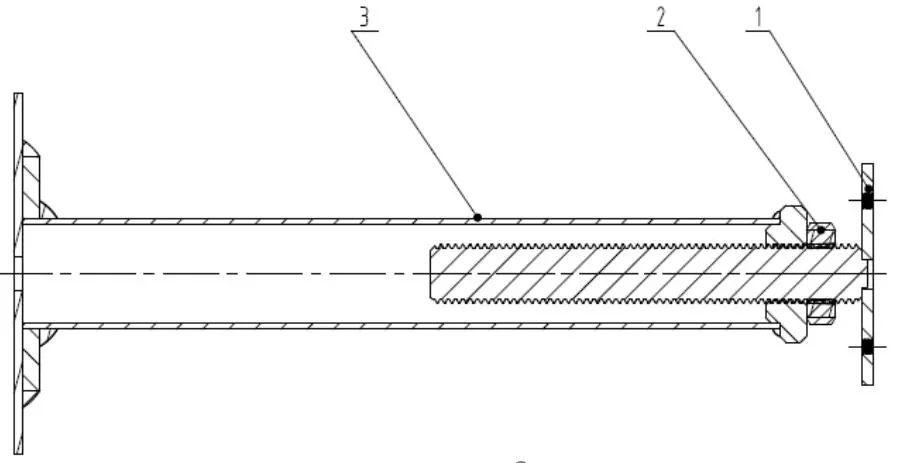

Model 204A-0040-00-00
- Place the support rod vertically on a flat surface.
- Rotate the height adjusting assembly (1) to the desired height.
- Lock the hexagonal nut (2) clockwise onto the plane of the support seat (3).

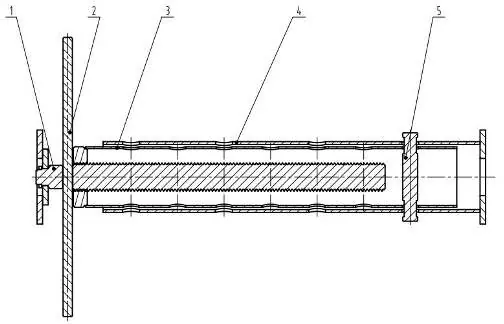

Models 204A-0080-00-00, 204A-0080-01-00, 204A-0080-02-00
- Place the support rod vertically on a flat surface.
- Insert the inner cylinder support group (1) into the support seat (4).
- Adjust to the required height and insert the safety pin (5) to fix it.
- Use the handle rocker (2) to screw out the height adjusting assembly (1) clockwise to the desired position.
Models 204A-0045-00-00, 204A-0045-01-00, 204A-0110-00-00
- Place the support rod vertically on a flat surface.
- Use the handle rocker (2) to adjust the height adjusting assembly (1).
- Tighten the support seat (3) to prevent shaking.

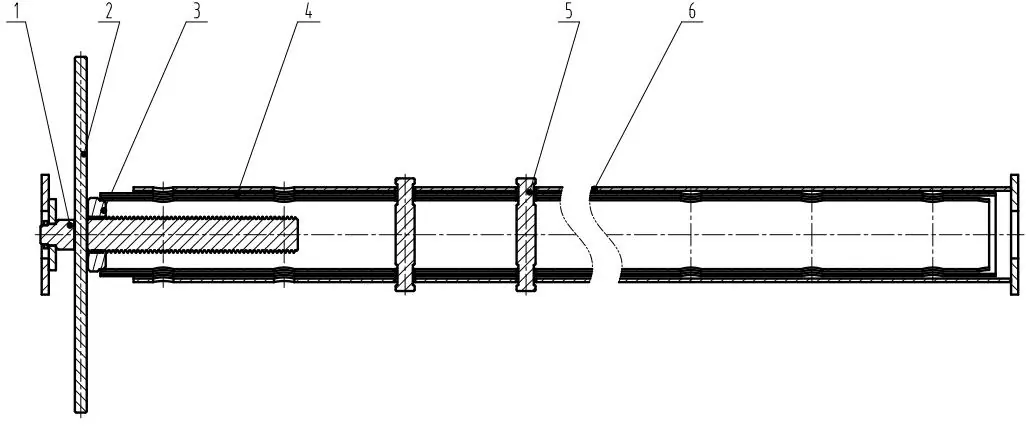

Model 204A-0050-00-00
- Place the support rod vertically on a flat surface.
- Insert the outer cylinder support seat (4) into the support seat (6), adjust height, and insert safety pin (5).
- Insert the inner cylinder support group (3) into the outer cylinder support seat (4), adjust height, and insert safety pin (5).
- Use the handle rocker (2) to screw out the height adjusting assembly (1) clockwise to the desired position.
Model Specifications
Refer to the model list in the PDF for specific load capacities and adjustable height ranges for each model (e.g., 204A-0040-00-00 supports 2500lbs, while 204A-0110-00-00 supports 24700lbs).
Maintenance and Upkeep
- Inspection: After use, carefully inspect all components for damage and test performance. Repair any abnormalities immediately.
- Cleaning: Wipe the surface clean to prevent debris from causing corrosion. Remove any rust spots to avoid structural damage.
- Storage: Apply lubricating grease and rust-proof grease to the jack. Store in a dry and ventilated place.
Manufacturer information
VEVOR
Practical help
Common problems
Product shaking during use
Ensure the support seat (component 3) is tightened properly.
Rust spots on components
Remove rust spots immediately to prevent further damage and apply rust-proof grease.
Overloading
Strictly adhere to the calibrated load capacity for your specific model.
Before use
- Ensure the surface is flat and not inclined.
- Verify the jack model is suitable for the load and height requirements.
- Inspect all components for damage.
- Ensure all safety pins are inserted (where applicable).
Specs in practice
- Adjustable size
- The height range the jack can support.
- Outer pipe diameter
- The physical dimension of the support pipe.
Images and diagrams
- Component 1: Height adjusting assembly
- Component 2: Handle rocker
- Component 3: Support seat/Inner cylinder support
- Component 5: Safety pin
Model compatibility
- Do not use on uneven or sloping surfaces.
- Choose the correct model based on load and height requirements.
Manual page author
David Miller
Documentation analyst
Organizes user manual content into clear summaries, with attention to model details, product context, and everyday usability.
