Delta Charmaine 19962TZ-SD-DST Faucet Parts Guide

A comprehensive parts identification and replacement guide for the Delta Charmaine 19962TZ-SD-DST kitchen faucet, including solenoid, battery box, and mounting hardware details.

Table of contents

Quick guide from the manual

This document serves as an official parts breakdown for the Delta Charmaine 19962TZ-SD-DST kitchen faucet. It is intended for identifying specific replacement components, including electronic solenoid parts, battery power systems, and standard mechanical faucet hardware. Use the provided part numbers when ordering replacements to ensure compatibility with your specific finish.

Faucet components and assembly

The faucet consists of several integrated systems. The main body includes the cartridge assembly (RP74836), bonnet nut (RP80619), and handle assembly (RP82233). The spray head (RP93631) is connected via a hose assembly (RP62057) secured with a clip (RP60911) and weighted by a steel assembly (RP80523). The base is sealed with an indicator base assembly and gasket (RP64075).

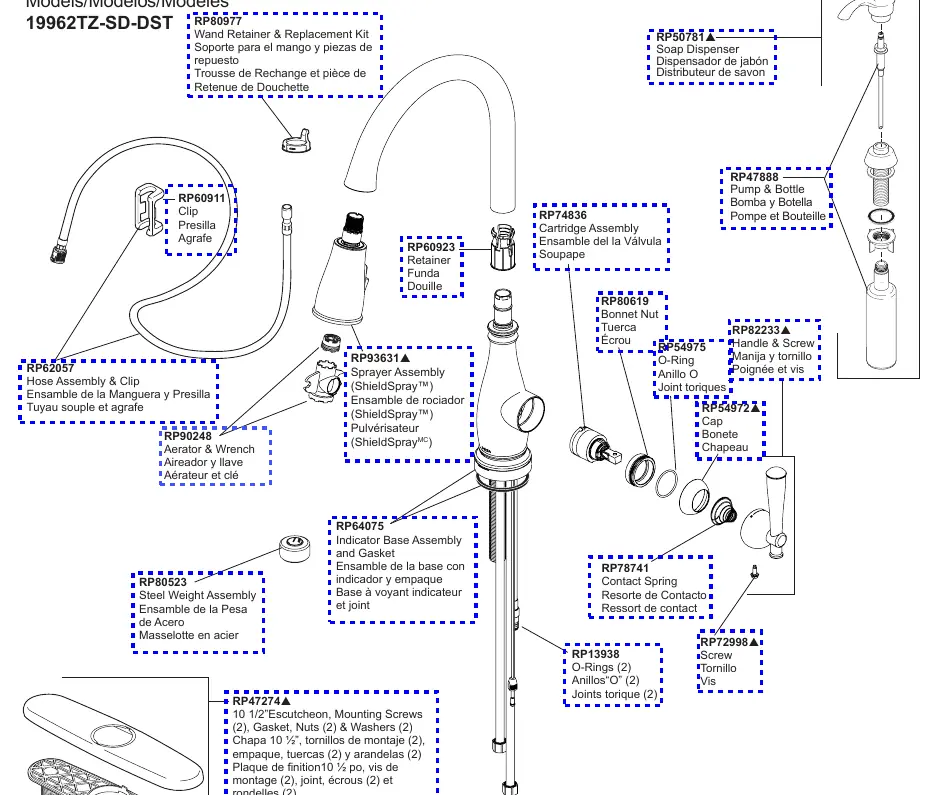

Exploded view of the Delta Charmaine faucet components, including the sprayer assembly, cartridge, handle, and mounting hardware.

Electronic and power systems

The faucet features an electronic solenoid assembly (EP92546) which varies by finish (standard vs. XX suffix). Power is supplied via a battery box (RP78389) or an optional 9-volt power supply (EP102157). The system includes a filter (RP93410) and O-rings (RP13938) to maintain a watertight seal within the electronic housing.

Mounting and installation hardware

The faucet is secured to the sink using a mounting bracket assembly (RP92714) and a 10 1/2-inch escutcheon plate (RP47274) which includes mounting screws, gaskets, and washers. Plastic sleeves (RP50952) are provided for custom-fit tubing connections.

Optional accessories

Additional components available for purchase include various adapters (RP63263, RP63264, RP63265) for different thread sizes (3/8-24 UNEF to 1/2-20 UN or 1/2-14 NPSM) and check valves (RP53468) to prevent backflow.

Practical help

Common problems

Incompatible solenoid replacement

Ensure you order the correct part number based on your faucet finish. Use EP92546 for CZ, PC, SS, AR, and KS finishes; use EP92546XX for BL, MW, RB, and SP finishes.

Leaking at connection points

Check the condition of O-rings (RP13938) and inlet gaskets (RP51243). Replace if worn or damaged.

Before use

Verify the faucet model number (19962TZ-SD-DST) matches your unit.
Identify the specific finish of your faucet before ordering replacement parts.
Ensure the battery box is correctly connected if the electronic features are not responding.
Check that the filter (RP93410) is clean if water flow is restricted.

Images and diagrams

The exploded view shows the hierarchy of the handle, cartridge, and bonnet nut assembly.
The electronic section highlights the solenoid, battery box, and filter placement.
The mounting section details the sequence of the escutcheon, gasket, and mounting bracket.

Model compatibility

Adapters RP63263, RP63264, and RP63265 are available for connecting to different plumbing thread standards.
The 9-volt power supply (EP102157) is an optional accessory and not included with the standard faucet kit.
