Parts Diagram for Delta 19893Z-SD-DST Kitchen Faucet
A comprehensive parts breakdown and replacement guide for the Delta 19893Z-SD-DST kitchen faucet, including identification of internal components, mounting hardware, and optional accessories.
Table of contents
Quick guide from the manual
This document serves as an official parts identification diagram for the Delta 19893Z-SD-DST kitchen faucet. It is intended for users looking to identify specific components for maintenance, repair, or replacement. The diagram illustrates the assembly of the faucet, including the handle, cartridge, hose, and mounting hardware.
Device components and assembly
The faucet assembly consists of several key sub-assemblies and individual parts:
- Handle and Cartridge: Includes the handle (RP103795), set screw, cap (RP54972), bonnet nut (RP80619), and the main cartridge assembly (RP73000).
- Wand and Hose: Features the wand assembly (RP100546), 62-inch hose assembly (RP62057), wand retainer (RP80977), and steel weight assembly (RP80523) to ensure proper retraction.
- Mounting Hardware: Includes the escutcheon plate, nuts, and gasket (RP47274), mounting nut assembly (RP92714), spacer (RP100167), and inlet gaskets (RP51243).
- Aerator: The aerator and wrench (RP90248) are provided for maintenance of the water flow.
Optional accessories
The following accessories are compatible with this model and may be purchased separately:
- Soap Dispenser: Complete pump and bottle assembly (RP50781).
- Adapters: Various adapter kits (RP63263, RP63264, RP63265) are available for specific plumbing connection requirements (3/8-24 UNEF to 1/2-20 UN or 1/2-14 NPSM).
Practical help
Common problems
Faucet wand does not retract properly
Check the position of the steel weight assembly (RP80523) on the hose to ensure it is not obstructed.
Low water flow
Inspect the aerator (RP90248) for debris and clean or replace if necessary using the provided wrench.
Before use
- Verify the model number 19893Z-SD-DST matches your unit.
- Ensure all mounting hardware (RP92714, RP47274) is tightened securely.
- Check that inlet gaskets (RP51243) are properly seated to prevent leaks.
- Confirm the hose clip (RP60911) is securely attached to the wand assembly.
Specs in practice
- Adapter Types
- Various adapters available for 3/8-24 UNEF to 1/2-20 UN or 1/2-14 NPSM connections.
Images and diagrams

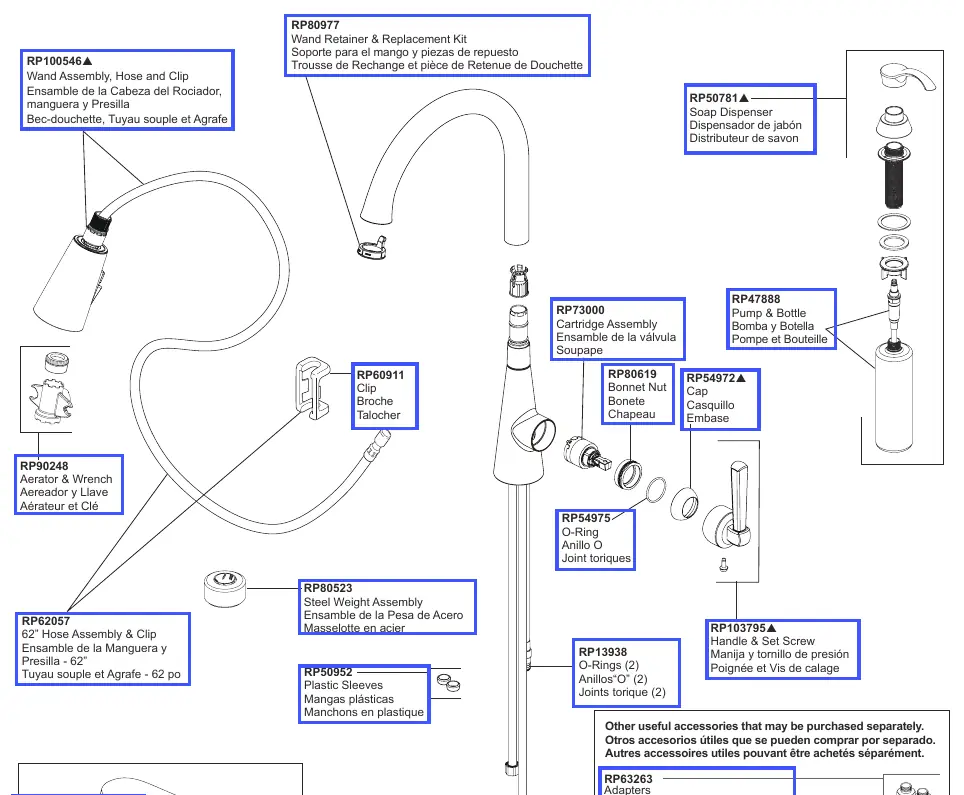

- The diagram shows the exploded view of the faucet from the handle down to the mounting base.
- Arrows indicate the connection points for the hose, weight, and wand assembly.
- The right side of the diagram details the cartridge and bonnet nut assembly.
Model compatibility
- Soap dispenser (RP50781) is an optional accessory.
- Adapter kits (RP63263, RP63264, RP63265) are required only if your supply lines do not match the standard faucet connections.
