Dualit 10L Soup Kettle User Manual
Quick guide for the Dualit 10L Soup Kettle. Learn how to assemble, operate, clean, and maintain your commercial soup kettle safely.
Table of contents
Quick Guide from the Manual
The Dualit 10L Soup Kettle is designed for commercial use to keep pre-heated food warm. It operates using a wet heat method, which requires water to be added between the inner and outer liner. Never operate the unit empty, as this poses a fire risk. Always ensure the unit is placed on a level surface and kept at least 200mm away from walls or cupboards.

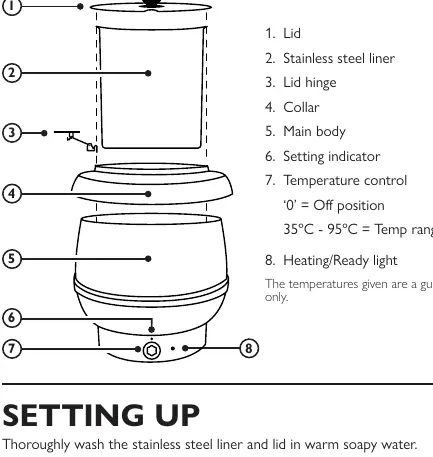

Know Your Soup Kettle
The appliance consists of the following main components:
- Lid
- Stainless steel liner
- Lid hinge
- Collar
- Main body
- Setting indicator
- Temperature control (0 = Off, 35ºC - 95ºC range)
- Heating/Ready light
Setting Up
Follow these steps to prepare your soup kettle for use:
- Wash the stainless steel liner and lid in warm soapy water.
- Place the collar on top of the main body.
- Insert the stainless steel liner into the main body.
- Add a minimum of 300ml and a maximum of 600ml of water between the stainless steel liner and the internal aluminium container.
- Plug the unit into a suitable electrical socket.
- Carefully add your already heated food items into the stainless steel liner.
- Rotate the temperature knob clockwise to the desired setting. The heating light will illuminate.
Operation and Safety
Important usage guidelines:
- Water Level: Check the water level every 15 minutes. Refill as necessary to ensure it stays between the minimum and maximum marks. Do not let the water evaporate.
- Temperature: Always operate at the lowest possible temperature to minimize electricity costs.
- Lid: Keep the removable hinged lid attached and in the closed position when not serving.
- Moving: Never move or carry the kettle when it is switched on or contains food.
- Switching Off: Turn the dial to '0' and unplug from the wall socket.
Cleaning & Care
Before cleaning, switch off the unit, unplug it, and allow it to cool down completely. Do not let the main body, flex, or plug get wet. Wipe the exterior with a soft, moist cloth and dry it. The stainless steel bain-marie and lid are machine washable. Do not use a high-pressure jet to clean the soup kettle.
Guarantee
This product comes with a 1-year guarantee covering parts and labour. It applies to products sold and located in mainland Great Britain. The guarantee does not cover defects caused by misuse, failure to follow instructions, or unauthorized modifications. For support, contact the Dualit customer helpline at +44 (0)1293 652 500 or email [email protected].
Manufacturer information
Dualit
Practical help
Common problems
New smell on first use
This is normal and will dissipate after a few uses.
Water level low
Check every 15 minutes and refill to maintain between 300ml and 600ml.
Unit not heating
Ensure the temperature dial is set correctly and the unit is plugged into a functional socket.
Before use
- Remove all packaging.
- Ensure the unit is on a level, open surface.
- Check that the voltage matches your mains supply.
- Wash the stainless steel liner and lid in warm soapy water.
- Ensure the unit is at least 200mm clear from overhanging cupboards and walls.
Specs in practice
- Wet heat operation
- Requires 300-600ml of water between the inner and outer liner to function.
- Temperature range
- 35ºC - 95ºC (temperatures are a guide only).
Images and diagrams
- 2. Stainless steel liner
- 6. Setting indicator
- 7. Temperature control
- 8. Heating/Ready light
Model compatibility
- For commercial use only.
- Not for continuous mass production of food.
- Not intended for household use by laymen.
